Installation
2023-05 D111XXXXXX | 05 61
Fig. 2: Spacing dimensions

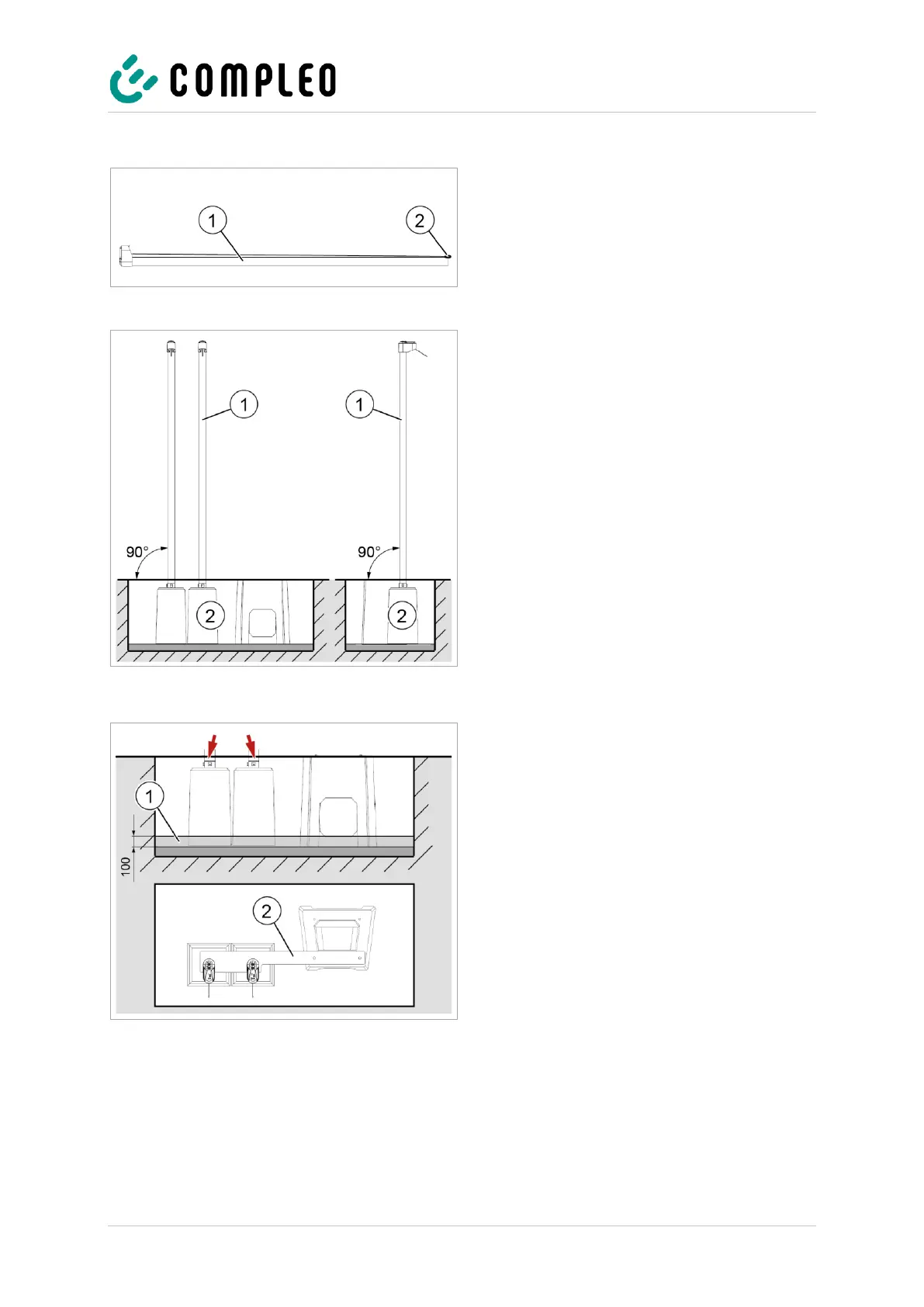

9. Carefully place CMS (1) on a suitable
surface.
10. Release carabiner (2).
Fig. 33: Preparing the CMS
11. Set up CMS (1) vertically.
12. Insert pipe from CMS into concrete base
(2).
Fig. 34: Inserting the CMS
13. Mount the positioning aid (2).
14. Fill the excavation pit by 100 mm with
excavated material (1).
15. Fill fine sand between pipes of concrete
base and CMS, see arrows.
Fig. 35: Mounting the positioning aid
