Operation
76 D111XXXXXX | 05 2023-05
30

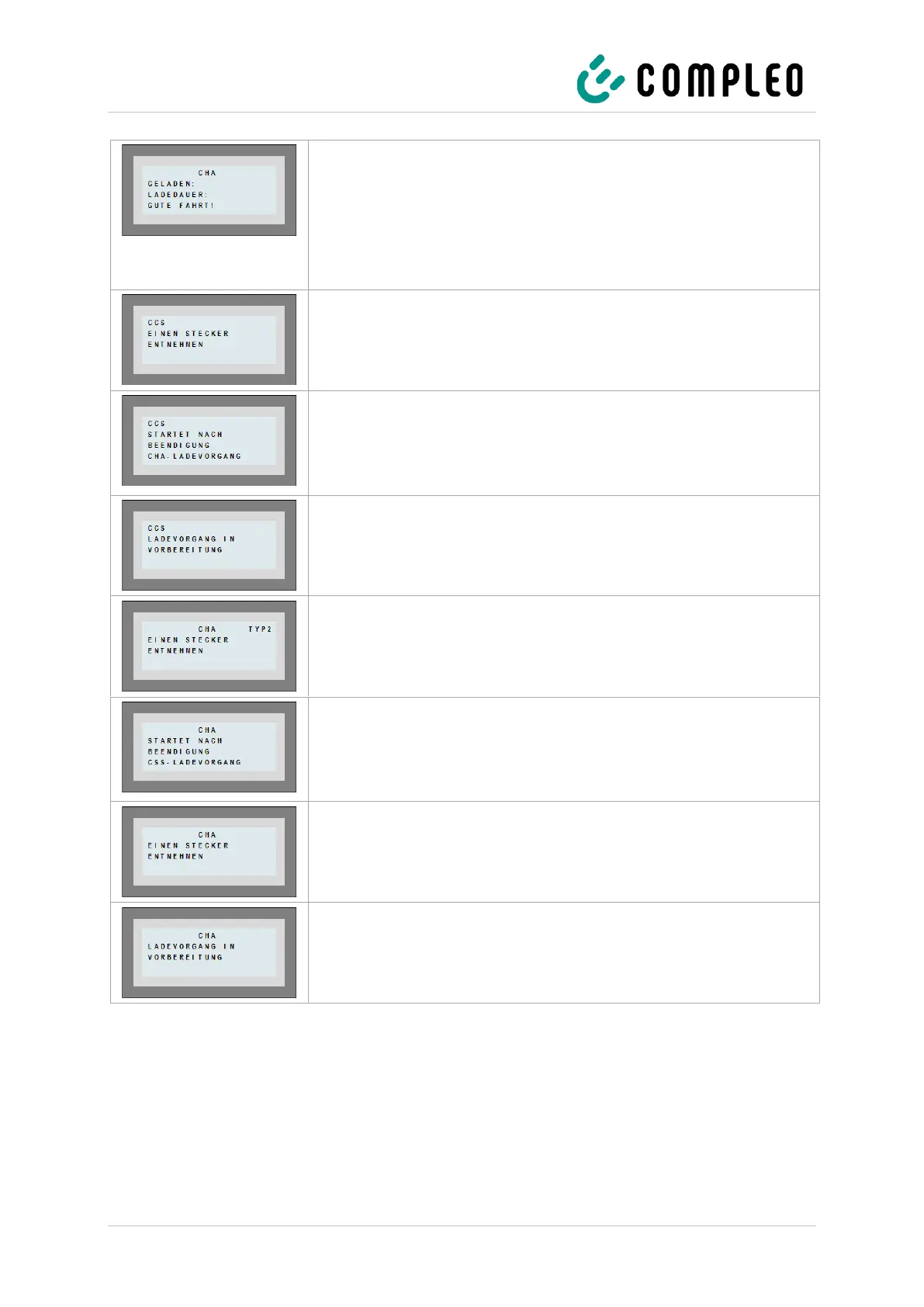

The charging system indicates the "CHA Charged: + Charging
duration
+ Have a good trip" state.
The charging process at the corresponding charger interface
is in progress. The charged capacity is displayed. The
charging duration is displayed. Have a good trip.
31
The charging system indicates the "CCS + Remove a plug" state.
A plug of the corresponding charger interface can be
removed.
32
The charging system indicates the "CCS + Starts after CHA
completed - Charging process" state.
The charging process at the corresponding charger interface
starts after the parallel DC charging process is completed.
33
The charging system indicates the "CCS Preparing charging
process" state.
The charging process is in preparation and will start soon.
34
The charging system indicates the "CHA - Type 2 + Remove a plug"
state.
A plug of any charger interface can be removed.
35
The charging system indicates the "CHA + Starts after CSS
completed - Charging process" state.
The charging process at the corresponding charger interface
starts after the parallel DC charging process is completed.
36
The charging system indicates the "CHA + Remove a plug" state.
A plug of the corresponding charger interface can be
removed.
37
The charging system indicates the "CHA Preparing charging
process" state.
The charging process is in preparation and will start soon.
