Figure A-11 shows the front panel displays after power has been turned off on
Converter #01. Note the ON LINE LED is lit on the BU. This indicates that the BU
is now providing the frequency translation in place of the faulted unit. Converter
#01 will not come back online until power is restored.

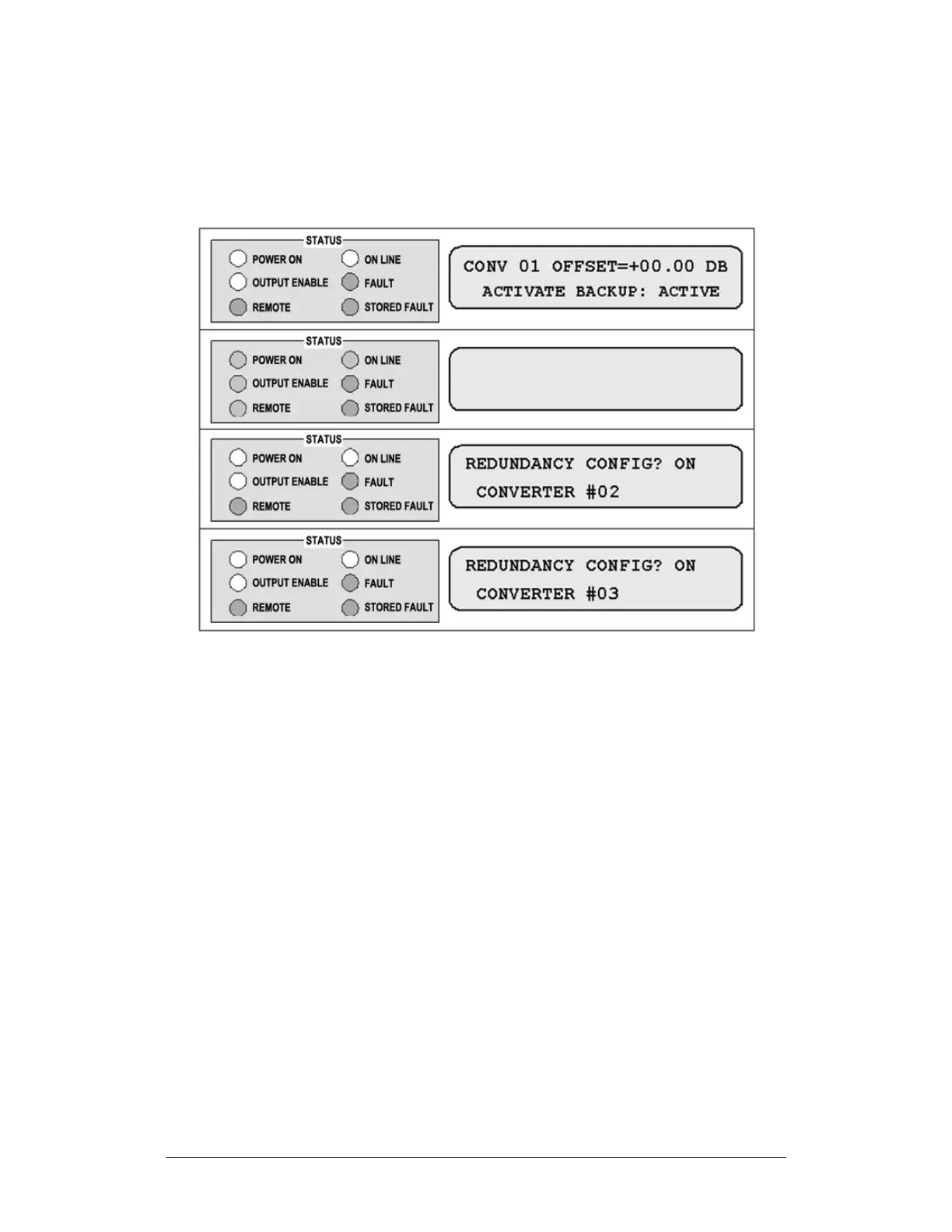

Figure A-11. Front Panel Example – Down Converter #01 Backup
