DT-4500 Series C- and Ku-Band Down Converters MN/DT4500.IOM
Appendix A Revision 2
A–13

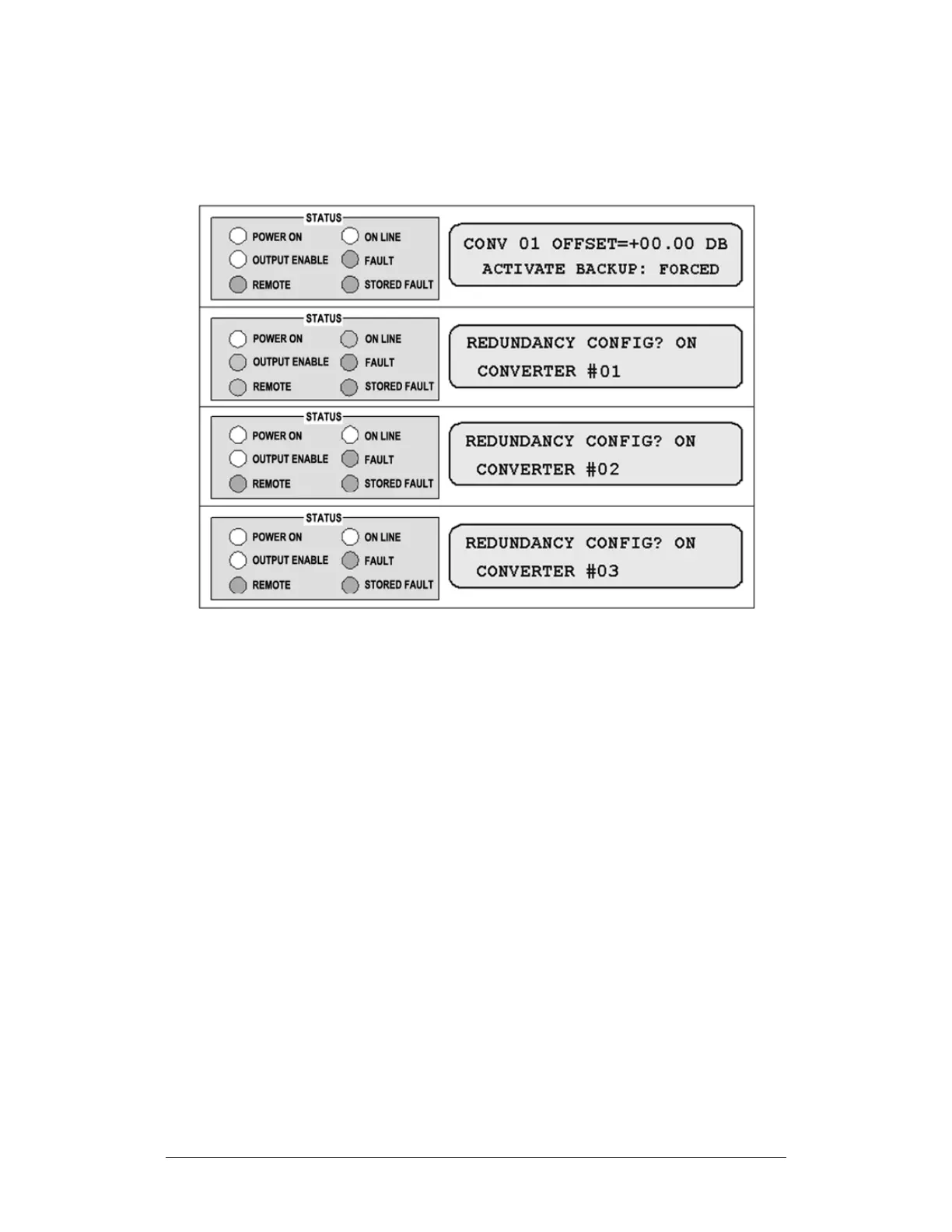

Figure A-13 shows the front panel displays after the BU forces Converter #01
offline. Note the ON LINE LED allows you to tell whether the BU is currently
active and which converter is being bypassed.
Figure A-13. Front Panel Example – Down Converter #01 Forced Backup
