LPOD Outdoor Amplifier / Block Up Converter Revision 9
System Connections, Installation and Startup MN-LPOD
2–4

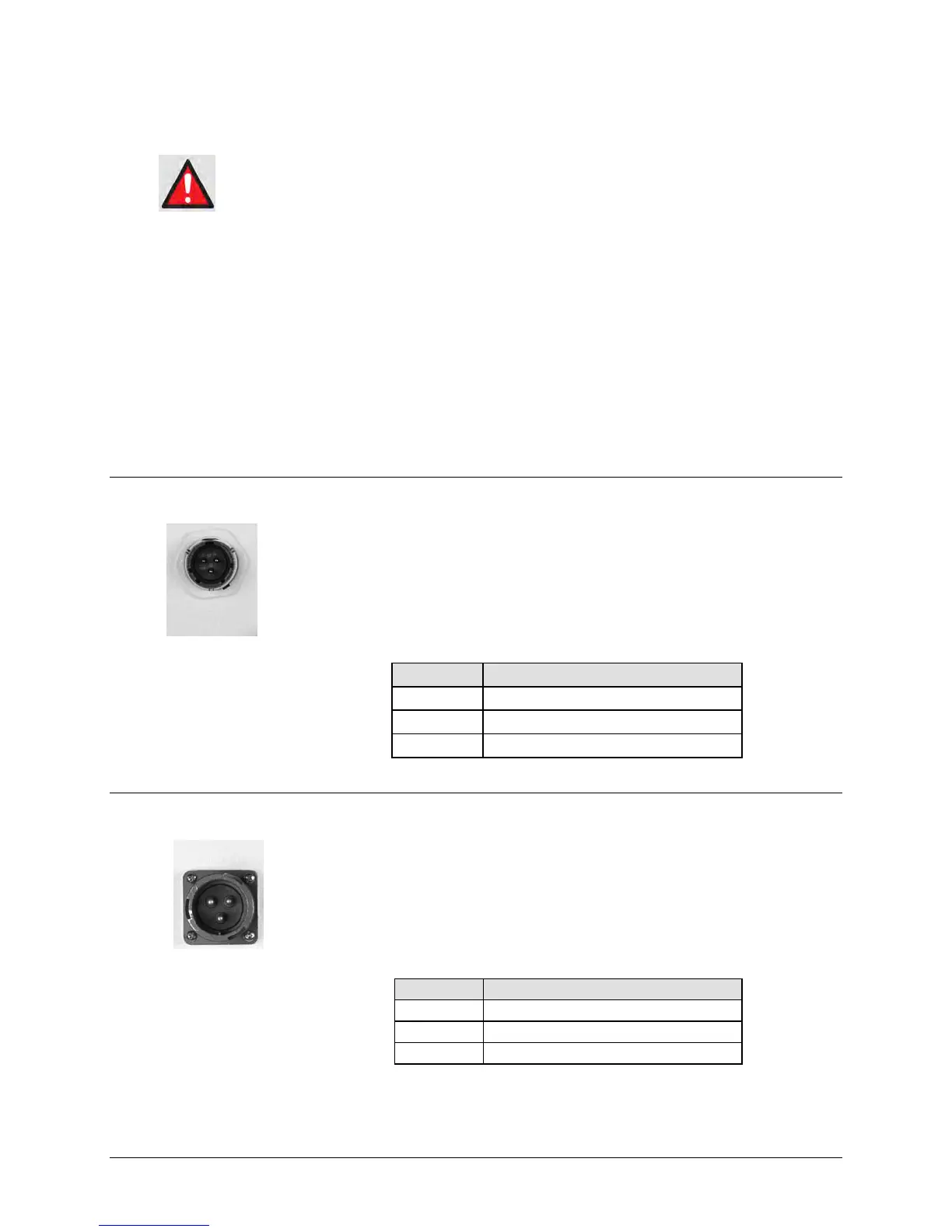

2.2.3 Connector ‘J3 | POWER IN’ (AC Power Mains)
FOR SAFETY REASONS, TAKE CARE TO NOTE THAT THE ‘J3’ AC POWER CONNECTION PIN
ASSIGNMENTS FOR EACH LPOD MODEL ARE NOT THE SAME. FAILURE TO CAREFULLY
REVIEW THE INFORMATION PROVIDED IN THE SECTIONS THAT FOLLOW MAY RESULT IN
PRODUCT DAMAGE OR PERSONAL INJURY.
For all LPOD models, the prime power input requirement is as follows:
• 90-264 VAC
• 47 to 63 Hz
• The power supply is power factor corrected. The total power required from the prime
power supply depends on the model used. Please refer to Sect. 1.5 Summary of
Specifications.
2.2.3.1 LPOD PS 1, PS 1.5 ‘J3 | POWER IN’ (AC Power Main)
The mating connector specification and pin assignments (Table 2-2) unique to the
LPOD PS 1 and PS 1.5 AC power interfaces are as follows:
Mating Connector: CEFD P/N CN/MS-STPG03F02 (ITT Cannon KPT06B-12-35).
Table 2-2. LPOD PS 1/PS 1.5 ‘J3 | POWER IN’ Pin Assignments
Pin Description
A LINE (L1)
B NEUTRAL (L2)
2.2.3.2 LPOD PS 2 ‘J3 | POWER IN’ (AC Power Main)
The mating connector specification and the pin assignments (Table 2-3) unique to
the LPOD PS 2 AC power interface are as follows:
Mating Connector: CEFD P/N CN/MS-STPG03F07 (Glenair ITS-3106F20-19SF7).
Table 2-3. LPOD PS 2 ‘J3 | POWER IN’ Pin Assignments
B NEUTRAL (L2)
