Comtech EF Data LPOD - Ethernet Interface Cable; Figure B-2. Ethernet Interface Cable (CEFD P;N CA-0000352, Part of KT-0000203)

To Next Page

To Previous Page

LPOD Outdoor Amplifier / Block Up Converter (BUC) Revision 9

Appendix B MN-LPOD

B-3

B.2.2 Ethernet Interface Cable

The Comtech EF Data Ethernet Utility Kit (CEFD P/N KT-0000203) includes the CA-0000352 Ethernet Interface Cable. This kit is optionally available to

provide Ethernet-based M&C of 1:1 Redundancy or Standalone LPOD applications using a Samsung NB30 Plus Netbook (LPODnet). The ‘P1’ circular

connector installs onto the Redundant Loop Cable ‘J1’ connector in 1:1 LPOD Redundant applications, or the ‘J6 | COM 1’ connector on a

Standalone LPOD. Use the ‘J2’ and ‘J3’ RJ-45 connectors to either connect directly to the LPODnet’s Ethernet network jack (for Standalone use) or

via a user-provided Ethernet switch or hub (for 1:1 Redundancy use).

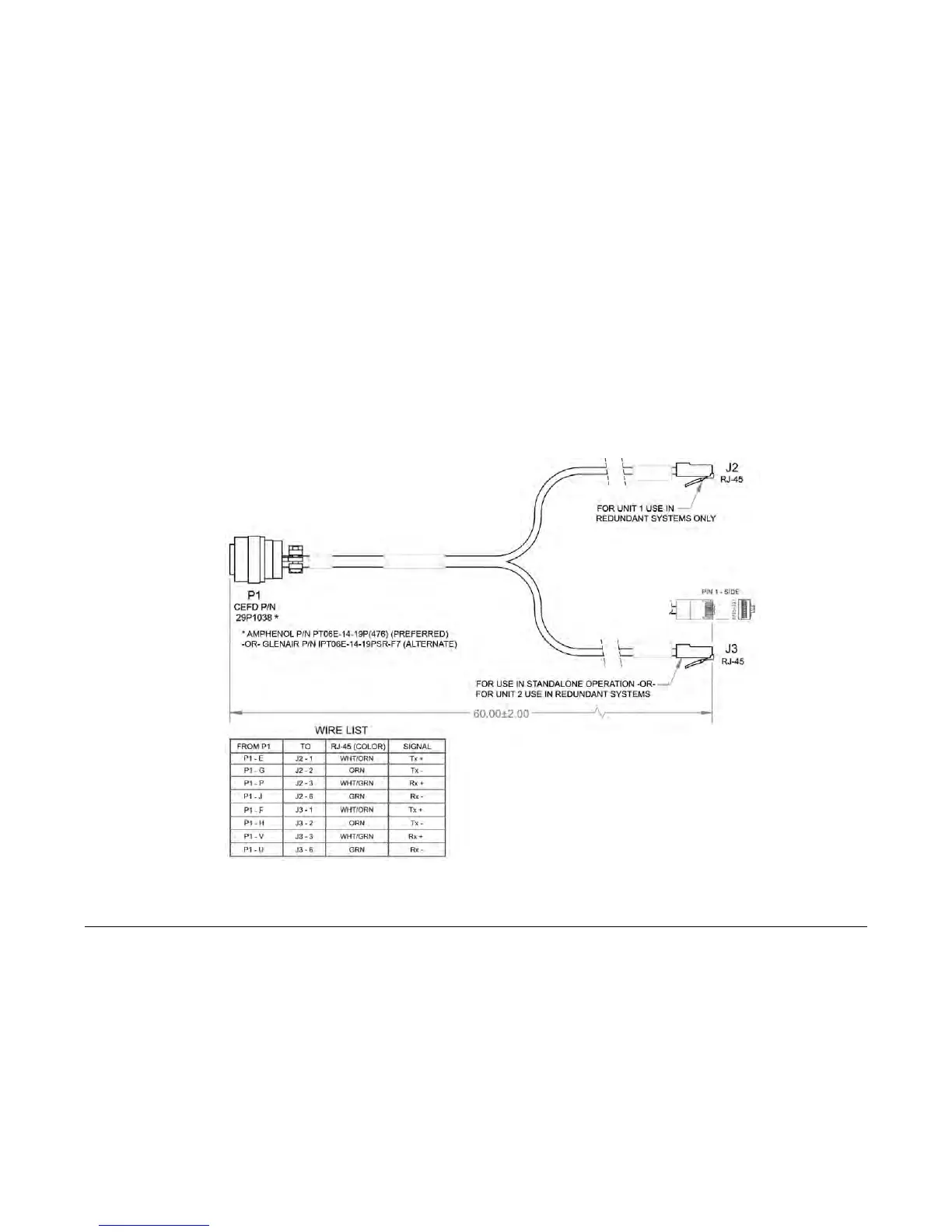

Figure B-2. Ethernet Interface Cable (CEFD P/N CA-0000352, part of KT-0000203)
