Comtech EF Data LPOD - 19-Pin COM Cable (100; Figure B-3. COM Cable, 100 (CEFD P;N CA-0000318)

To Next Page

To Previous Page

LPOD Outdoor Amplifier / Block Up Converter (BUC) Revision 9

Appendix B MN-LPOD

B-4

B.2.3 19-Pin COM Cable (100’)

This cable connects between your designated data interface and the Redundant Loop Cable’s ‘J1’ connector in 1:1 Redundancy applications, or

the ‘J6 | COM 1’ port on a Standalone LPOD.

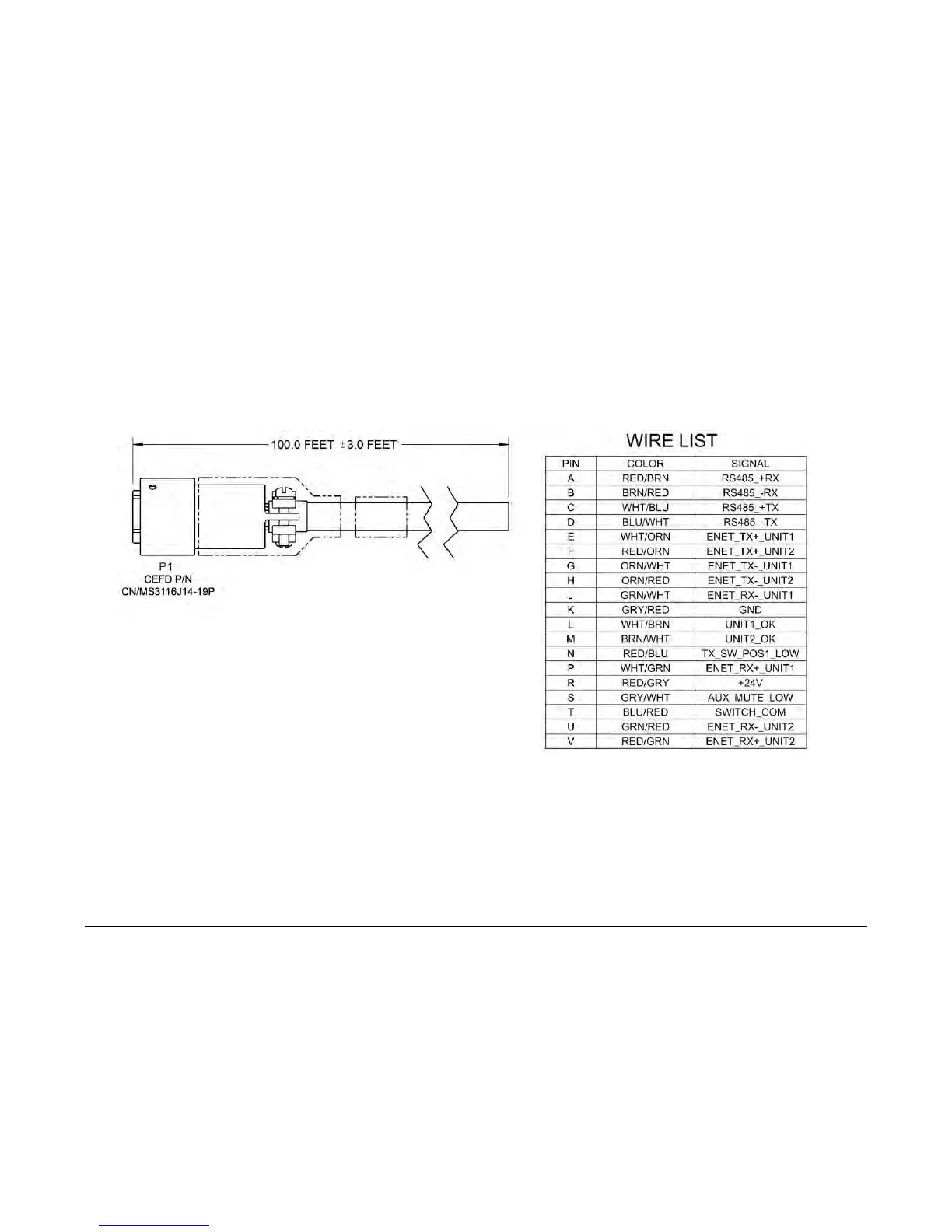

Figure B-3. COM Cable , 100’ (CEFD P/N CA-0000318)
