LPOD Outdoor Amplifier / Block Up Converter (BUC) Revision 9

Appendix B MN-LPOD

B-2

B.2.1 Serial Interface Cable

The Comtech EF Data CLC-10 Serial M&C Accessory Kit (CEFD P/N KT-0020518) includes the CA-0020526 Serial Interface Cable. This kit is optionally

available to provide serial-based monitor and control of 1:1 Redundancy or Standalone LPOD applications using the CLC-10 Comtech LPOD

Controller (a preconfigured Two Technologies, Inc. TechTerm Handheld Terminal). The circular connector installs onto the Redundant Loop Cable

‘J1’ connector in 1:1 LPOD Redundant applications, or the ‘J6 | COM 1’ connector on a Standalone LPOD. The RJ-11 connector plugs directly into the

CLC-10.

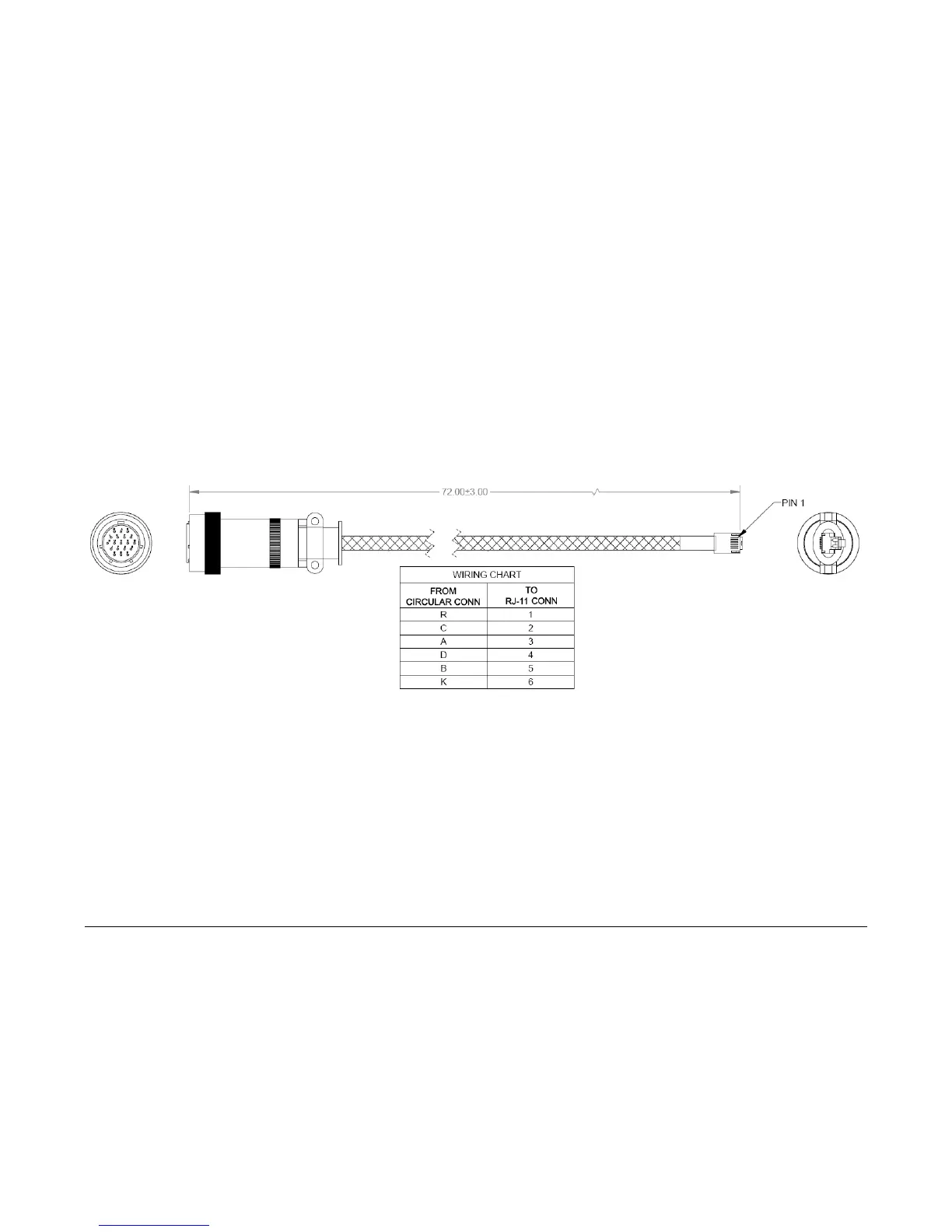

Figure B-1. Serial Interface Cable (CEFD P/N CA-0020526, part of KT-0020518)
