Comtech EF Data LPOD - RF Cable (Type N; Figure B-7. 1;4 Heliax Coaxial Cable (CA;3722-X)

LPOD Outdoor Amplifier / Block Up Converter (BUC) Revision 9
Appendix B MN-LPOD
B-9
B.3.1 RF Cable (Type ‘N’)
Use this Type ‘N’ cable for the Rx or Tx connections in LPOD Standalone or 1:1 Redundancy applications:
• For LPOD PS-1 C-Band and X-Band applications – For Standalone use, the cable connects the unit’s ‘J2 | RF OUT’ port directly to the your
Rx signal destination. For 1:1 Redundancy applications, use the cable to connect each LPOD’s ‘J2 | RF OUT’ port to the Tx Waveguide
switch.
• For all LPOD applications – For Standalone use, the cable connects directly from these LPOD interfaces to your Rx signal destination or Tx
signal source. For 1:1 Redundancy applications, use the cable to connect the ‘J1 | LBAND IN / Tx IN’ or ‘J10 | MODEM Rx’ ports in 1:1
Redundancy applications to the system’s respective signal splitters.

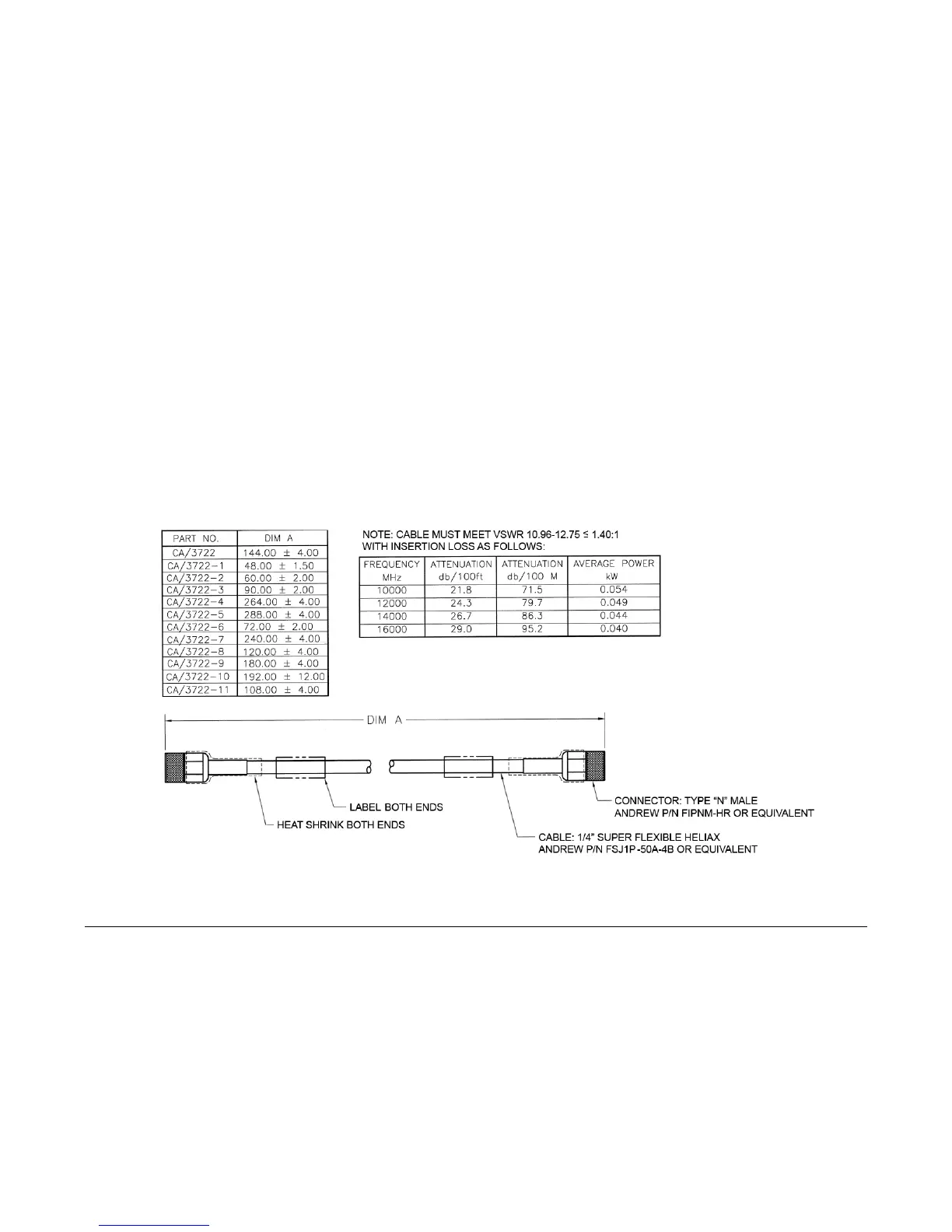

Figure B-7. 1/4" Heliax Coaxial Cable (CA/3722-X)
