LPOD Outdoor Amplifier / Block Up Converter Revision 9
System Connections, Installation and Startup MN-LPOD
2–5

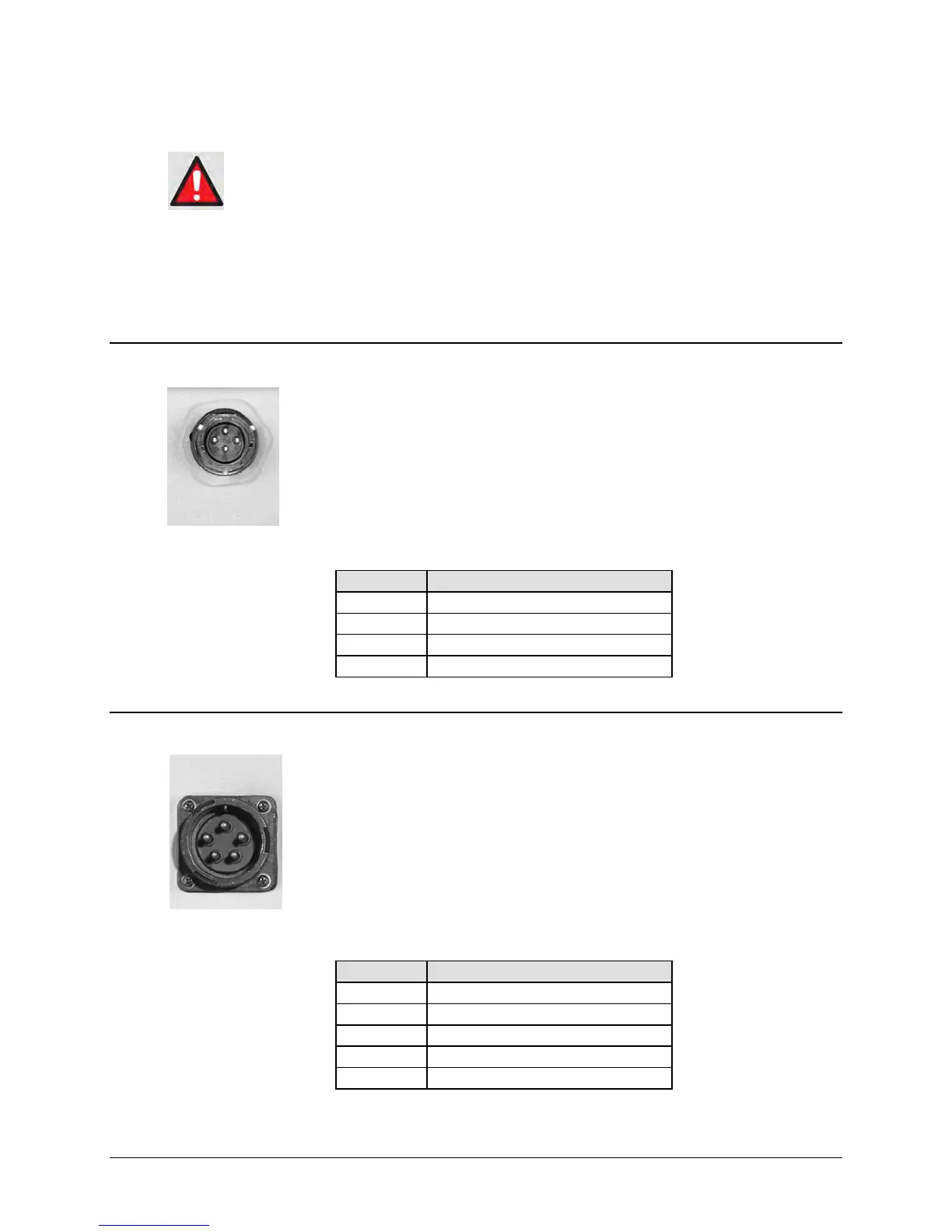

2.2.4 Connector ‘J3 | POWER IN’ (DC Power Mains)
FOR SAFETY REASONS, TAKE CARE TO NOTE THAT THE ‘J3’ DC POWER CONNECTION
PIN ASSIGNMENTS FOR EACH LPOD MODEL ARE NOT THE SAME. FAILURE TO
CAREFULLY REVIEW THE INFORMATION PROVIDED IN THE SECTIONS THAT FOLLOW
MAY RESULT IN PRODUCT DAMAGE OR PERSONAL INJURY.
For all LPOD models, the prime power input requirement is 38-72 VDC. The total power required
from the prime power supply depends on the model used. Please refer to Sect. 1.5 Summary of
Specifications.
2.2.4.1 LPOD PS 1 ‘J3 | POWER IN’ (DC Power Main)
The mating connector specification and the pin assignments (Table 2-4)
unique to the LPOD PS 1 DC power interface are as follows:
Mating Connector: CEFD P/N CN/STPG04F01 (Glenair IPT06E-12-4-SSR-F7).
Table 2-4. LPOD PS 1 ‘J3 | POWER IN’ Pin Assignments
Pin
LPOD PS 1 Assignment
A
V+
B
GND
C
V-
D NO CONNECT
2.2.4.2 LPOD PS 1.5 ‘J3 | POWER IN’ (DC Power Main)
The mating connector specification and the pin assignments (Table 2-5)
unique to the LPOD PS 1.5 DC power interface are as follows:
Mating Connector: CEFD P/N CN-0020517 (MS3116E-14-5S(476), Amphenol
PT06E-14-5S(476)).
Table 2-5. LPOD PS 1.5 ‘J3 | POWER IN’ Pin Assignments
Pin
LPOD PS 1.5 Assignment
A
+48V
B
+48V
C
-48V
D
-48V
E
GND
