LPOD Outdoor Amplifier / Block Up Converter Revision 9

System Connections, Installation and Startup MN-LPOD

2–10

PL/12319-1 Universal Pole Mounting Kit

ITEM

QTY

CEFD PART NO.

DESCRIPTION

1 1 N/A

BRACKET, UNISTRUT (SHOWN FOR CLARITY ONLY, INCLUDED IN

CEFD P/N FP/BR0078 BRACKET MODIFICATION POLE MOUNTING

KIT)

FP/BR0072

BRACKET, STRAP TENSIONER

FP/BR0070

BRACKET, STRAP-TERMINATION POLE MOUNTING KIT

FP/BR0071

BRACKET, 1-1/4 STRAP (TRIM LENGTH AS REQUIRED)

FP/BR0069

BRACKET, STRAP-FIXED, POLE MOUNTING KIT

HW/M8X1.25X25HEXSS

BOLT, HEXHEAD, M8X1.25X25, SS

HW/M8FLATSS

WASHER, FLAT, M8 SS, METRIC

HW/M8LOCKSS

LOCK WASHER, SPLIT, M8, SS, METRIC

9 2 HW/M8SPRINGNUT SPRINGNUT, M8X1.25

HW/M8X1.25MMHEXNUTSS

NUT, HEX M8X1.25X16MM, SS

HW/BLK-PIPE2-8

PIPE, BLOCK

This kit will accommodate a pole diameter (OD) of up to 13.00” (33.02 cm) maximum.

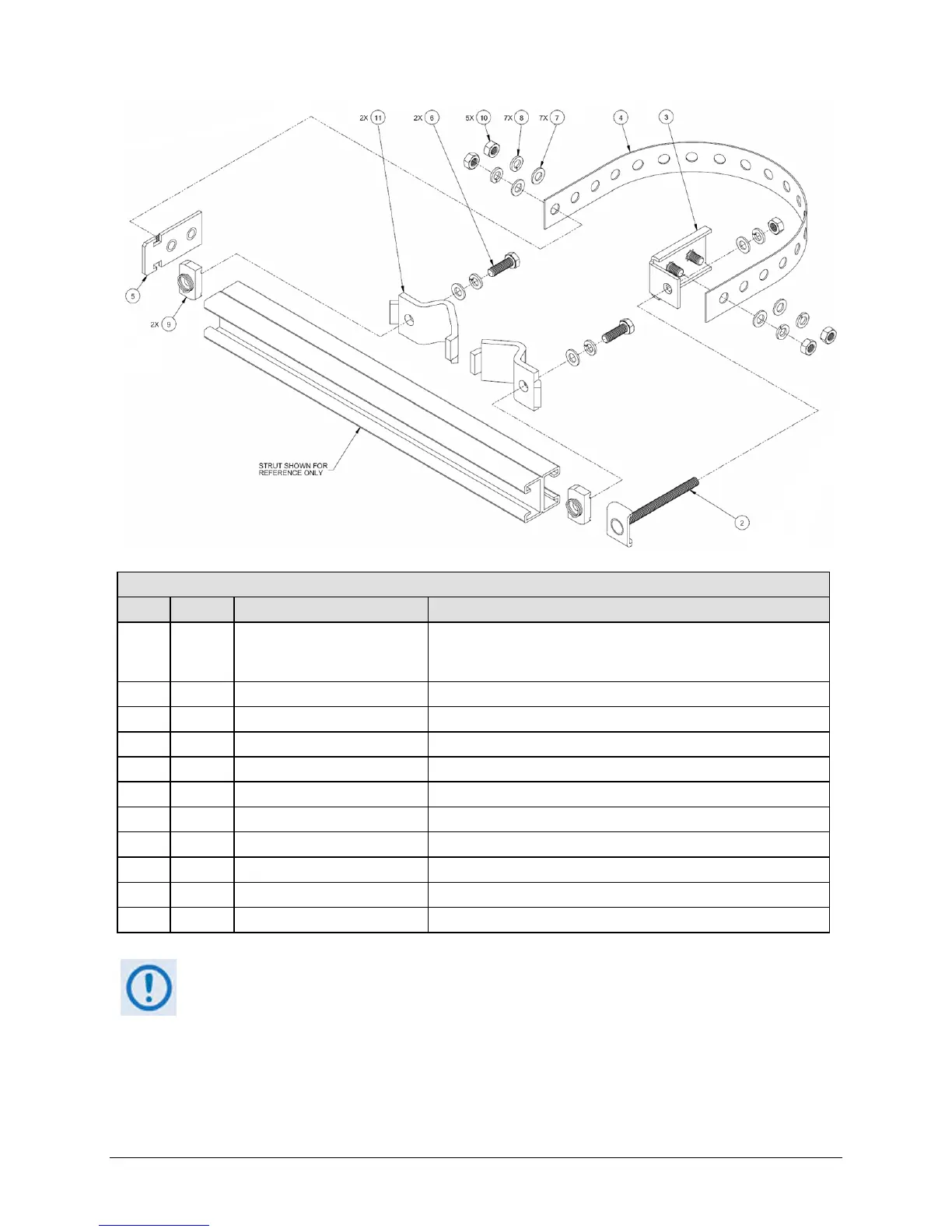

Figure 2-5. PL/12319-1 Universal Pole Mounting Kit
