7 Through-hole mounting plates
These should be manufactured locally, as per the following drawings, as they are not available through Control Techniques.
(Not available for Commander SE size 1 and 5; size 5 can be through-hole mounted as standard.)

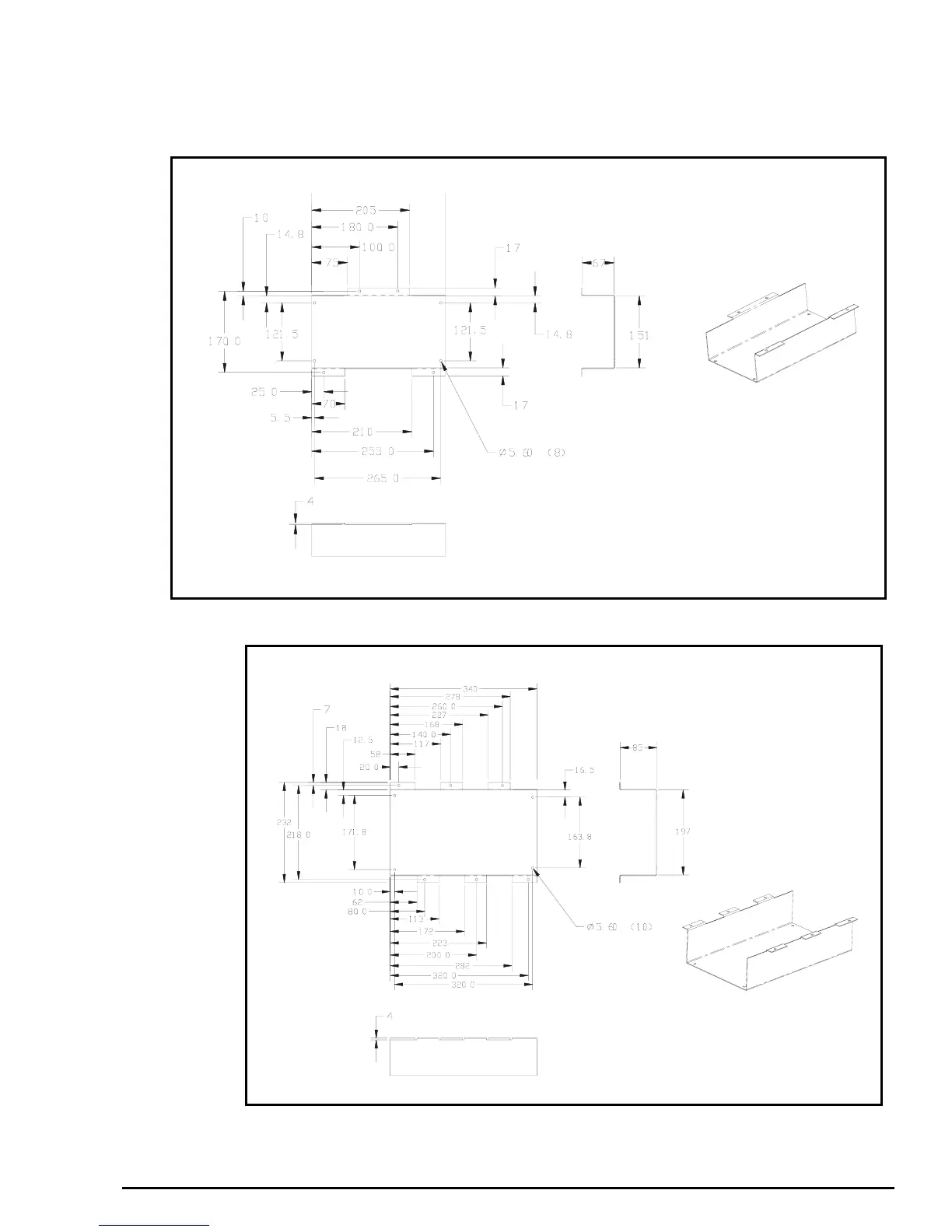

Figure 7-1 Commander SE Size 2
Figure 7-2 Commander SE Size 3
All dimensions in mm
All dimensions in mm
