8 Braking resistor brackets

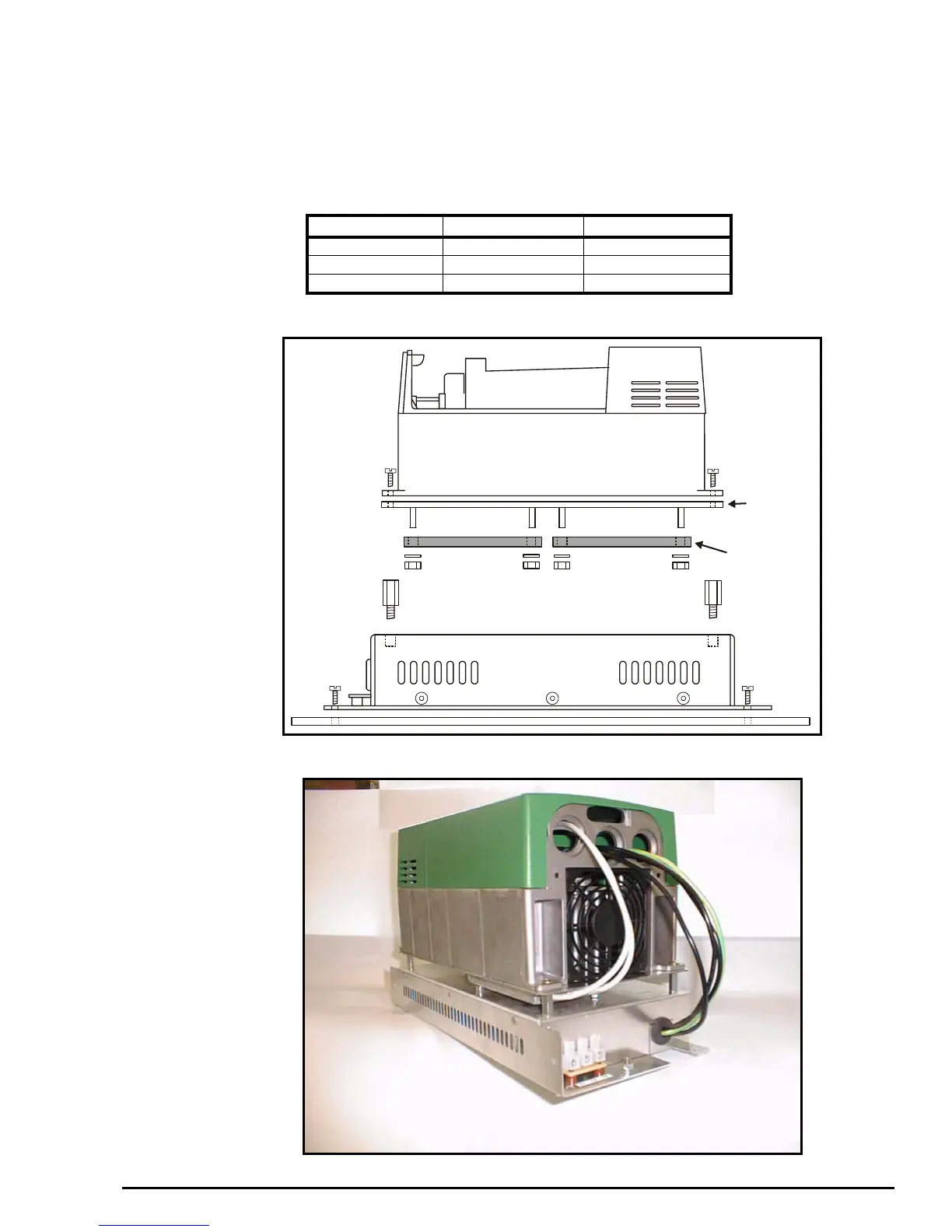

Dynamic braking resistor mounting brackets
Dynamic braking resistor mounting brackets are available as an option for Commander SE Sizes 2, 3 and 4. These allow the
SRF600 braking resistors to be mounted within the footprint of the drive and thus take up less cubicle space.
The brackets can either mount directly onto the cubicle backplate or if a Schaffner RFI filter is being used, between the filter
and the drive.
These brackets are supplied as a kit with all the appropriate nuts, washers and spacers etc.
.
*Not available for Commander SE sizes 1 and 5
Commander SE Sizes 2, 3 and 4.
Drive CT Part Number Schaffner Part Number
Commander SE Size 2 6500-0358 295-988
Commander SE Size 3 6500-0359 296-326
Commander SE Size 4 6500-0360 296-327
