Control Techniques COMMANDER SE User Manual

150 Commander SE Advanced User Guide
Issue Number: 4
11 RFI Filters
11.1 RFI Filter Dimensions
11.1.1 Commander SE standard and low earth leakage Footprint/ Side mounting RFI Filter:
4200-6102, 4200-6103, 4200-6201, 4200-6205, 4200-6202, 4200-6207, 4200-6203, 4200-6209, 4200-6302,
4200-6301, 4200-6401, 4200-6403.

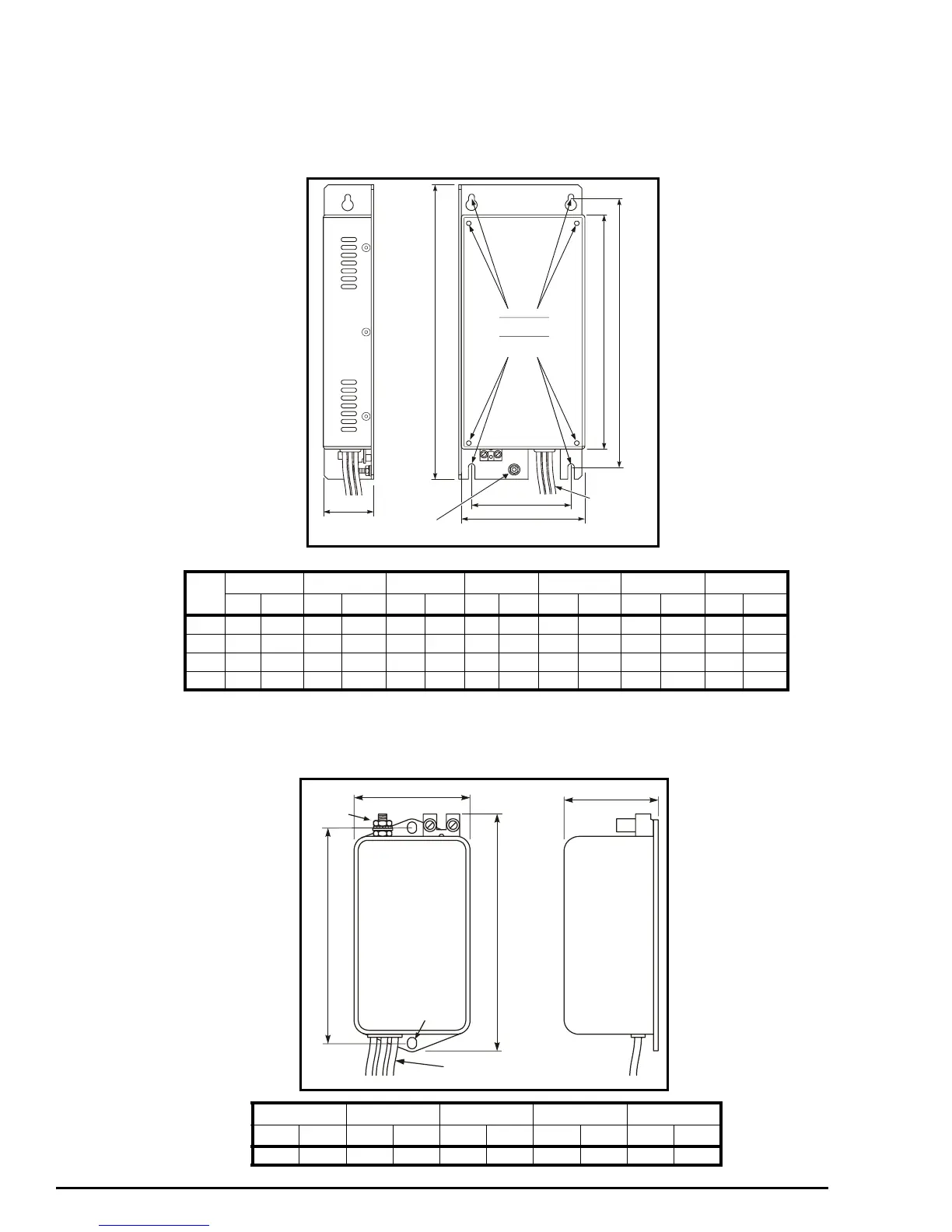

Figure 11-1 RFI filter dimensions
*60mm (2.362in) for size 4, 18.5kW; 4200-6403
11.1.2 Commander SE Size 1 Low Cost RFI Filter mounting dimensions, 4200-6101.
Figure 11-2 Size 1 Low cost filter dimensions
Drive A B C D E F Cable Length
Size mm in mm in mm in mm in mm in mm in mm in
1 242 9.528 195 7.677 100 3.937 40 1.575 225 8.858 80 3.150 190 7.480
2 330 13 281 11.063 148 5.827 45 1.772 313 12.323 122 4.803 250 9.843
3 385 15.157 336 13.228 190 7.480 50 1.969 368 14.488 164 6.457 270 10.630
4 467 18.386 414 16.299 246 9.686 *55 2.165 448 17.638 215 8.465 320 12.598
D
F
C
ABE
Size 1 and 2
Size 3 and 4
8 x M4 holes
8 x M5 holes
for footprint mounting
Cable lengt
h
Earth stud: SE Size 1 - M4
S
E
S
iz
e
2 ~ 4 - M
5
ABCD∅Z
mm in mm in mm in mm in mm in
113.5 4.469 103 4.055 58 2.283 45.5 1.791 4.4 0.17
D
C
AB
Cable length
230mm (9.055in)
M4
∅ Z
