Control Techniques COMMANDER SE User Manual

Commander SE Advanced User Guide 151
Issue Number: 4
11.1.3 Commander SE Size 2 and 3 Low cost single and three phase RFI Filter mounting
dimensions, 4200-6204 and 4200-6304.

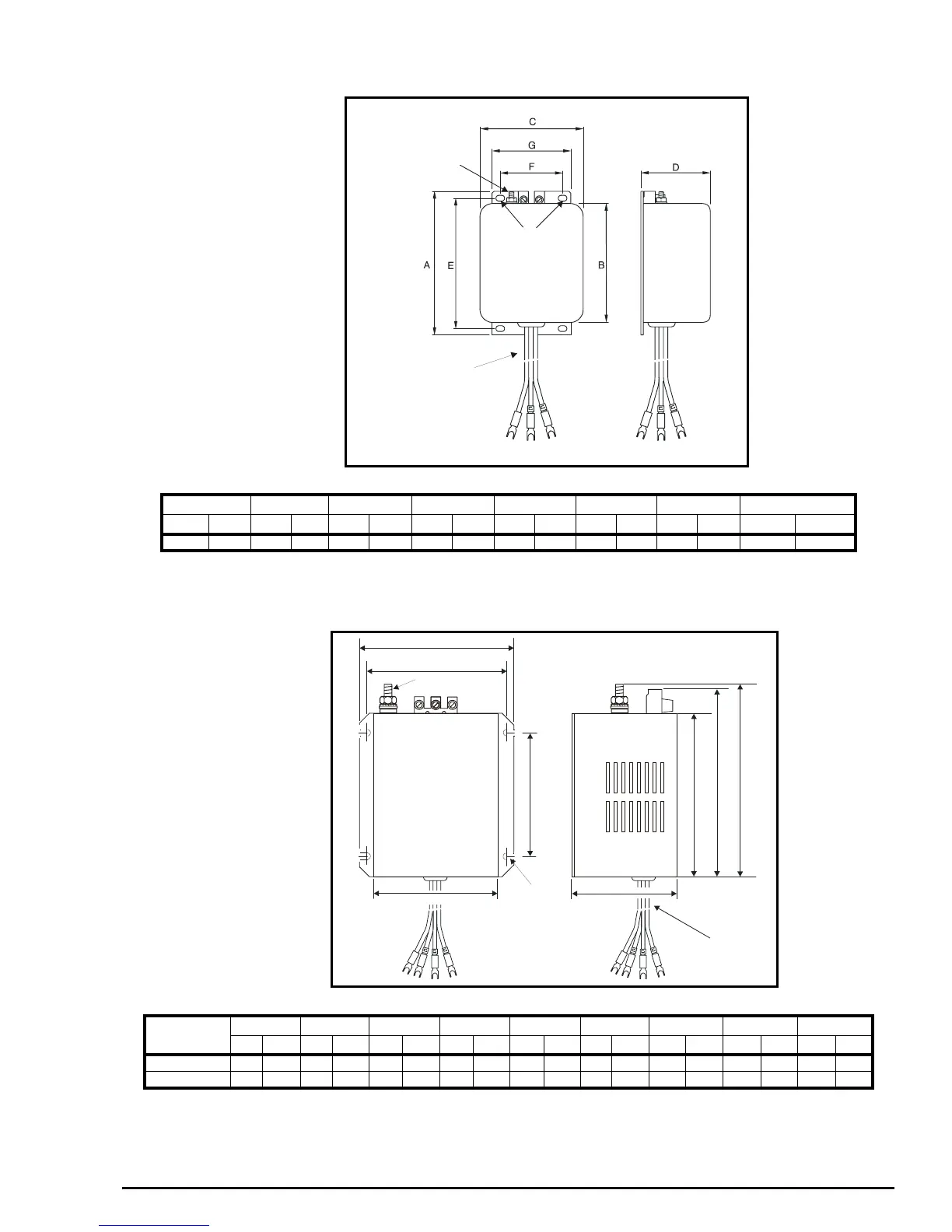

Figure 11-3 RFI filter dimensions
11.1.4 Commander SE Size 2, 3 and 4 Low cost three phase RFI Filter mounting dimensions, 4200-
6303, 4200-6402 and 4200-6404.
Figure 11-4 RFI Filter Dimensions
Cable length
4200-6204 = 250mm (9.843in)
4200-6304 = 300mm (4.811in)
M5
∅ Z
ABCDEFG ∅Z
mm in mm in mm in mm in mm in mm in mm in mm in
119 4.685 98.5 3.878 85.5 3.366 57.6 2.268 109 4.291 51 2 66 2.298 4.3 x 7.5 0.17 x 0.3
A
B
C
D
E
F
G
H
Cable length
300mm (11.811in
)
M5
Z ∅
ABCD EF G H∅Z
mm in mm in mm in mm in mm in mm in mm in mm in mm in
4200-6303 133 5.236 120 4.724 118 4.646 70 2.756 80 3.150 103 4.055 90 3.543 130.6 5.142 6.5 0.255
4200-6402 143 5.630 130 5.118 128 5.039 80 3.150 80 3.150 113 4.449 100 3.937 143 5.630 6.5 0.255
