Control Techniques COMMANDER SE User Manual

152 Commander SE Advanced User Guide
Issue Number: 4
11.1.5 SE5340220 bookcase mounted filter, 4200-6116

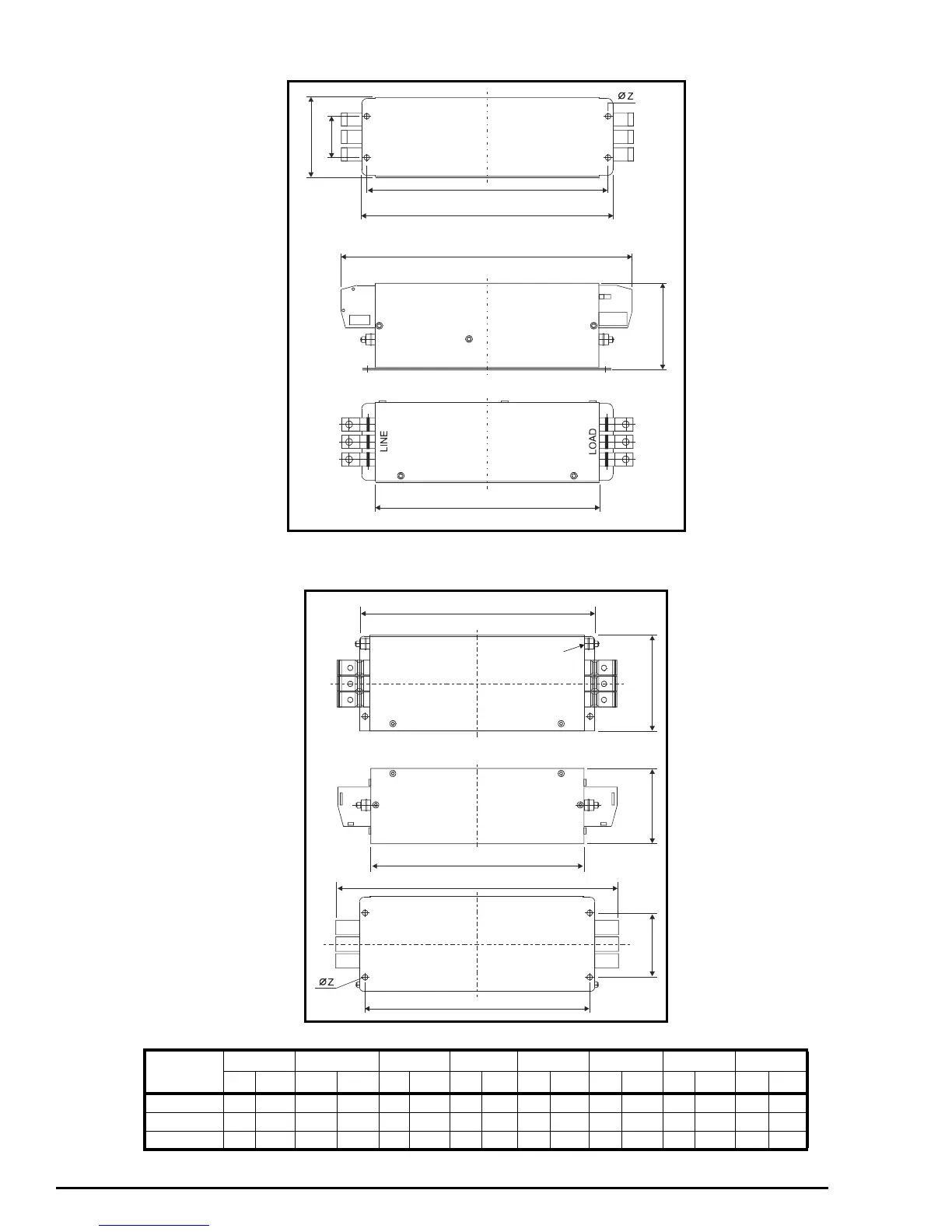

Figure 11-5 RFI filter dimensions
11.1.6 SE53403000 to SE53403700 bookcase mounted filter, 4200-6116
Figure 11-6 RFI filter dimensions
C
F
A
B
D
E
G
ABCDEFG∅ Z
mm in mm in mm in mm in mm in mm in mm in mm in
4200-6116 337 13.27 259.5 10.22 90 3.54 100 3.94 275 10.83 50 1.97 290 11.42 7 0.28
4200-6117 377 14.84 300 11.81 150 5.9 103 4.05 315 12.4 105 4.13 330 12.99 7 0.28
4200-6106 380 14.96 294 11.57 150 5.9 107 4.21 310 12.2 105 4.13 325 12.79 7 0.28
A
B
C
D
E
F
G
4200-6117 = M6
4200-6106 = M8
