182 Commander SE Advanced User Guide
Issue Number: 4
12.21 2 x Latching Run Forward Inputs
Set-up for 2 x Latching Run Forward Inputs
V01.08.00 software or later must be used for this set-up. It will not work with earlier versions.
The following set-up gives two momentary latching Run Forward inputs with two different speeds set by the analog inputs.
Set-up
6.04 = 1
Perform a Save routine: xx.00 = 1000 and press red Stop / Reset button on the drive
1.10 = 1 Allow negative digital references
1.22 = 0.2 Preset 2 to 0.2
1.23 = 0.1 Preset 3 to 0.1
7.13 = 1 Analog input 2 invert
9.04 = 1.12 Logic function source 1 to reverse selected bit
9.10 = 12.10 Logic function destination to variable select selector bit
12.08 = 1.23 Variable selector source 1 to preset 3
12.09 = 1.22 Variable selector source 2 to preset 2
12.11 = 1.14 Variable selector destination to reference selector
Perform a Save routine: xx.00 = 1000 and press red Stop / Reset button on the drive

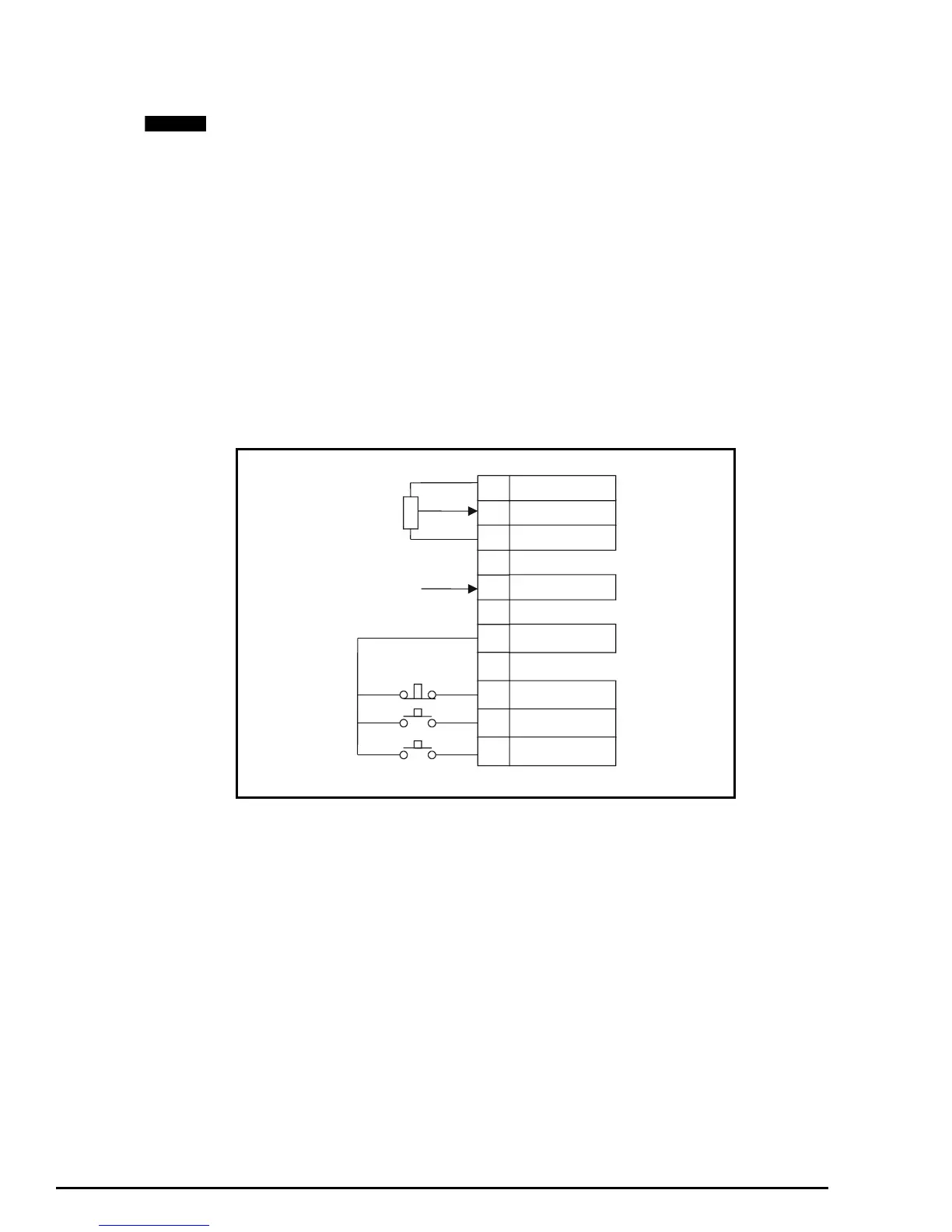

Terminal set-up
Operation
When the Run Forward 1 terminal is closed momentarily the drive will run forward at the speed requested by analog input 1
When the Run Forward 2 terminal is closed momentarily the drive will run forward at the speed requested by analog input 2
NOTE
2
7
8
9
10
11
+24V
/Stop
Run Forward 1
Run Forward 2
6
5
4
3
1
Analog input 2
Analog input 1
0V
+10V
mA Input
To Next Page
