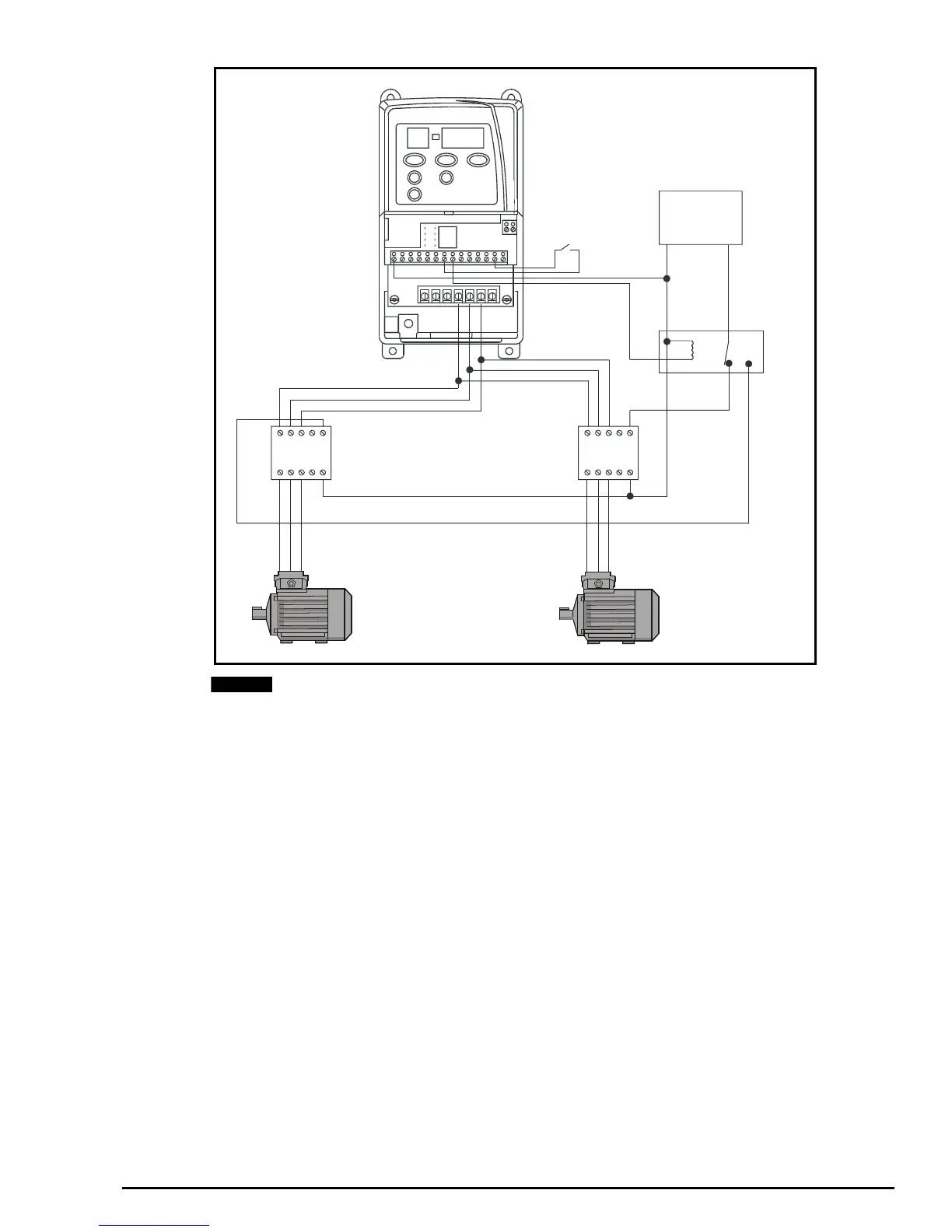

When the second motor map is implemented with parameter 11.45, the display will show the programmed second
motor map parameters. There is a delay of approximately 1 second for the digital output to change state when
changing from one motor map to the other.
0V
+24V
LP1-0610BD
+
-
LP1-0610BD
+
-
Contactor
2
Contactor
1
Motor 2
Motor 1
8
Second motor
map select
External
relay
1
137
External
power supply
NOTE
