Controlotron 1010PVN - Poor Signal; Official Coupling Compound; Alternative Coupling Compound; Ideal Vsig Display

2-91
1010PVNFM-3A
Section 2
Poor Signal
q Check that actual pipe dimensions and material match programmed data.
q Consult X-Select; Choose first recommended transducer.
q Relocate transducers.
q Switch off any radiating electrical equipment in area (Transmitters, Variable Freq. Drives,
etc.).
Trade Name Application Max Temp. Remarks
Motor Oil, Gear Oil, STP Portable, Short Term 250°F, 121°C Messy
Auto Wheel Bearing Grease Moderate to Long Term 250°F, 121°C Good Gen’l Compound
Silicone Rubber (RTV) Permanent As Rated Cure at Ambient
2-Part Epoxy Permanent As Rated Cure at Ambient
Gasket Cement Permanent 375°F, 190°C Cure at Ambient
“Alternative” COUPLING COMPOUNDS
Part# Name Application Max Temp. Remarks
CC-102 Ultragel Portable, Short Term (< 24 Hours) 110°F, 43°C Water Soluble
CC-110 RTV-734 Permanent (Plastic Xducers Only) 150°F, 65°C Avoid Humidity
CC-114 Magnalube Long Term Teflon Grease 300°F, 159°C Temp. affects life
CC-117 Dow-340 Temperature Sensors Only 400°F, 205°C Heat Sync Comp.
CC-120 Denso Submersible Applications 150°F, 65°C Good Noise Damp
CC-122 KryTox Long Term High Temperature 450°F, 232°C Use for all HT
CC-124 Barco Bond Permanent Epoxy for Metal Xdcrs 150°F, 65°C Cure at Ambient
CC-128 SuperLube Long Term Grease 375°F, 190°C Avail. In Stores
“Official” COUPLING COMPOUNDS

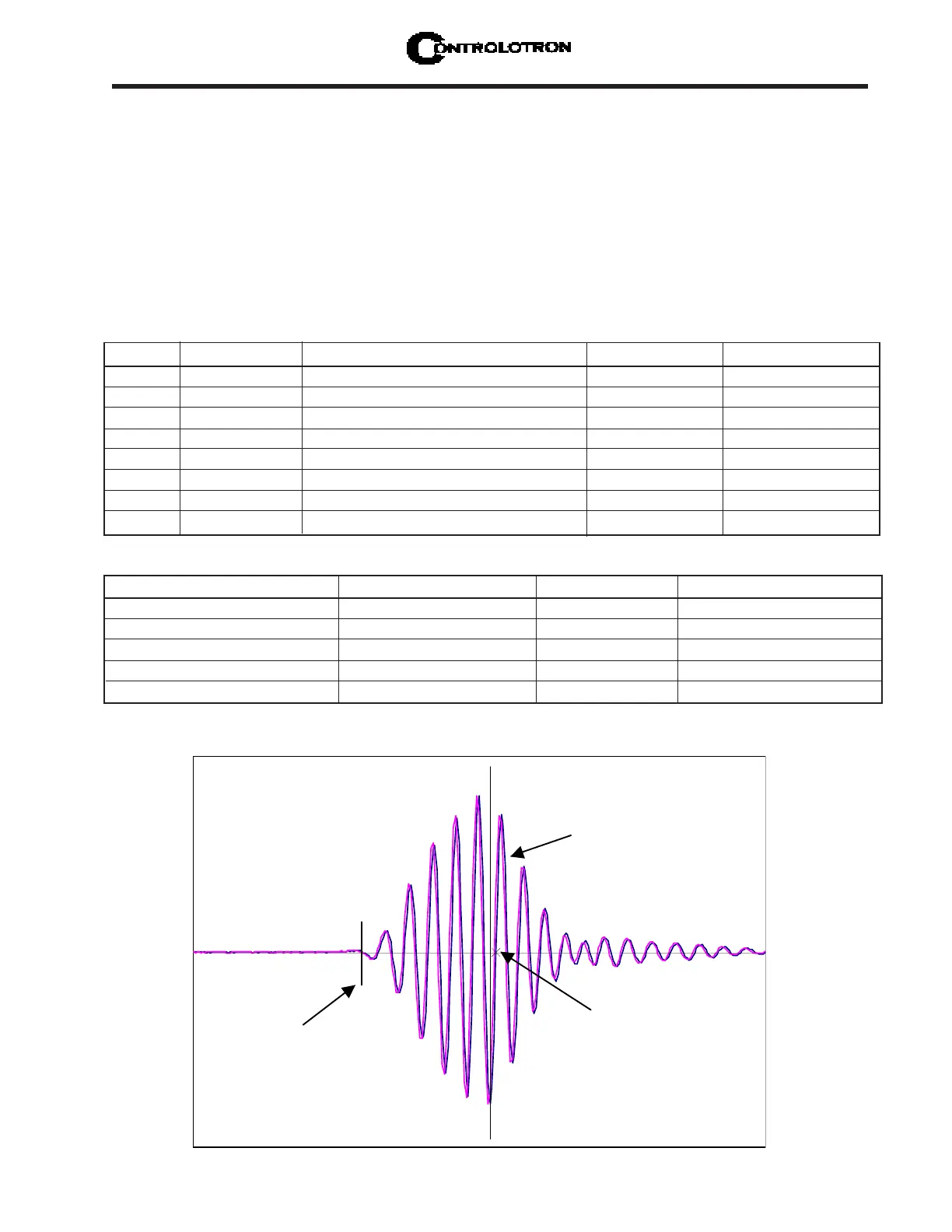

Digitized Receive Signal
TN marker
Crossover Marker
Command Line appears here
F 0.73
VS 1469.73
[ ] 1691:1929 476
D 4:4 4
Tn 55.06
dT 3.11
S 72
1
SN 124:1
CQ 17:1
Ideal Vsig Display
91
3
