Section 2
To select a Flow Time Unit:
To access the [Flow Time Units] option list press
To move the cursor to the required time units press
To store the time units press
2.6.3 FLOW DISPLAY RANGE
The [Display Range] option list offers a choice of [Autorange] (default), or [High] range. The
Autorange selection increases resolution automatically at low flow rates and reduces resolu-
tion at high flow rates as required to prevent data overflow. If you select [High] range, the
meter controls its screen resolution to prevent data overflow at the highest possible flow.
ENT
2.6.1 FLOW VOLUME UNITS
The [Flow Volume Units] option list allows you to select the rate units the meter uses to
report volumetric or mass flow. If you select mass units, the meter uses the specific gravity
parameter (see Application Class section) to convert volumetric flow to mass flow. The de-
fault English Units is [Gallons].
To select a Volumetric or Mass Unit:
To access the [Flow Volume Unit] option list press
To move the cursor to the required units press
To store selection press
2.6.2 FLOW TIME UNITS
The [Flow Time Units] option list allows you to select a flow display time base. The system
default is [Minutes]. If this suits the application, press to bypass this menu cell.
ENT

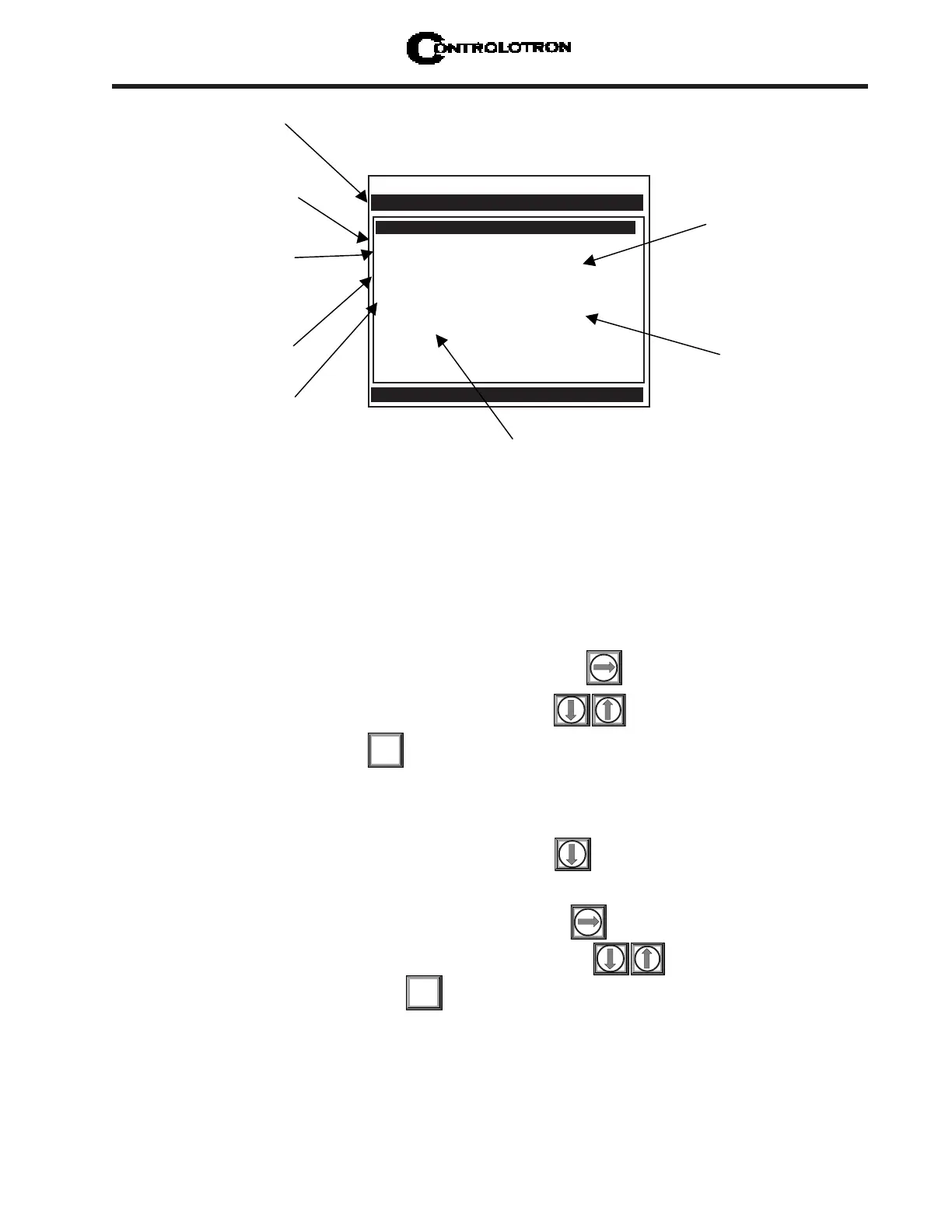

Flow Volume Units Gallons <US>
Flow Time Units MIN
Flow Disp Range Autorange
Flow Disp Scale GAL/MIN
Total Vol Units Gallons <US>
Totalizer Scale KGAL
Total Resolution 00000x00
Totalizer Mode NETFLOW
Batch/Sample Total 0.000
Controlotron Dual Path FLOW1
Choose desired Flow rate volume units
Flow/Total Units
Use this menu cell to enter a
volume accumulation for the
batching or sampling totalizer
relay trigger.
Use this menu cell to
select how the totalizer
accumulates flow.
Use this menu cell to set the
resolution of the totalizer
.
Use this menu cell to select
either volumetric or mass flow
total units
.
Use this menu cell to select a
range for the flow rate display
screen
.
Use this menu cell to select a
time base for the flow rate
units.
Use this menu cell to select
either
volumetric or mass flow
rate units
.
Use these menu cells to
set the scaling for the
flow rate and flow total
outputs.
