2-34
1010PVNFM-3A
Section 2
Controlotron Dual Path BCD
Determine Fault Memory Delay
Operation Adjust
Damping Control Smart Slew
Deadband Control 0.000
Memory/Fault Set Memory
Memory Delay <sec> 120
Use this menu cell to
select meter response
to a fault condition.
Fault drops outputs to
zero. Memory retains
last valid reading for
duration of Memory
Delay.
Use this menu cell to enter
the duration (in sec.) that you
want the meter to maintain
its
last reading for during a fault
condition. The hidden cell only
appears if you select Memory
Mode.
Use this menu cell to
enter a flow rate
deadband threshold.
Flow rates below this
level will be reported
as zero flow.
Use this menu cell to
select either
SmartSlew™ or Time
Average output
damping.
To disable the ZeroMatic function:
Select the [Pick/Install Xdcr] menu cell from the Dual Path Flow menu.
Scroll down to the [Zero Flow Adjust] menu cell by pressing
NOTE: The highlighted [ZeroMatic] menu item is the only indication that ZeroMatic
TM
is functioning.
Invoke the ZeroMatic
TM
initial makeup procedure as previously described above.
While ZeroMatic
TM
initial makeup is running, press to abort the process thereby
disabling the function.
The screen will return to the Dual Path Flow menu and highlight the [Operation Ad-
just] menu cell.

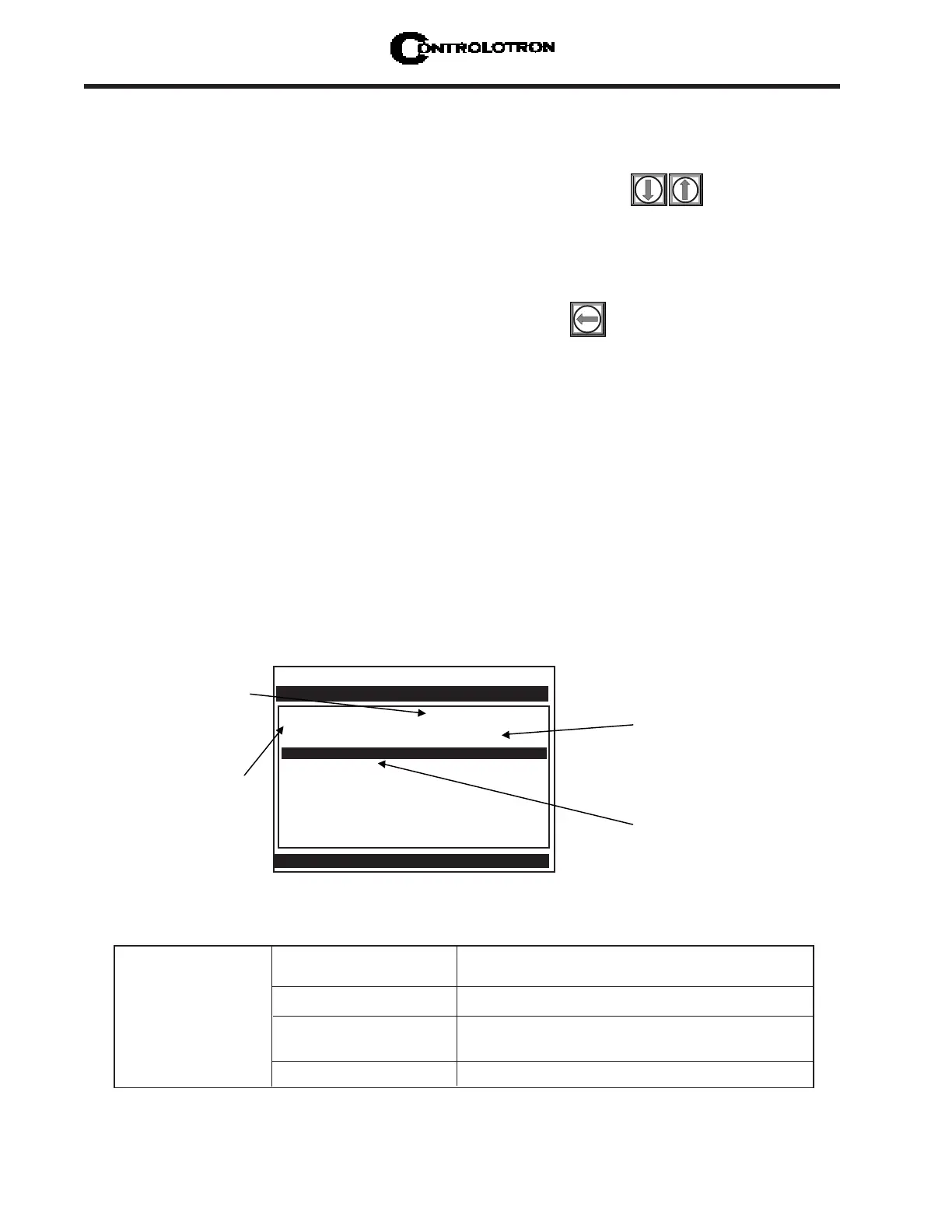

2.5 THE OPERATION ADJUST MENU
This menu becomes available after picking a meter type and measurement channel.
We recommend that you use it after the transducers are installed and operating to “fine-
tune” the meter’s output characteristics.
Each application presents different data display and output requirements due to unique pipe
and liquid conditions. Use the [Operation Adjust] menu to match meter operation to the site.
You can set damping controls for the primary flow rate output. You can define a Deadband,
(usually a very low flow rate), below which, the flow output will be forced to zero. You can also
select the meter response to a continuous Fault condition.
Operation Adjust Damping Control Smart Slew x (numeric selection)
Time Average xx.x (numeric entry)
Deadband Control x.xx (numeric entry)
Memory/Fault Set Memory
Fault
Memory Delay (sec) xxx (numeric entry) (hidden in Fault Mode)
ð ð
ð
ð
ð
ô
ô
ô
ô
ô
ô
ô
Operation Adjust Menu Structure
