Controlotron 1010PVN - Notes on System 1010 Analog Input Modules; Single Channel Models

3-23
1010PVNFM-3A
Section 3

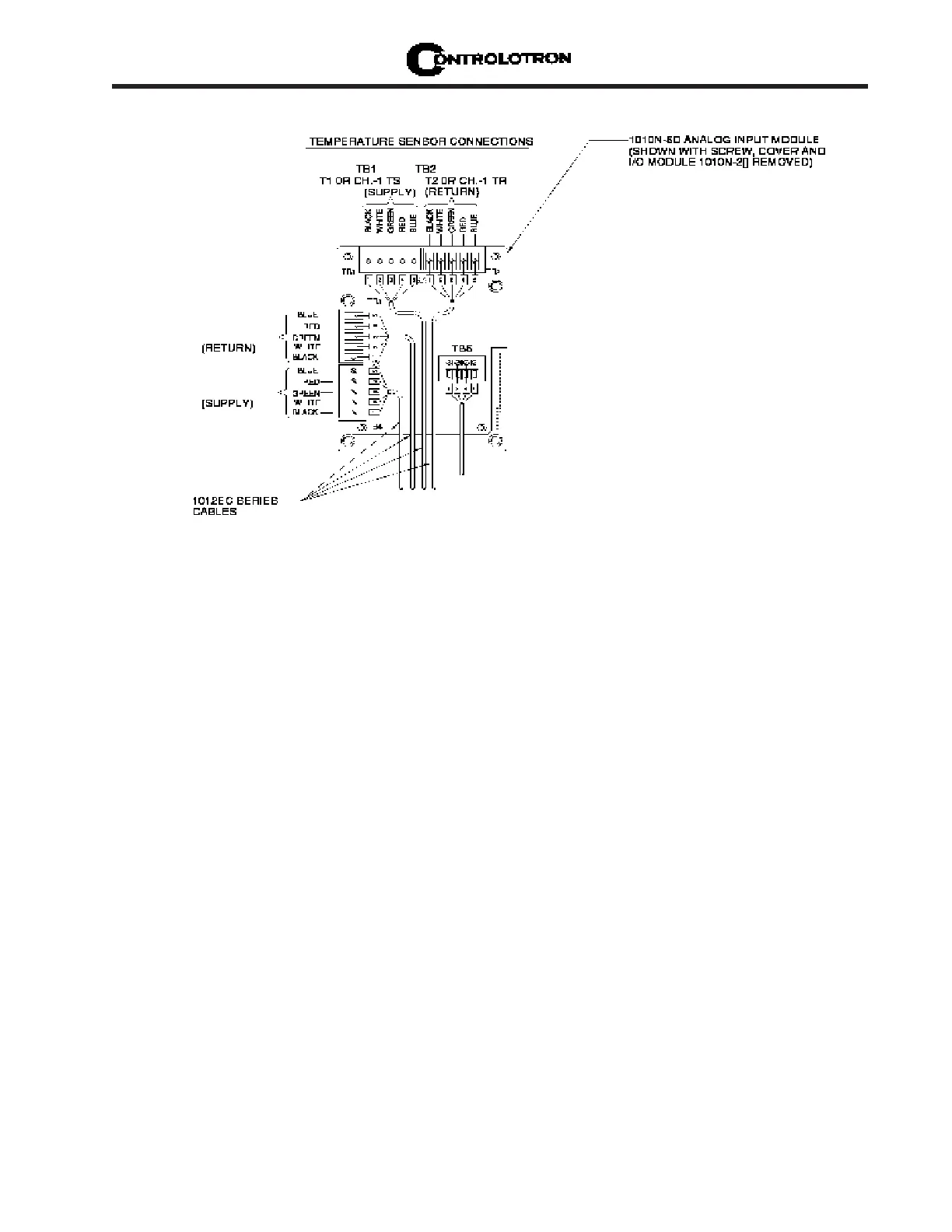

1010PVDN Dual Path Temperature Sensor Inputs
3.2.3 NOTES ON SYSTEM 1010 ANALOG INPUT MODULES
Single Channel Models
l System 1010 NEMA flowmeters report input module temperature sensor connections
T1 and T2 as system variables.
Dual Path Models
l The Dual Path instrument uses T1 to report liquid temperature. (Note that T2 is used to
report ambient temperature in some Leak Detector systems.)
l The Analog Input of temperature takes priority over the built-in RTD (Resistive Ther-
mal Device) measurement of temperature.
