2.4. Appearance and Main Item Description
2
8
9
5 6 7
1
3
4

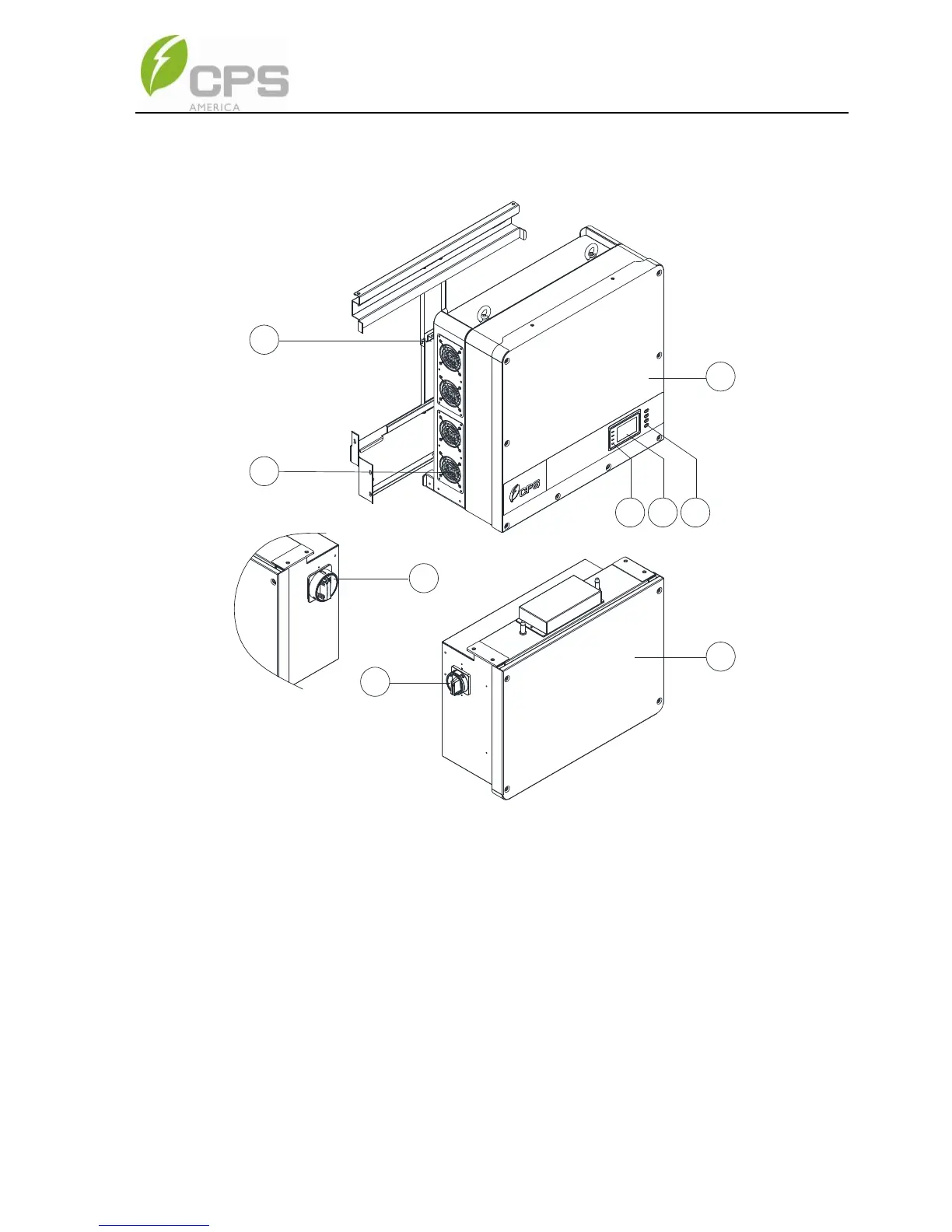

Figure 2-3 Diagram of the Inverter assembly
Main items of the Inverter:
① Main inverter enclosure
② Inverter wirebox
③ Inverter mounting bracket
④ Cooling fans
⑤ LED indicator lights
⑥ User LCD display
⑦ User Key buttons
⑧ DC switch: DC power on/off
⑨ AC switch: AC power on/off
