3.3.2. Wiring boxes
7.1in (180mm)
10.2in(258mm)
13.2in(336mm)
17.5in(445mm)
20.5in(520mm)
19.0in(483mm)
1 2 3 2
4
DC INPUT
COMM. PORT
For more details please see the user manual.

WARNING:
High touch current .
Earth connection essential before connecting supply.
DC INPUT AC OUTPUT

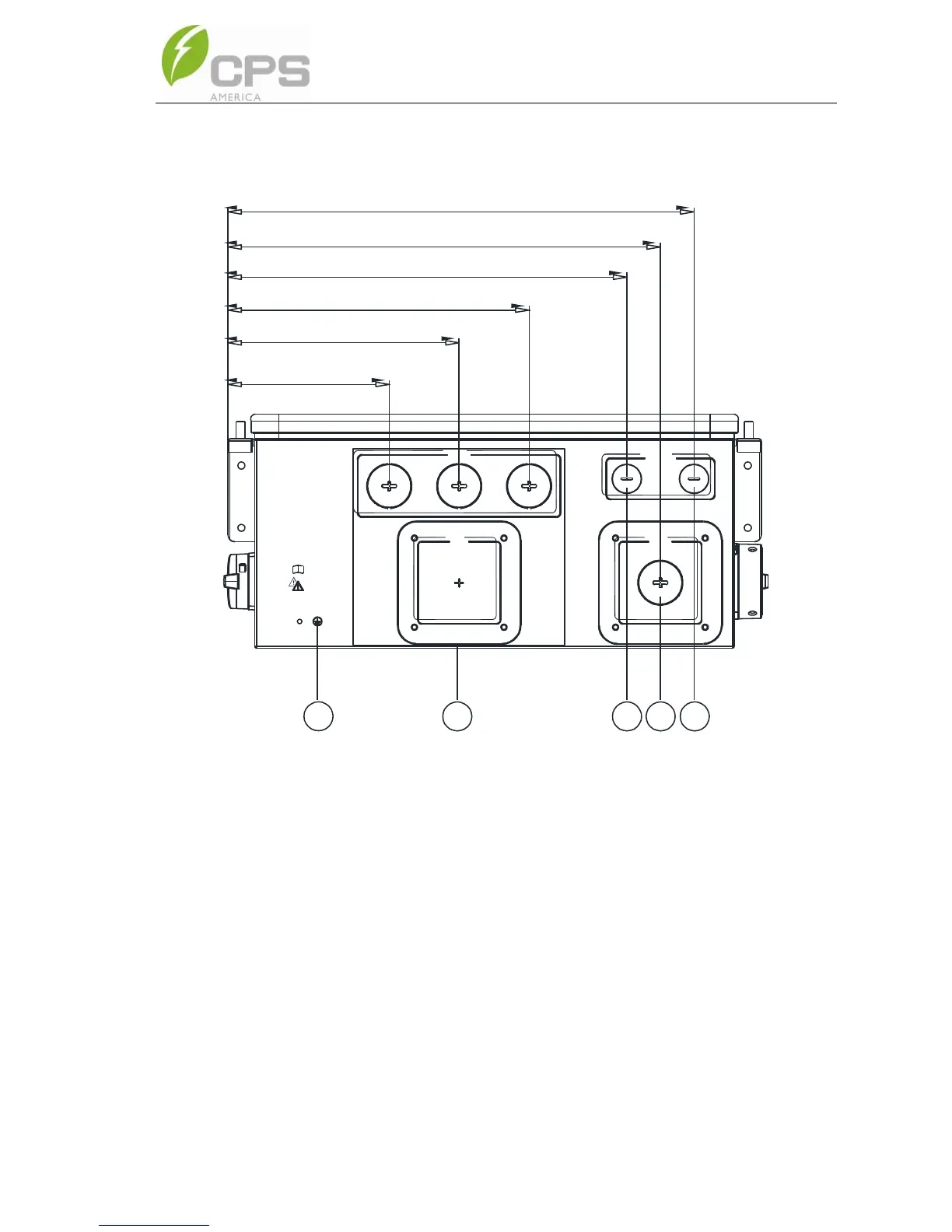

Figure 3-19(a) Conduit Knock-out Locations on the Standard wirebox
① Knock-outs for DC input, (3) 1-1/2 inch Trade Size and (1) removable
gland plate for custom size conduit (i.e. when use of 2 inch or 2-1/2
inch Trade Size conduit is required)
② Knock-outs for communication, 3/4 inch Trade Size
③ Knock-out for AC output, (1) 1-1/2 inch Trade Size on a removable
gland plate for custom size conduit (i.e. when use of 2 inch or 2-1/2
inch Trade Size is required)
④ External ground connection point (M6)
