3.2.4. Mounting the Inverter onto the Bracket
1. Locate and mark the 8 holes on the wall, PV racking structure, or
bearing surface for attaching the inverter mounting bracket as shown
in Figure 3-5.
=874mm(34.4in.)
≥435mm
250mm
≥350mm
465mm
125mm(4.9in.)
≥1100mm(min.)
(13.8in.)
(9.84in.)
250mm
(9.84in.)
(17.1in.)
(43.3in)
(18.3in.)
8-? 10.0
480~500mm
(18.9~19.7in)
Note:This dimension can be modified
according to installation requirements.

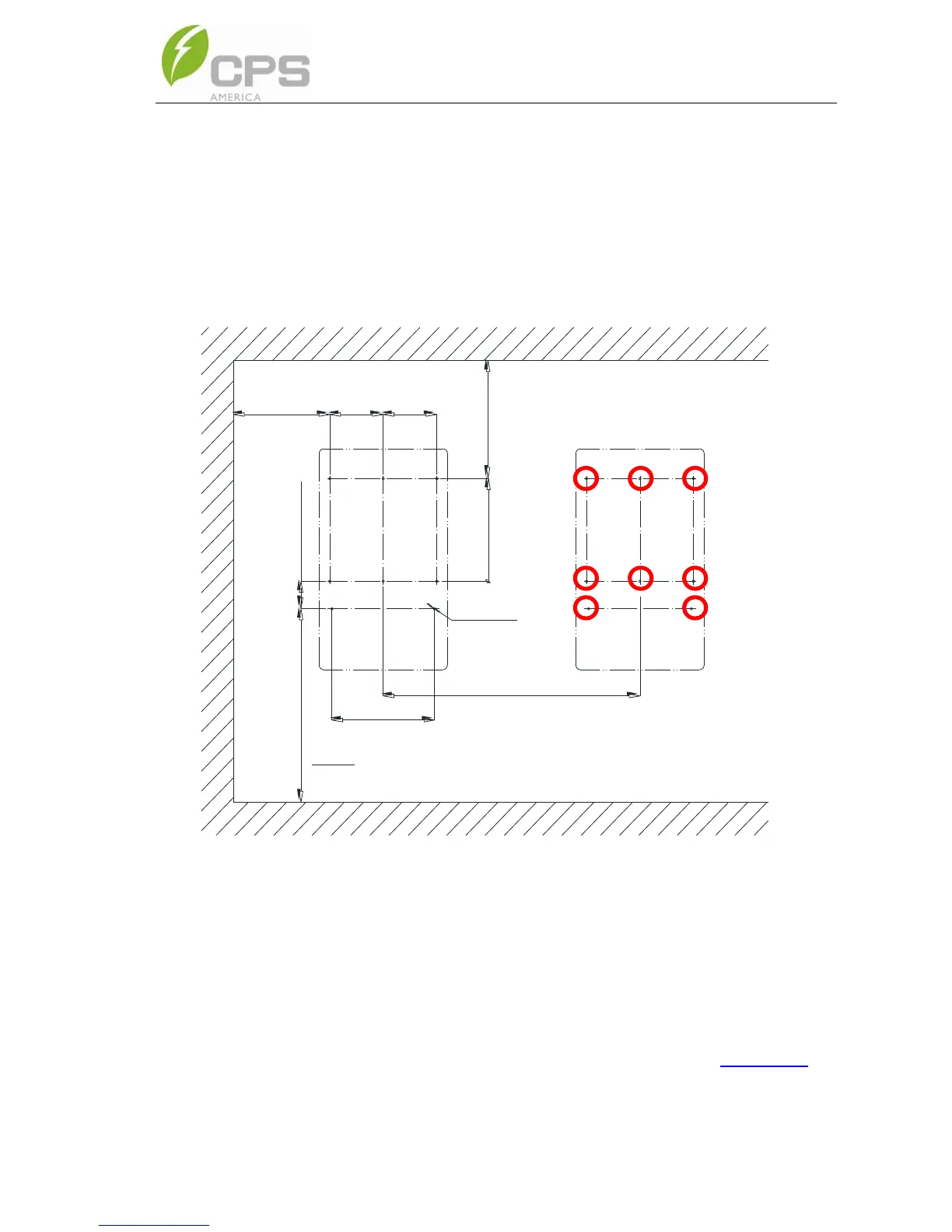

Figure 3-5 Dimensions of the bracket anchoring holes for mounting
a. PV Racking Mount: Locate holes or anchors at the marked
positions; Fasten the Mounting Bracket ② with the M8x25
Assembling Bolts ③ supplied with the Accessory Kit. M8
nuts are not provided in the Accessory Kit. See Figure 3-7.
Tools Required: No. 13 wrench(es)
