CPS SCA50KTL-DO/US-480 - Inverter Mounting Options

18

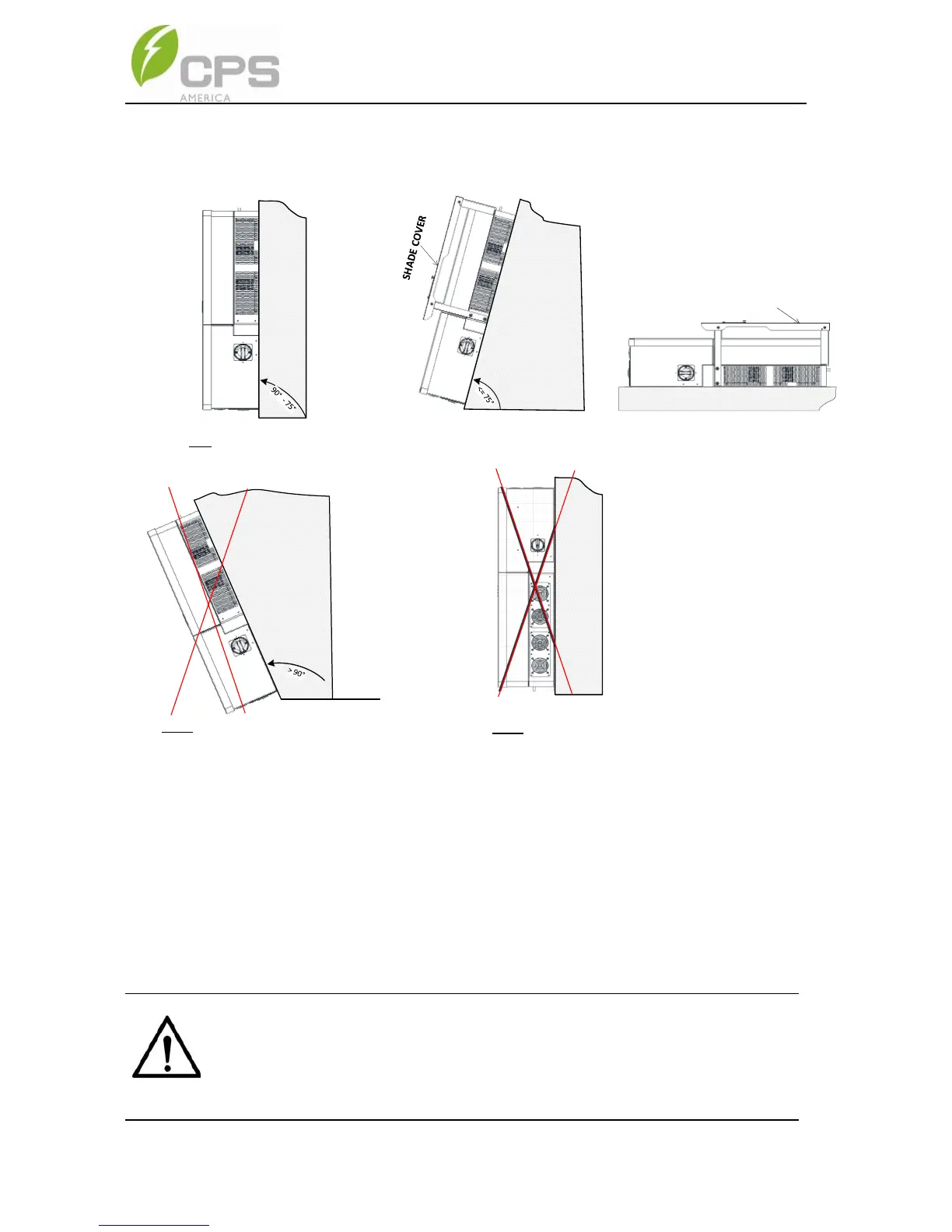

a.) NO SHADE COVER REQUIRED
SHADE COVER
b.) SHADE COVER REQUIRED
c.) NOT > 90° TILTED FORWARD
d.) NOT UPSIDE DOWN
Figure 3-2 Inverter Mounting Options
NOTICE:
When the inverter is mounted tilted backward at ≤75° from horizontal
in an outdoor environment, the CPS Shade Cover (SSC-60ST)
accessory must be installed on the inverter to avoid direct sunlight.
