29

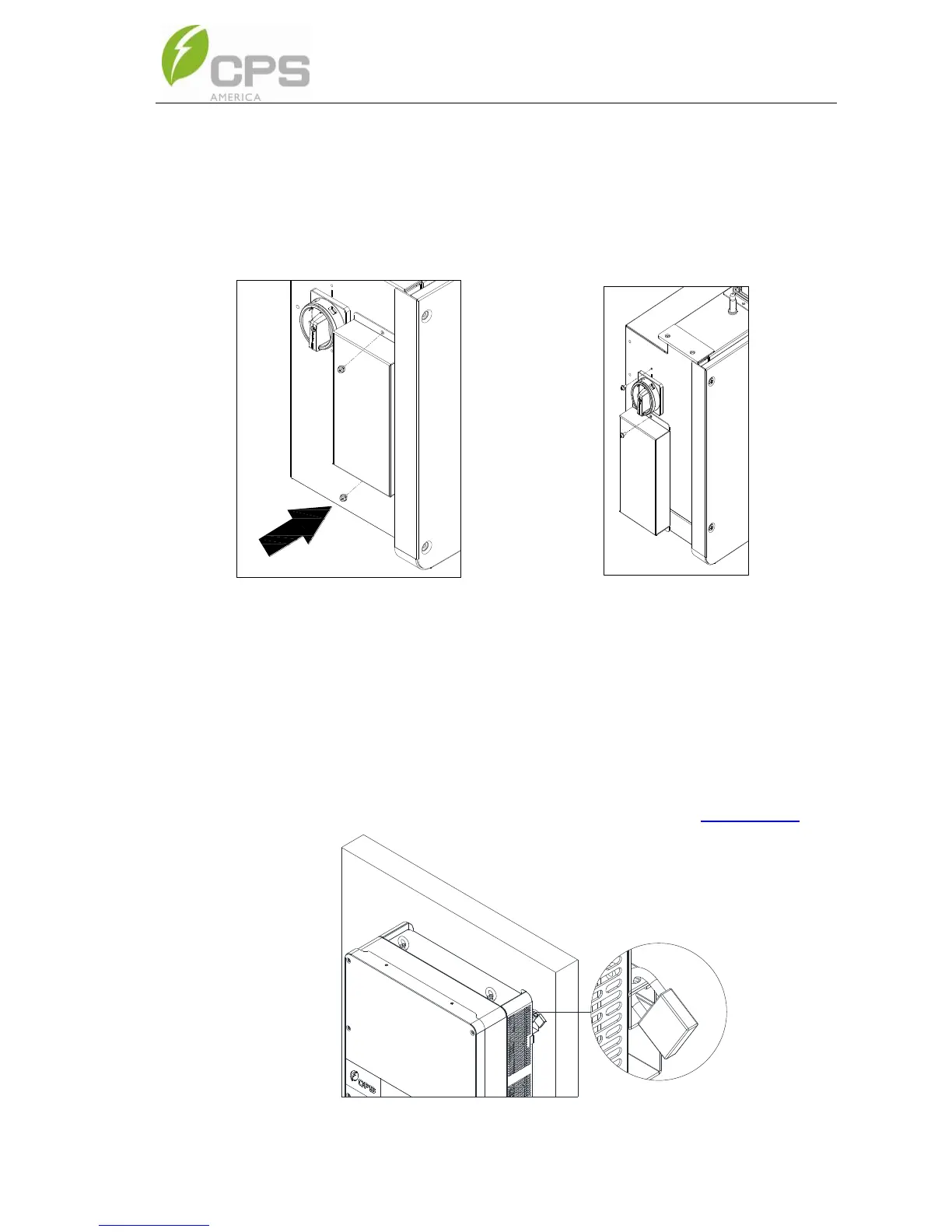

6. Attach the bulkhead cover shown in Figure 3-11 to the left side of
the wiring box. (see Figure 3-14)
Tool required: No.2 Phillips head screwdriver, torque value of
1.6N.m (14.2in-lbs)
Standard wirebox H4 wirebox
Figure 3-14 Attach the Cover to the left side of the Wiring Box
7. Optional - Install an anti-theft padlock when the installation is
complete. The anti-theft padlock is used to prevent the inverter
from being stolen when the equipment is installed outdoors. The
inverter may be locked to the bracket, as shown in Figure 3-15:
Figure 3-15 Location of the Anti-Theft Padlock
