b. Concrete Wall Mount: Drill holes at the marked positions
with a 0.4in. (10mm) masonry bit and insert the M8
Expansion Anchors ① into the holes; Fasten the
Mounting Bracket ② with the M8x25 Assembling
Bolts ③ supplied with the Accessory Kit. Figure 3-6 and
Figure 3-7.
Tools Required: Electric drill (Ф10mm/0.4in. masonry bit),
No. 13 wrench

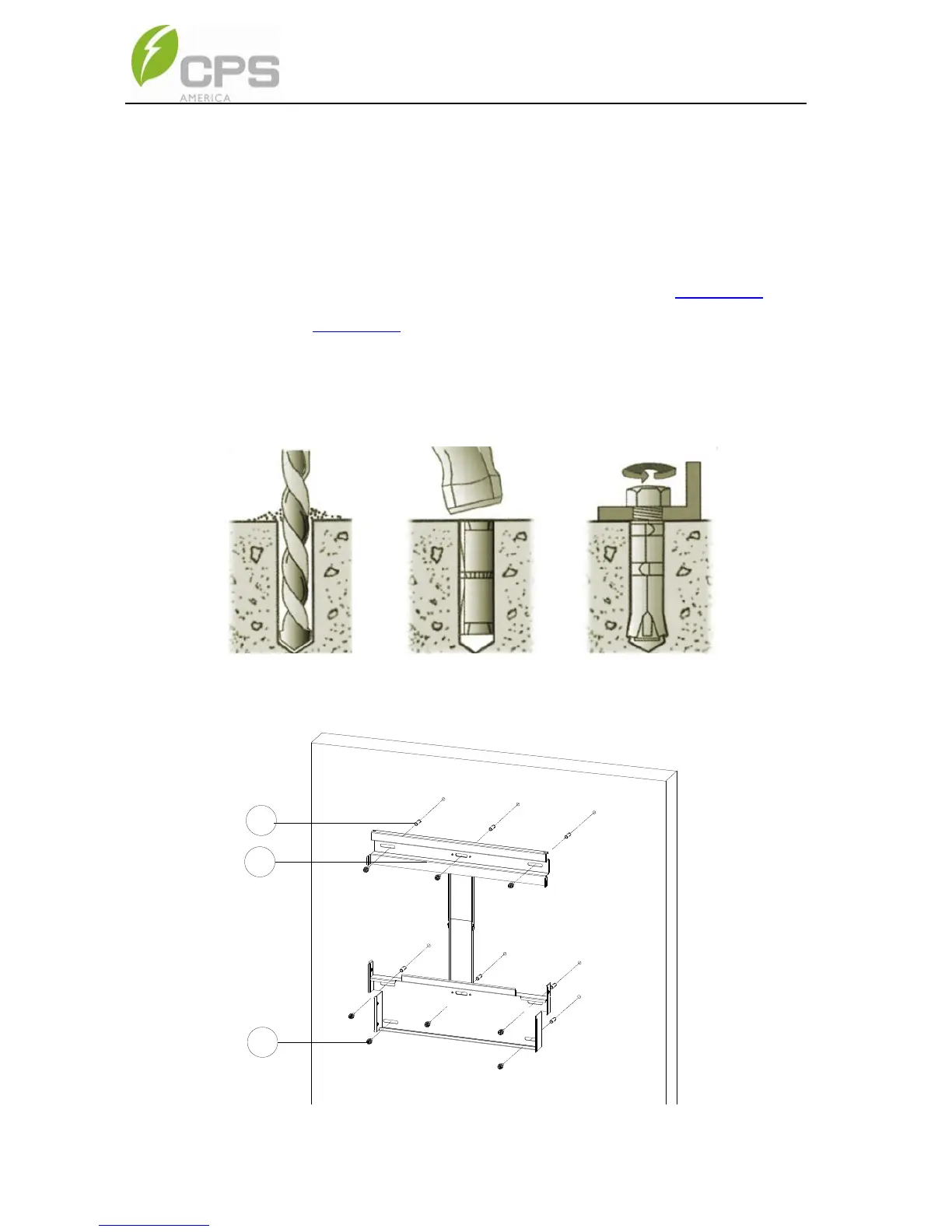

Figure 3-6 Drill holes, set Anchors, and tighten Assembling Bolts
