CPS SCA50KTL-DO/US-480 - External Ground Point Location of Standard Wirebox; External Ground Point of H4 Connector Wirebox

59

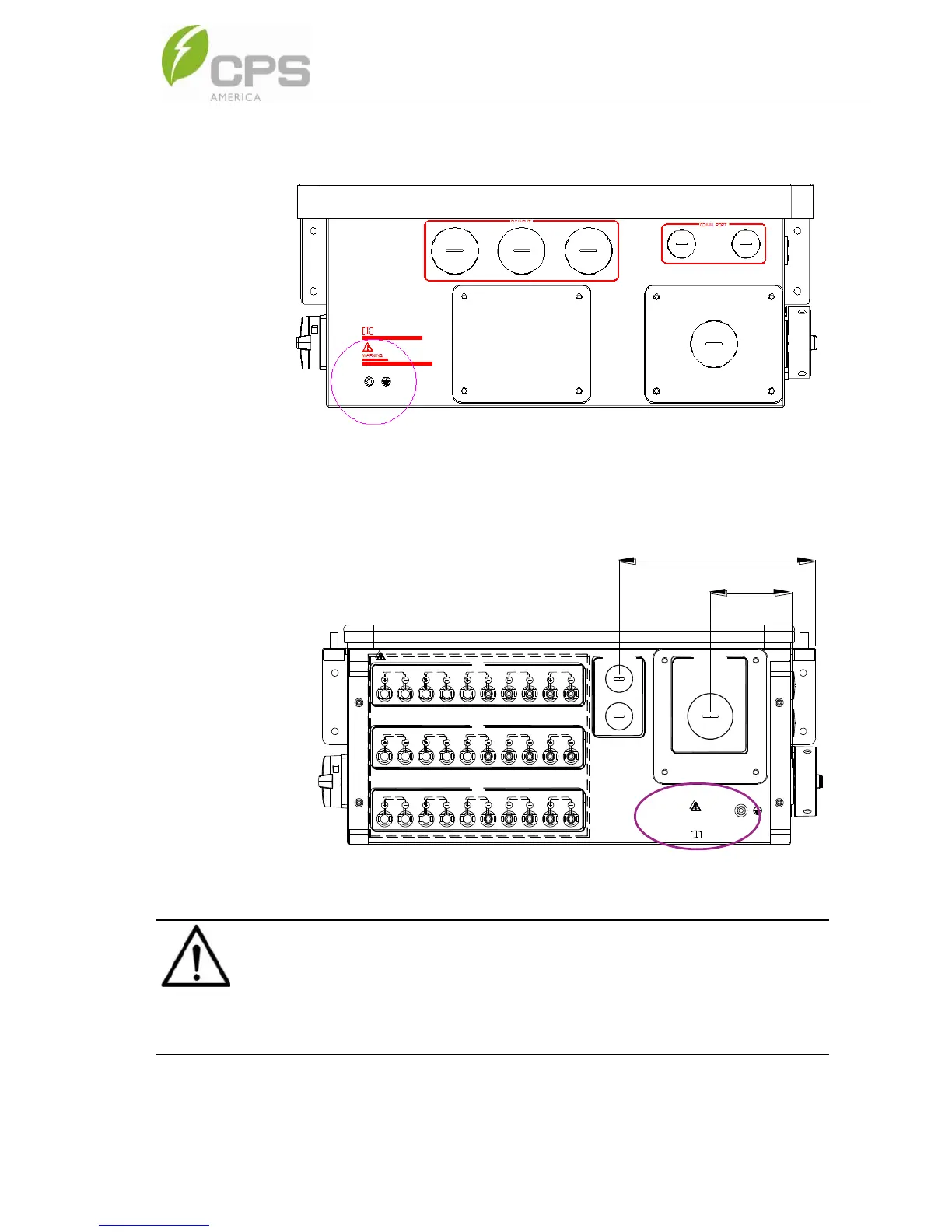

Figure 3-36(a) External Ground Point Location of Standard wirebox
COMM. PORT
Do not disconnect under load.
1 2 3 4 5
1 2 3
4 5
1 2 3 4 5
PV 1
PV 2
PV 3
For more details please
see the user manual.

WARNING:
High touch current .
Earth connection essential
before connecting supply.
AC OUTPUT
3.9 in.
9.4 in. (237mm)
(99mm)
Figure 3-36(b) External Ground Point of H4 connector wirebox
NOTICE:
Always connect the Ground cable before AC cable.
It is required to use the AL9CU OT type terminal if you chose the
aluminum cable for AC output.
