CPS SCA50KTL-DO/US-480 - Grab Handle Position; Install the Wiring Box; Main Enclosure Cover Plate

26

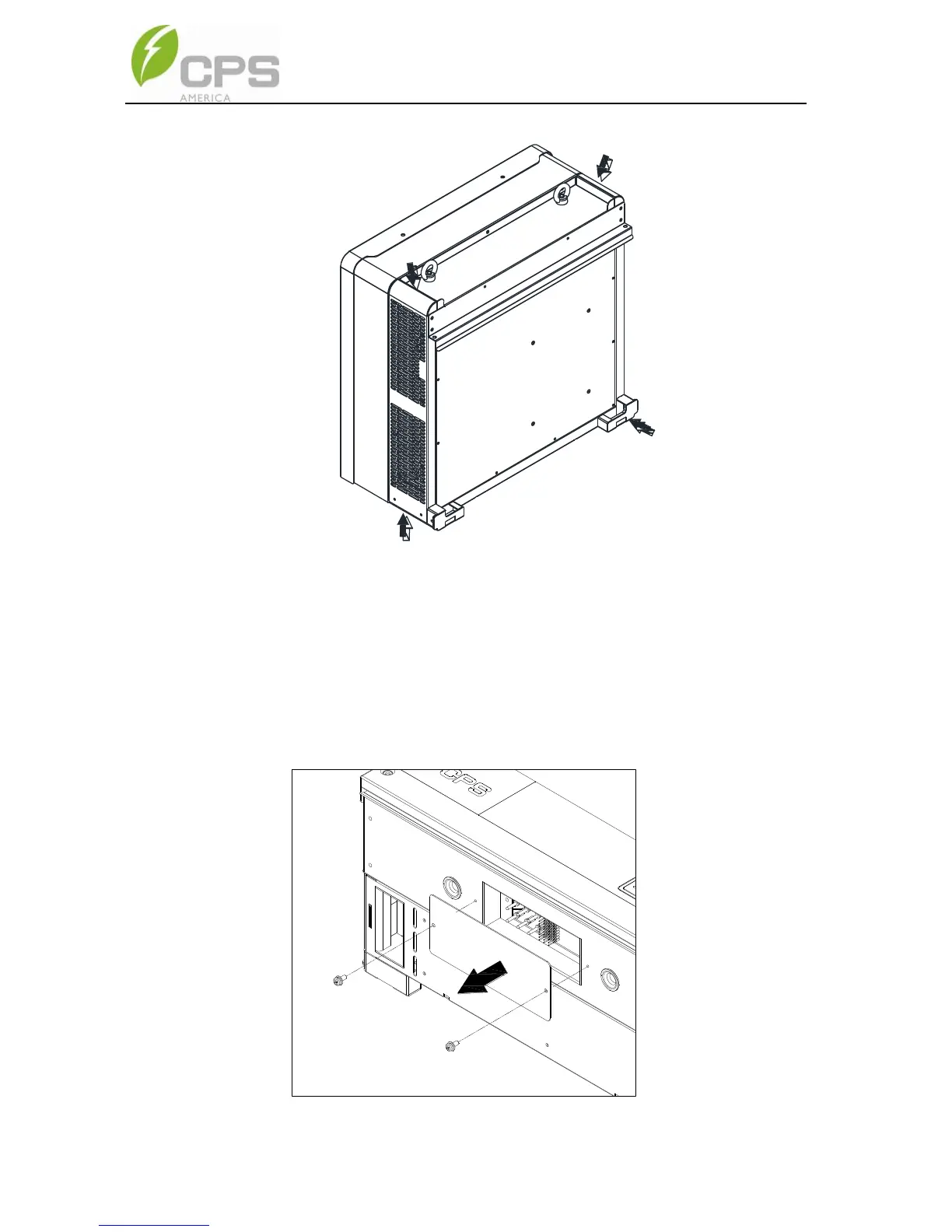

Figure 3-9 Grab Handle Position
3. Install the wiring box
a. Remove the cover plate at the bottom of the main
enclosure.
Tool required: No.2 Phillips head screwdriver
Figure 3-10 Main Enclosure Cover Plate
