3.3.3.4. DC Fuseholder Torque Specification
The inverter wiringbox may be assembled using fuse holders
supplied by either Bussmann or Mersen (Ferraz Shamut). The
touch safe fuse holders have unique terminal torque values
specified by their manufacturers. The fuse holders can be identified
by color markings; Bussmann-Yellow, and Mersen-Orange. See
Table 3-6 for specified torque values.

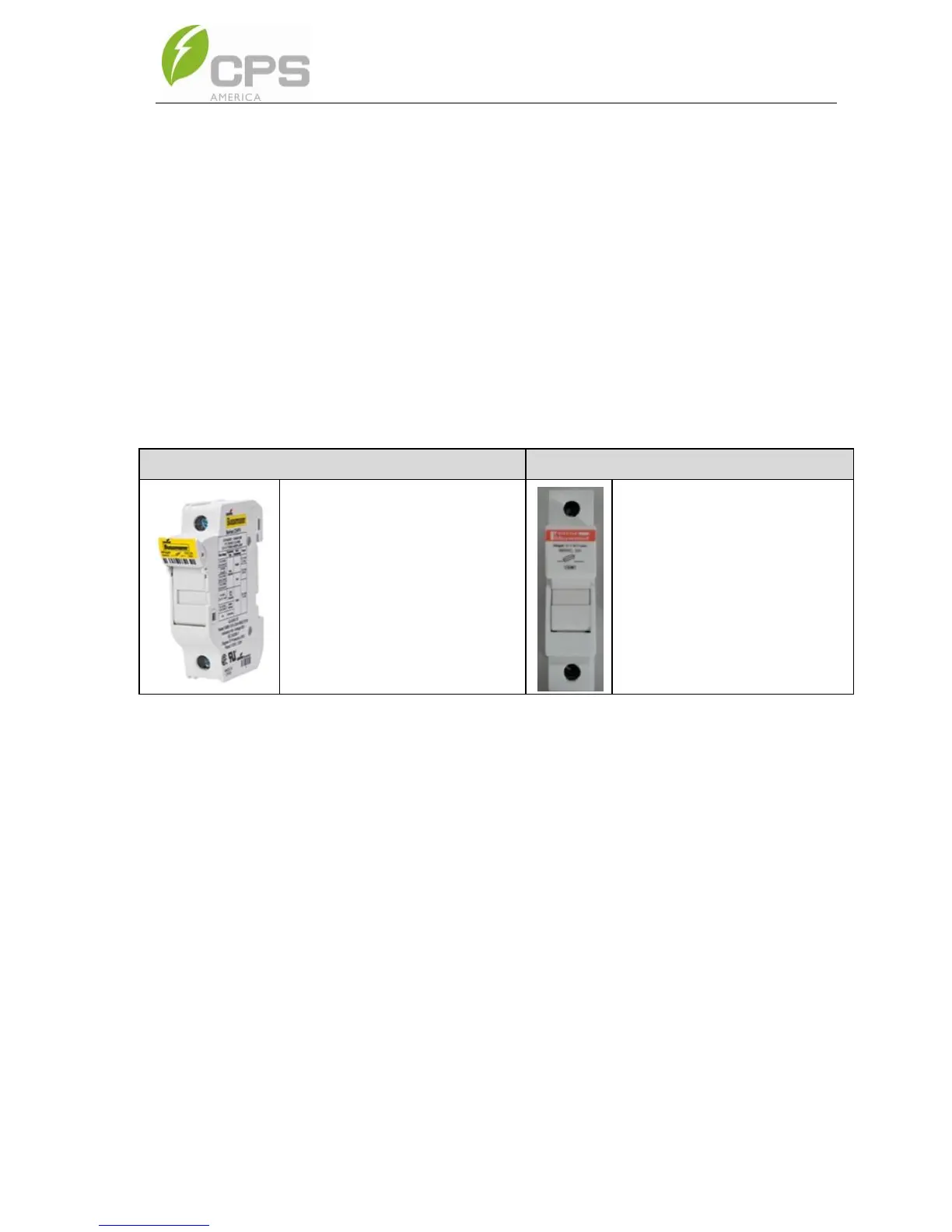

Table 3-6 DC Fuse Holder Torque Value by Manufacturer
Bussmann CHPV1
Mersen (Ferraz Shamut) USM1
Single Conductor
Specified Torque:
18-12AWG: 20in-lbs (2.3Nm)
10AWG: 25in-lbs (2.8Nm)
8-4AWG: 30in-lbs (3.4Nm)
Single Conductor
Specified Torque:
14-6AWG: 30in-lbs (3.4Nm)
