CPS SCA50KTL-DO/US-480 - Mount the Main Enclosure on the Bracket by Lifting Sling

25
2. Hang the inverter onto the mounting bracket as shown in Figure 3-8
and Figure 3-9;
a. Lift mounting: Locate the lifting eyes at the top of the inverter.
Use sling rope or bar (inserted through both lifting eye nuts) to
lift the inverter onto the bracket. The minimum angle between
the two sling ropes should be less than 90 degrees.
b. Manual mounting: Two people are required to safely lift the
inverter by the handle positions marked in Figure 3-9, and
mount it onto the bracket.

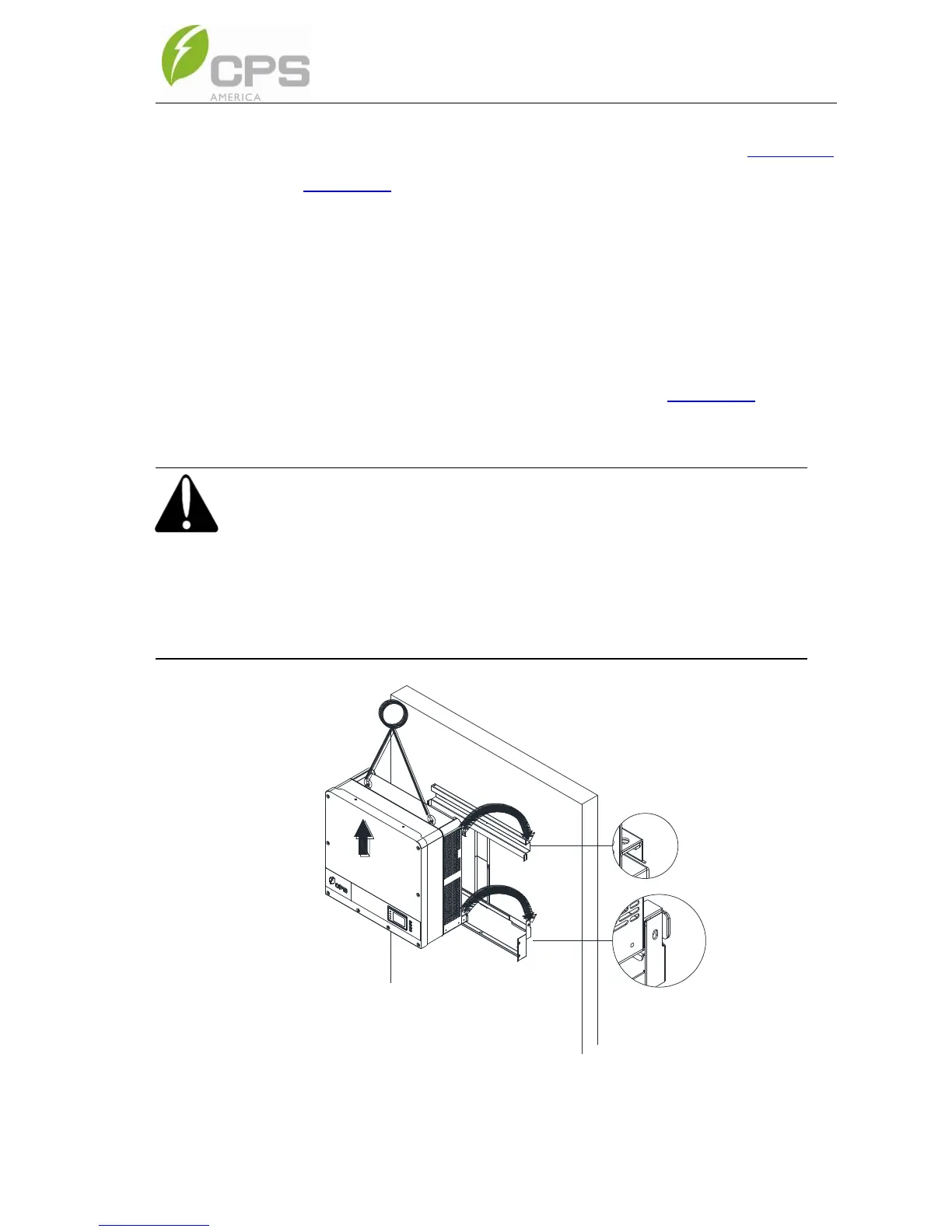

Figure 3-8 Mount the Main Enclosure on the Bracket by Lifting Sling
CAUTION:
The main enclosure of the CPS SCA50KTL-DO/US-480 and
SCA60KTL-DO/US-480 inverters is approx 56kg (123.5 pounds).
Ensure the mounting bracket is properly installed and secured
before hanging the inverter on the bracket. It is recommended to
have at least 2 people to mount the inverter due to the weight of
the equipment.
