3.2. Mechanical Installation
3.2.1. Dimensions

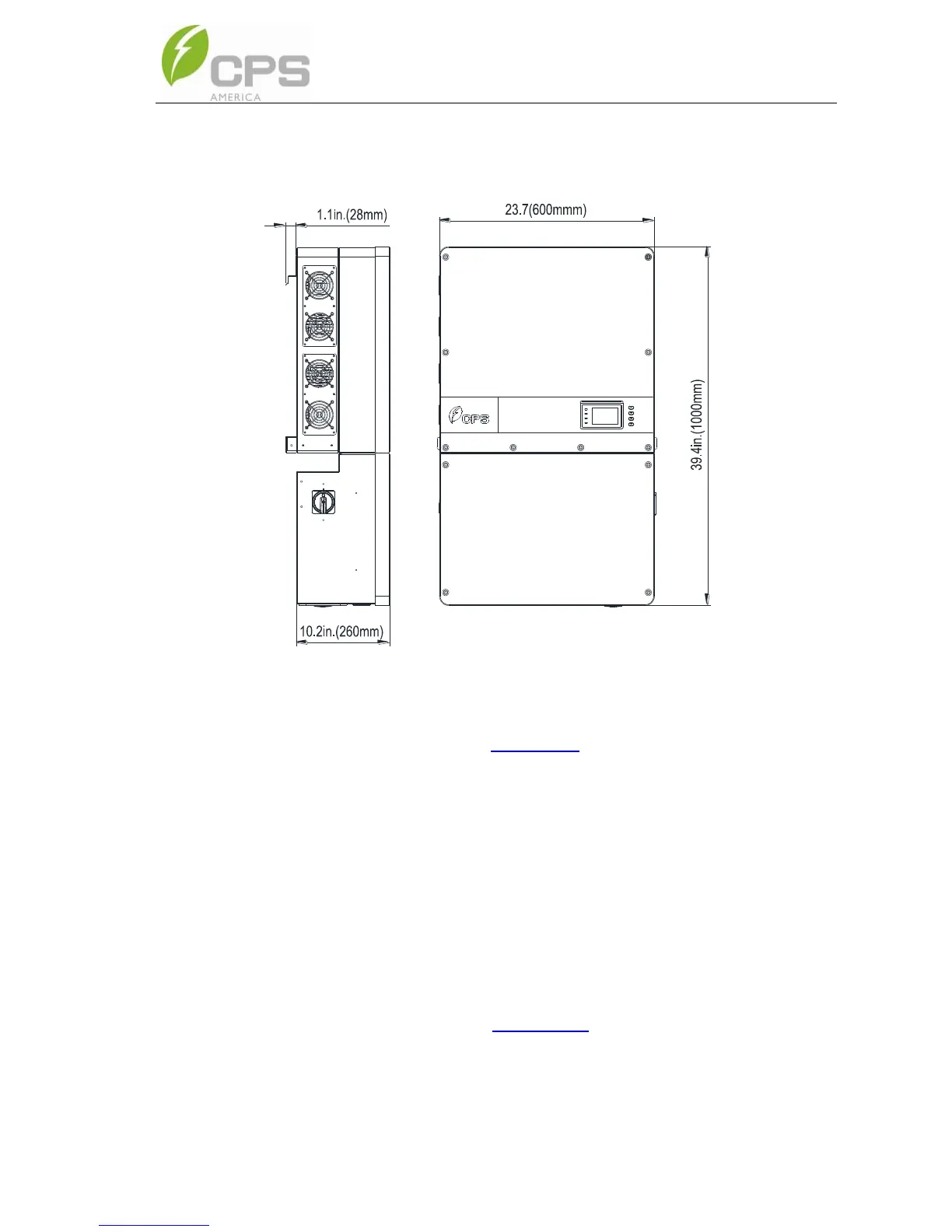

Figure 3-1 Dimensions of the Inverter
3.2.2. Installation Method (see Figure 3-2):
Ensure that the mounting structure (wall, rack, roof, etc) is suitable to
support the weight of the inverter. Follow the mounting guidelines below:
(a) If the location permits, install the inverter vertically.
(b) If the inverter cannot be mounted vertically, it may be tilted backward
at any angle from vertical to horizontal.
(c) When tilted backward at ≤75° from horizontal in an outdoor
environment, the CPS Shade Cover (SSC-60ST) accessory is
required to be installed. See Section 9.2 for more information.
(d) Do not mount the inverter leaning forward.
(e) Do not mount the inverter upside down.
