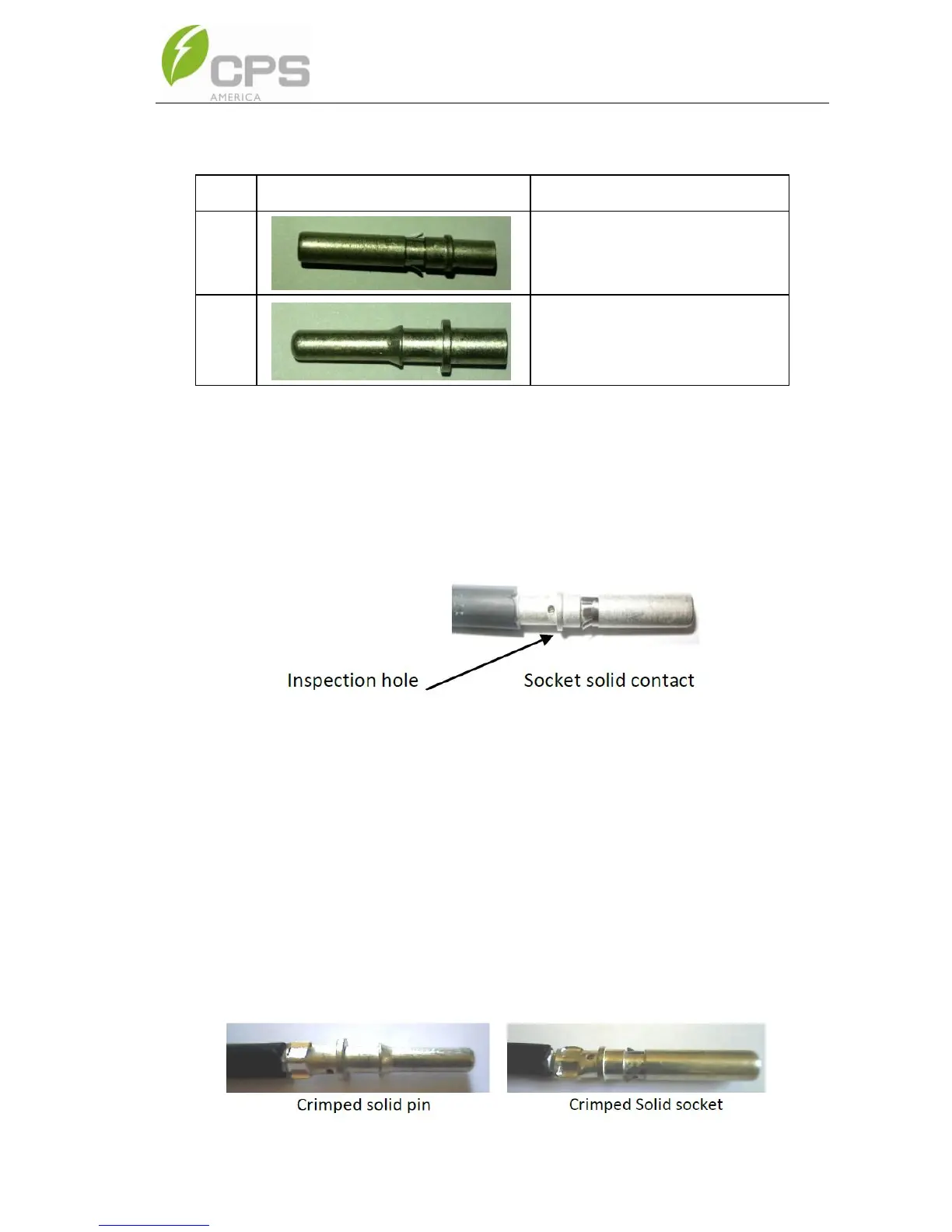

Table 3-8 Contact terminals for H4 connectors
No.
Item
Function
1
Socket solid contact for
Positive DC cable
2
Pin solid contact for
Negative DC cable
3. Insertion process solid contacts: When inserting stripped
conductor into contact barrel, verify all conductor strands are
captured in the contact barrel and the conductor is visible in
the inspection hole.
Figure 3-26 Cable insertion process
4. Crimp process solid contacts: The Amphenol specified
crimp tool (H4TC0001) must be used in this step. Insert the
contact into the corresponding crimping notch or locator
(male or female) considering the cable size used. Insert the
stripped cable end until the insulation comes up against the
crimp insert. Completely close the crimping pliers.
Figure 3-27 Cable/Crimp process
