CPS SCA50KTL-DO/US-480 - PF(P) Curve Mode

93
Note: The PF and Q value can be adjusted by remote software if
the “Remote” is selected.
1. pFSetValue：Set the PF value. This function changes the
reactive power by adjusting the Power Factor.
2. pFCurve functions：PF curve mode. Using the curves to set
the PF(P) setpoints (See Figure 4-19). These functions are
only available for IEEE-1547 grid standards.

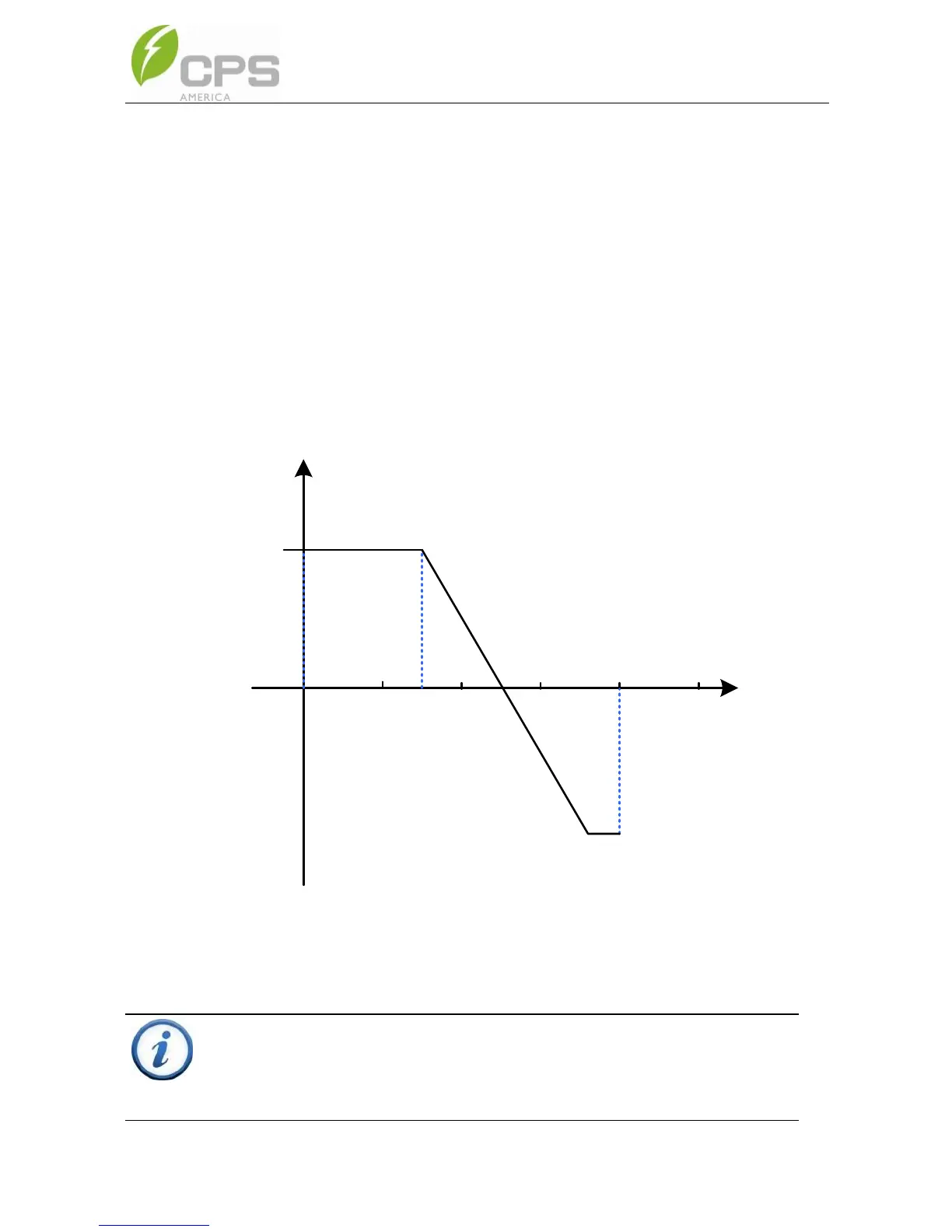

Figure 4-19 PF(P) Curve Mode
Capacitive
PF
-1
1
Inductive
(PFCurveP1,PFCurvePF1)
(PFCurveP2,PFCurvePF2)
(P%)
INSTRUCTION:
The PF (P) Curve function is only available for IEEE-1547 grid
standards.
