27
b. Remove screws securing the bulkhead cover at the top of the
wiring box.

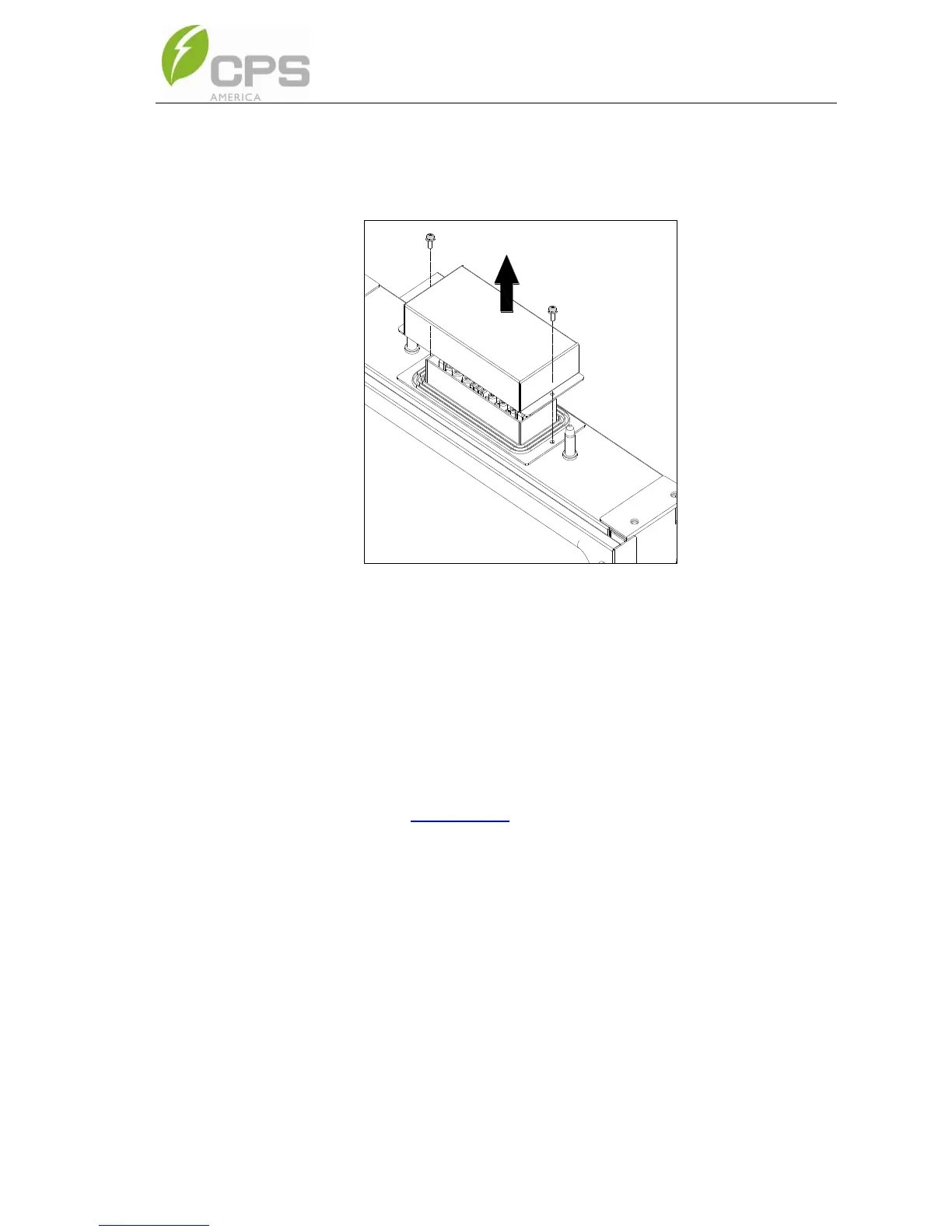

Figure 3-11 Wiring Bulkhead Cover
Save the bulkhead cover and screws, and attached the cover
to the left side of the wiring box after the wiring box is attached
to the inverter enclosure. Covers may be required in the future
if an inverter or wiring box is to be removed during servicing
(see step 6, Figure 3-14)
Tool required: No.2 Phillips head screwdriver
4. Secure the wiring box to the main enclosure by using the M6x18
screws (4pcs) to fasten the wiring box. (see Figure 3-12)
Tool required: No. 10 Wrench, torque value of 4 Nm (35.4in-lbs)
