CPS SCA50KTL-DO/US-480 - AC Output and Ground Cable Connection

56
For more details please see the user manual.

WARNING:
High touch current .
Earth connection essential before connecting supply.
1 2
AC Output:Use 90¡ãC wire, either 3~2/0AWG copper or
2~2/0AWG aluminum, torque 110 in-lbs.
AC Ground:Use 90¡ ãC co pper wire, 6-4AWG for internal
grounding bar or external grounding stud, torque 50 in-lbs.
L1 L2 L3 N
AC Output:Use 90¡ãC wire, either 3~2/0AWG copper or
2~2/0AWG aluminum, torque 110 in-lbs.
AC Ground:Use 90¡ ãC co pper wire, 6-4AWG for internal
grounding bar or external grounding stud, torque 50 in-lbs.
L1 L2 L3 N
The dimension limited
of lug terminal
24,5(max)
12,5(max)
21(max)
? 19(max)
? 8(min)
? 11,5(max)

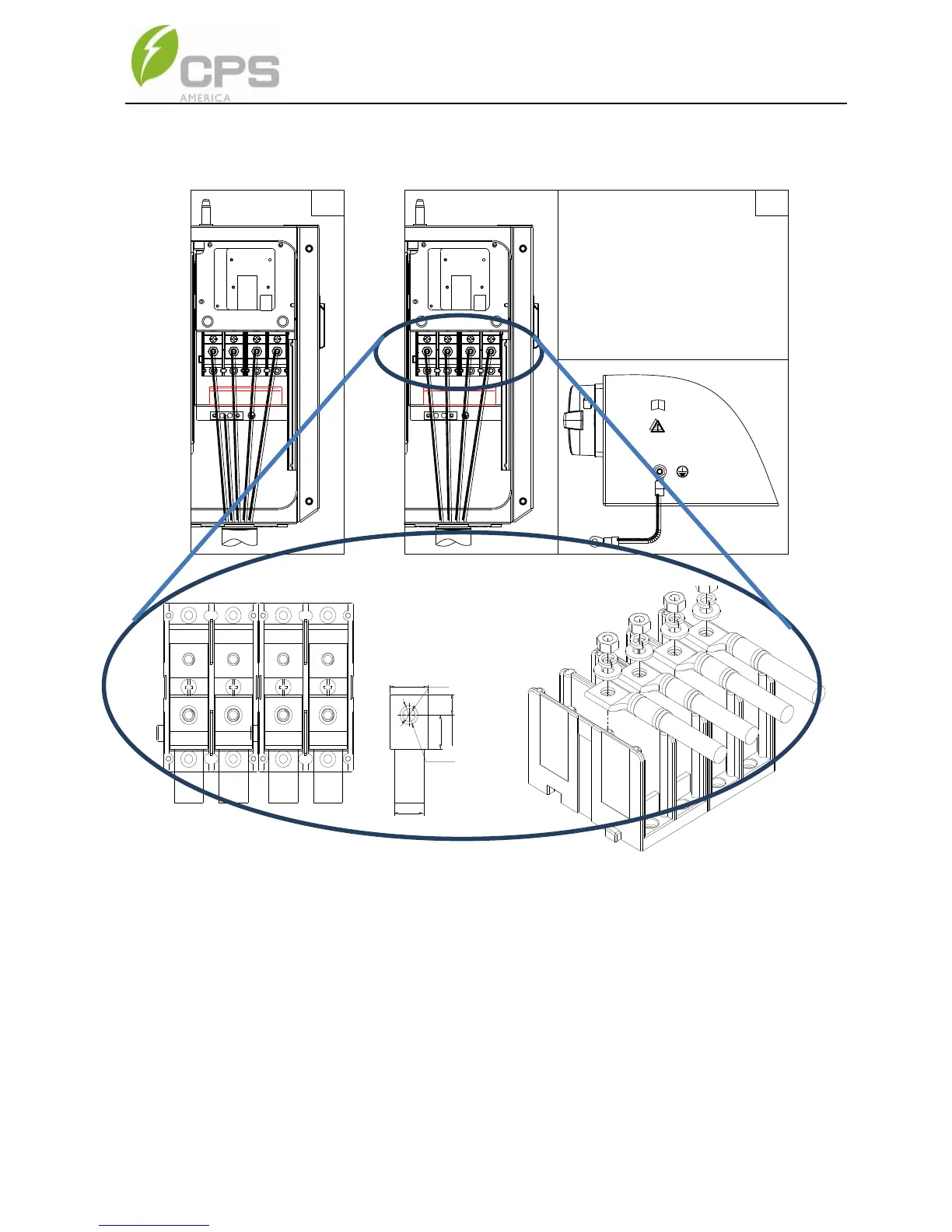

Figure 3-33 AC Output and Ground Cable Connection
