10 Culligan® Culligan Top Mount (CTM) Water Softeners
10 Cat. No. 01029401

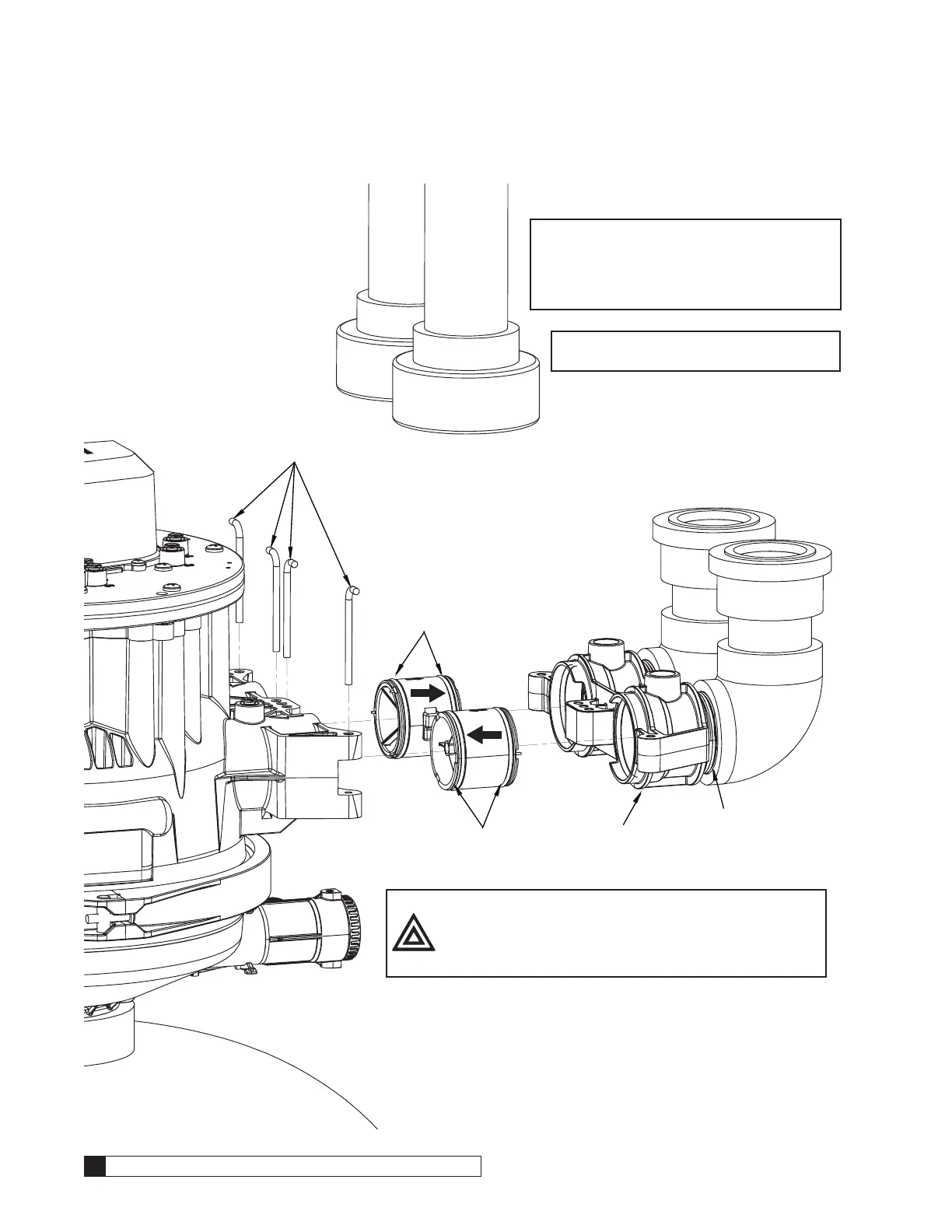

Plumbing Adapter
Figure 8.
Insert pins into the valve
body and adapter
Flow Meter
(Second coupling in
Timeclock models)
Lubricate o-rings
Lubricate o-rings
Coupling
1.5” or 2” Threads
Insert Plumbing Adapter
CAUTION! All sodering must be done on any
connections requiring soldering prior to
connecting the main control valve. The
main control valve will be damaged if it is
connected at the time of soldering.
NOTE Flow meters are not designed to
fit into the Timeclock models
NOTE The K-Factor of 18.7 Pulses/Gallon
(4.9 Pulses/Liter) is automatically
selected when CTM is selected as
the “Valve Type” during the “First
Time Setup”
