Pilot Valve Rebuild (Kit P/N 01029583)
Pilot Valve Disassembly
1. Bypass and depressurize unit (page 43)
2. Disconnect electrical connections and tubing

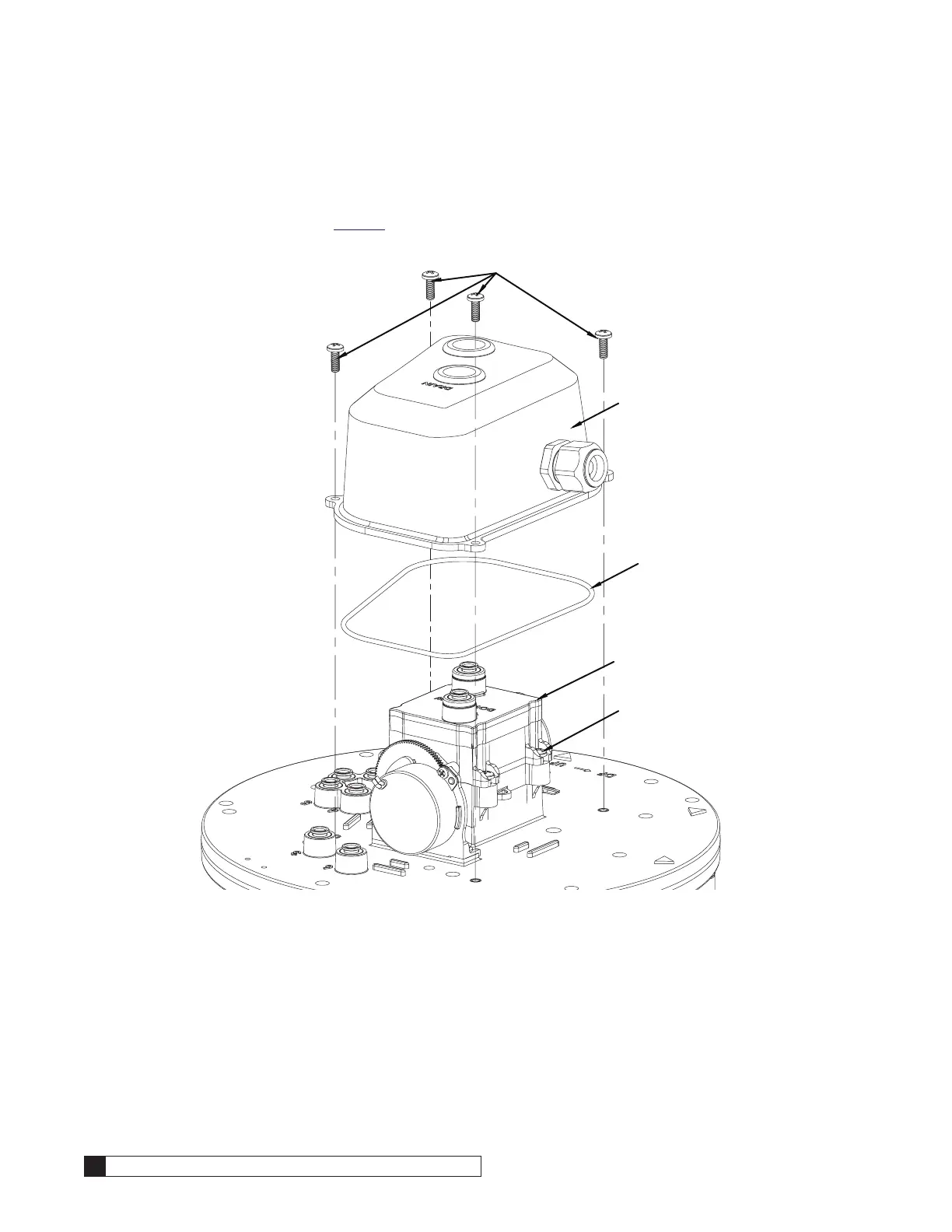

Figure 73.
8. Remove pilot valve
3. Remove #2 screws from enclosure
4. Remove enclosure
5. Remove o-ring
6. Remove four #2 screws from
top Pilot Valve clamp
7. Remove top clamp, while hold-
ing the pilot valve in place
