Installation 19
Cat. No. 01029401
Brine System Installation
NOTE The brine system is purchased as an optional item to allow the use of various brine tank sizes to better
suit the needs of the user.
The softener system is normally regenerated using a timed brine refill, dry or wet salt storage brine system. To properly
install the brine system, set the brine tank assembly in a convenient location for ease of service and refill of salt into the
brine tank.
Brine Piping
The softeners can be used with a variety of brine systems. Please refer to Table 7 on page 44 for sizing parameters.
Position the salt storage tank in a convenient location on a smooth surface. The brine valve should be at the rear to simpli-
fy removal of the tank cover.
If multiple softeners will be drawing brine from the same tank, connect the brine tubing from the brine fitting on each valve
to a union tee. (Supplied in Duplex Kit, P/N 01030437)

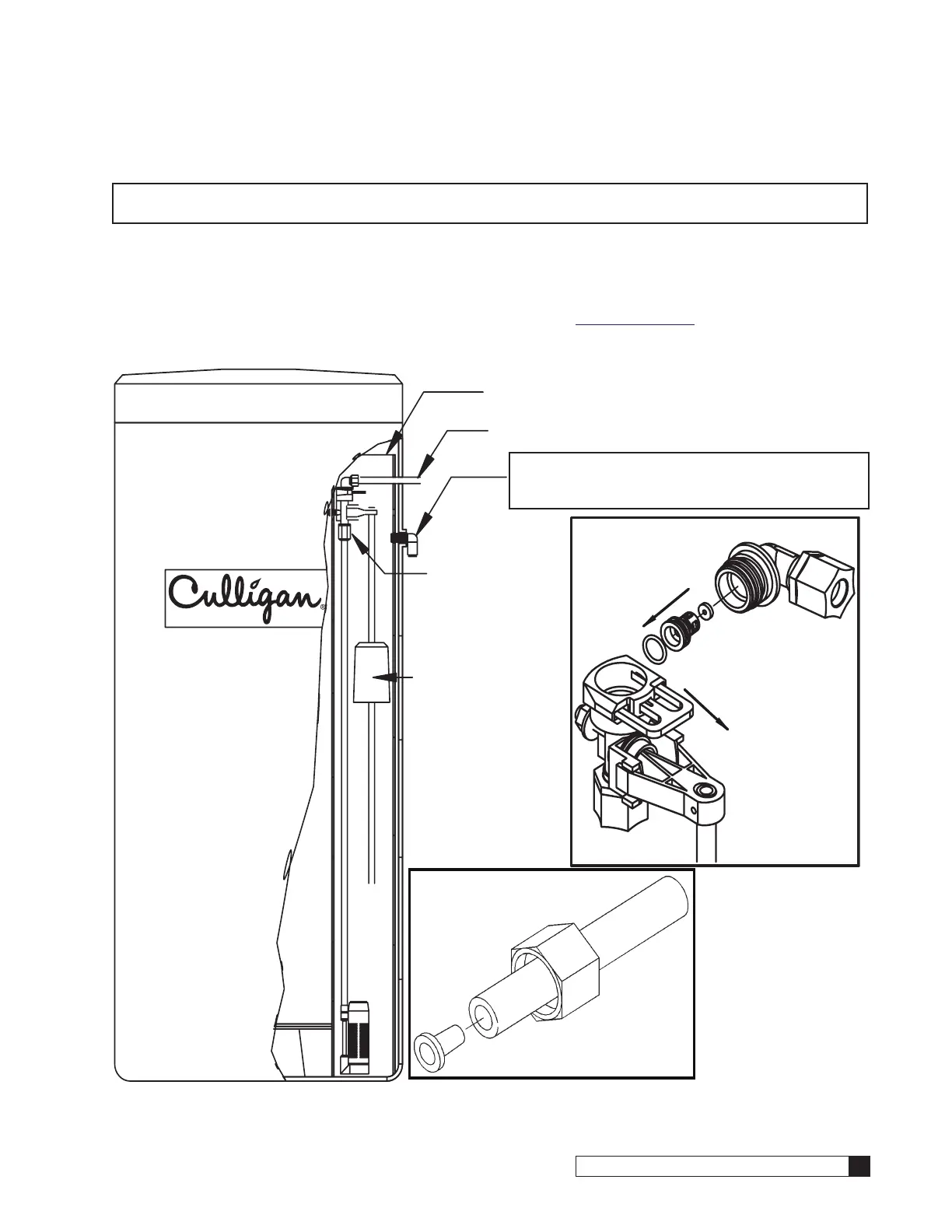

Figure 16. 1/2” Brine system.
1. Pull Brine Valve Clip
2. Remove 0.80 flow
control from brine
valve.
18x38 and 24x40 Brine Systems
NOTE Culligan recommends routing the overflow
to the drain line or a floor drain to prevent
damage to the facility.
Brine Chamber
Cut 1/2” tubing (not supplied) sufficient to reach control using
brine fitting.
Brine Valve
Adjust float assembly
to be just below the
overflow fitting as a
secondary shut-off to
the timed refill function
of the GBE controller
Brine Connection Tubing
To Next Page
