18 Culligan® Culligan Top Mount (CTM) Water Softeners
18 Cat. No. 01029401
Replacing the Brine Refill Flow Control Insert
Table 6. Brine Refill Flow Control
Model
60K 90K 120K 150K 210K 300K 450K 600K
Insert
Description
Standard
2 gpm* 2 gpm* 2 gpm* 2 gpm* 2 gpm* 2 gpm* 2 gpm* 2 gpm*
Fast Refill
N/A N/A
N/A 3 gpm 3 gpm 3 gpm 3 gpm 3 gpm
*Shipped assembled inside the control standard from factory
NOTE Refill flow rates based on 60 psi inlet/influent pressure and eductor combinations. The use of
the standard or fast refill brine refill flow control insert options will change the brine refill times
(see Table 8 on page 45).
NOTE Brine refill control inserts have molded identifiers: 2 gpm has 180 and 3 gpm has 250.
NOTE 18x38 and 24x40 brine systems may be used with 60k and 90k units; the 0.80 flow control must
be removed from the brine valve for proper operation. 120k and larger should use 3/4” or larger
brine valve.

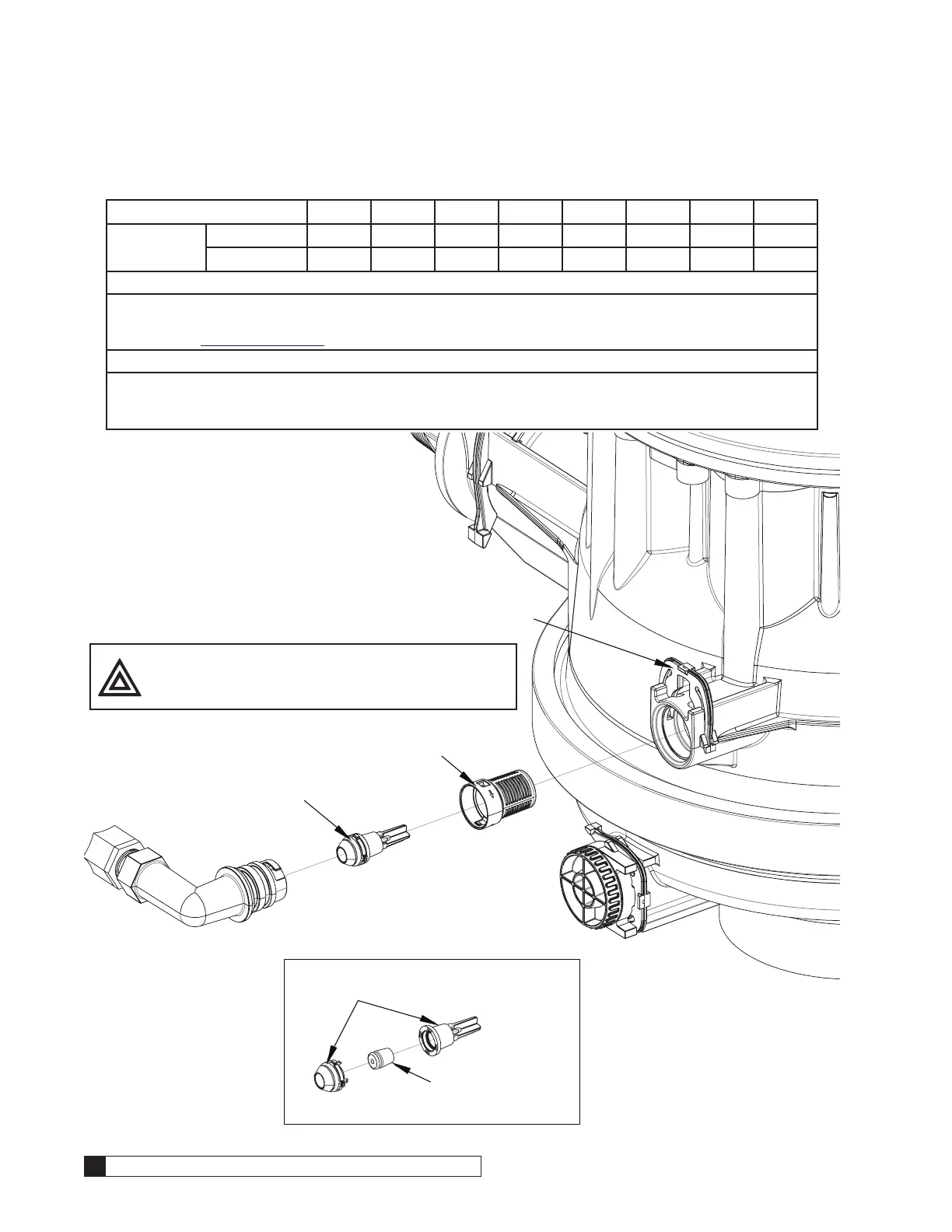

Figure 15. Brine Elbow Assembly
Twist to remove/attach
brine elbow screen
CAUTION! Clip was designed to stay attached to
the valve. Do NOT try to detach.
Pull/Push to detach/connect
brine refill control
Replace brine refill control
insert (see Table 6)
Pull to release brine elbow
assembly. Push to secure.
Remove/Insert brine refill
control from/into brine elbow
To Next Page
