CTM Parts List 89
Cat. No. 01029401
3/4” Brine Valve Subassembly

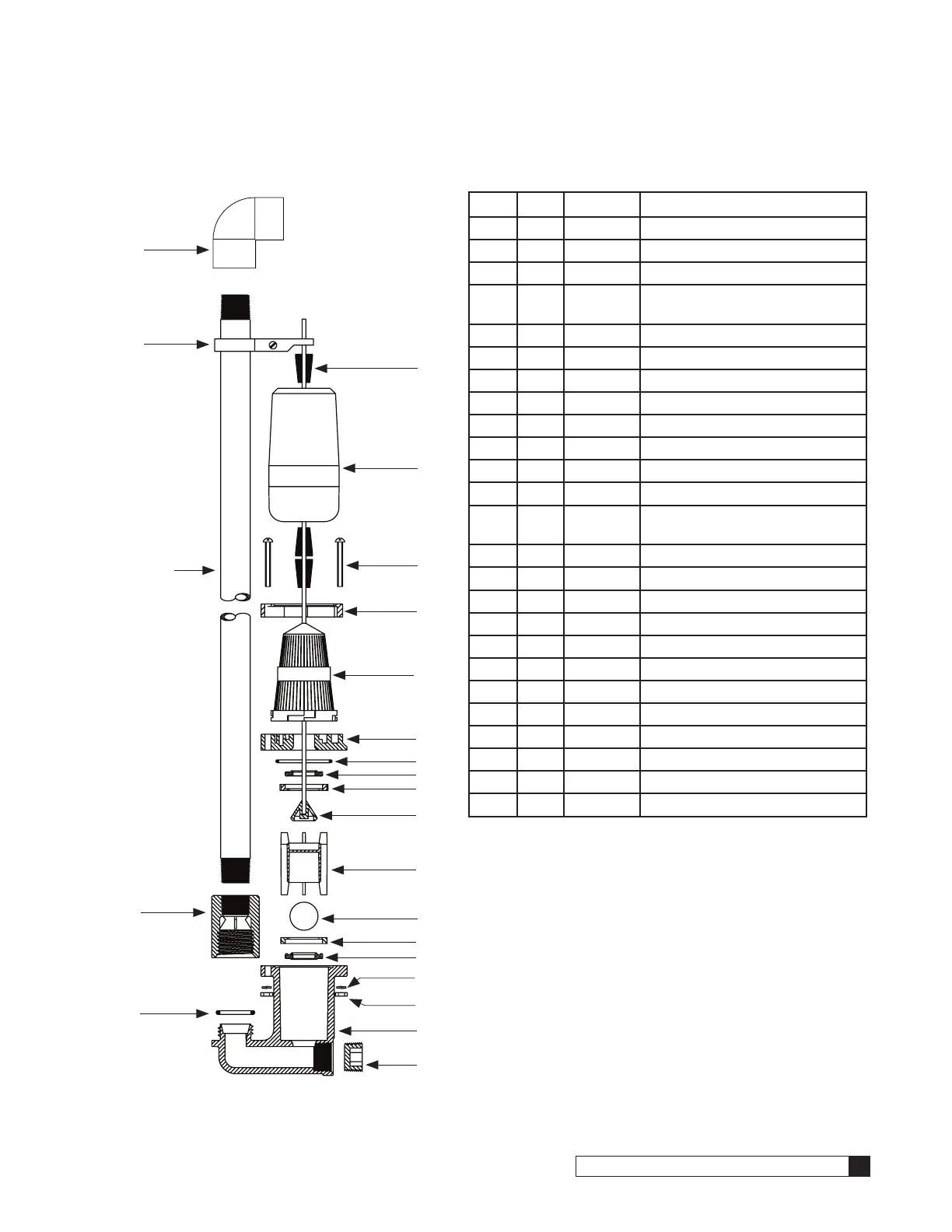

Figure 88. 3/4” Brine valve subassembly.
Item Qty. P/N Description
A
—
01029094 Brine Valve (3/4”), Replacement
B
—
01029095 Brine Valve Rebuild Kit
1 1
A
Pipe 3/4 x 42-1/4 PVC Sch 80 TxT
2 1
A
Elbow 3/4 Sch 80 PVC FIPT x
FIPT
3 1
A
Body
4 1
A
Plastic Plug 3/4”
5* 1
A, B
Seat Washer Top (Orange)
6* 1
A, B
Seat Washer Bottom (Clear)
7 1
A
High Flow Air Check Ball
8 1
A
Ball Cage
9 1
A, B
O-ring Cover Seal
10 1
A
Body Cover
11 1
A
Float Rod and Seat Cone Asy
- 36”
12 6
A
SS Lock Washer
13 6
A
SS Nut
14 3
A
High Flow Float Grommet
15 1
A
High Flow Float
16 2
A
Float Rod Guid Asy
17 1
A, B
Upper Seat Retainer
18 1
A
Refill Chamber
19 1
A, B
Lower Seat Retainer
20 1
A, B
O-Ring Refill Chamber Seal
21 1
A
Basket Diffuser
22 1
A
Retainer Ring
23 6
A
SS HF Screw
* Please note orientation of seals when disassembling and
reassembling.
2
16
one above and
one below float
1
3/4” Brine Tube
15
23
21
10
5*
11
8
7
20
19
6*
12
13
3
4
18
14
9
22
17
To Next Page
