Ported Plumbing Adapter
The ported plumbing adapter is installed onto the valve the same way as the standard plumbing adapter, see page 10
for instructions.
Figure 40.
Gauge and Sample Valve Kit (P/N 01029507)
This kit requires the use of a ported plumbing adapter (see above), 1/4” tubing (P/N 00303177 (1’ blue) or 00402184 (1’
black) and two 1/4” PI x 1/4” NPTE adapters (not provided). The gauge kit can be mounted on the wall, on the piping or
using the L-bracket it can be mounted under the GBE controller. (hardware is not included)

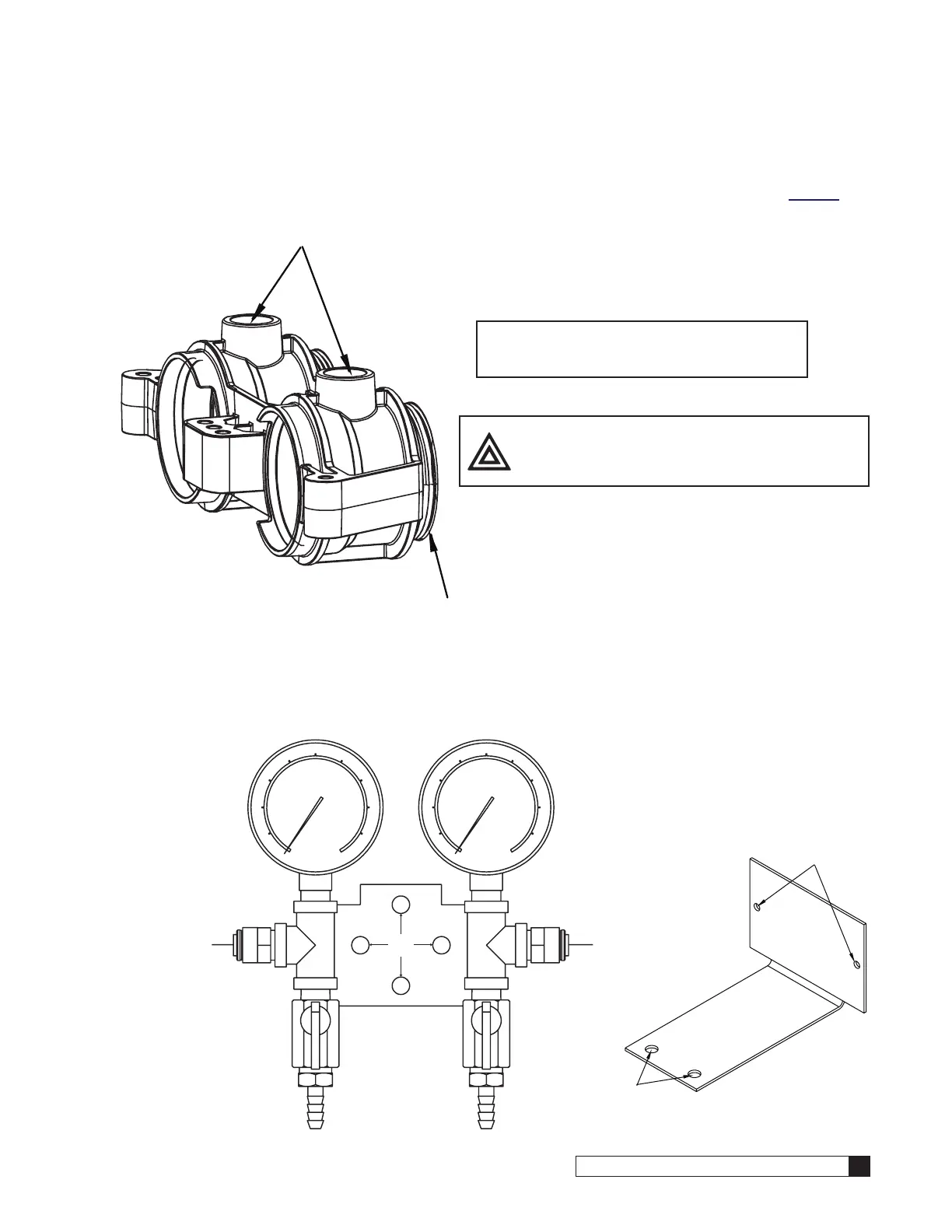

Figure 41.
NOTE Ports can be positioned upwards for
gauges or downwards for sample
valves.
1/4” NPT Internal Threads
1.5” or 2” Threads
L Bracket
1/4” Tubing to
inlet or outlet of
ported plumbing
adapter.
Connect to the
bottom of the
GBE controller.
1/4” Tubing to inlet or
outlet of ported
plumbing adapter
Connect to the
gauge kit.
1.5”
CAUTION! Do not over tighten fittings in the
port adapter. Over tightening can
damage the ports causing them to
leak.
To Next Page
