56 Culligan® Culligan Top Mount (CTM) Water Softeners
56 Cat. No. 01029401
T-Seal Replacement and Assembly
Figure 66.
For All 5 Large Pistons
For All 3 Small Pistons
For All 8 Pistons
CAUTION! Use the screws provided in the replacement kit. Do not reuse old screws!
1. Start each screw, flip valve back onto its side to fully hand tighten the screws into the piston, while holding the
rib on the top of the piston.
2. Move all valves into the upper position.

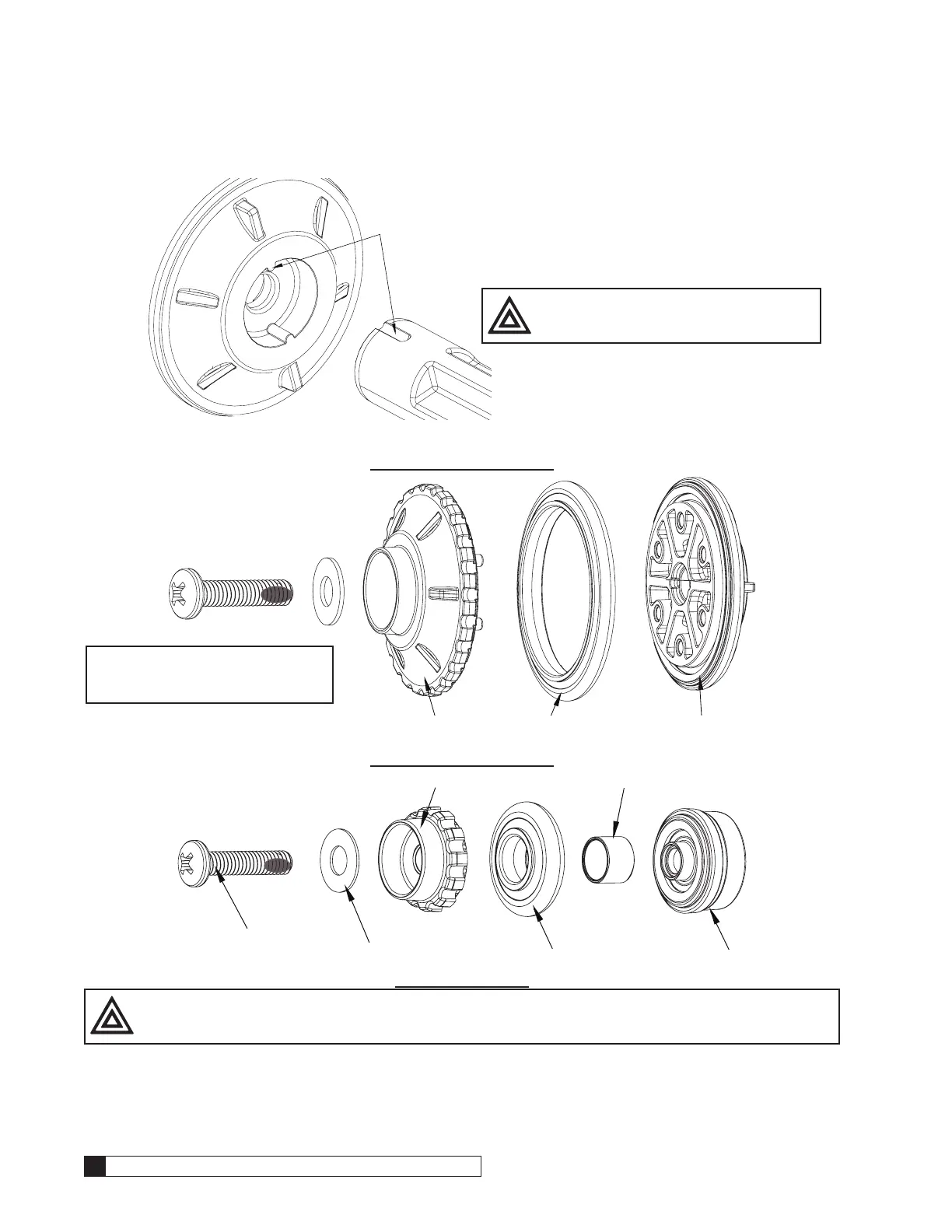

Figure 67.
Place flow valve assembly onto the piston and rotate until it locks into the
keyway alignment.
CAUTION! Do NOT lubricate T-Seals!
Replace T-Seal
Lower Flow Valve
Upper Flow Valve
NOTE Insert one piece at a time
into the valve to be certain
of their fit.
Replace #3 screws
Lower Flow Valve
Replace SS Insert
Replace T-Seal
Replace #2 screws
Washer
Upper Flow Valve
To Next Page
