4 Culligan® Culligan Top Mount (CTM) Water Softeners
4 Cat. No. 01029401
CTM Dimensions
Table 2. CTM Dimensions (inches)
Model
60K
90K 120K 150K 210K 300K 450K 600K
Overall Depth
19.6 24 24 24 24 24 30 39
Overall Width
43 50 50 52 55 58 69 83
Overall Height (A)
65.5 73.5 84.7 85.4 85.5 94 95.7 102
Plumbing Height (B)
54.1 62.1 73.3 74 74.1 82.6 84.3 90.6
Tank Height (C)
47 55 66.2 67 67 75.5 77.2 83.6
NOTE Overall dimensions assume systems include an optional, standard size brine tank.
NOTE Allow a minimum of 12" above the overall system height for access into the top of tank(s).

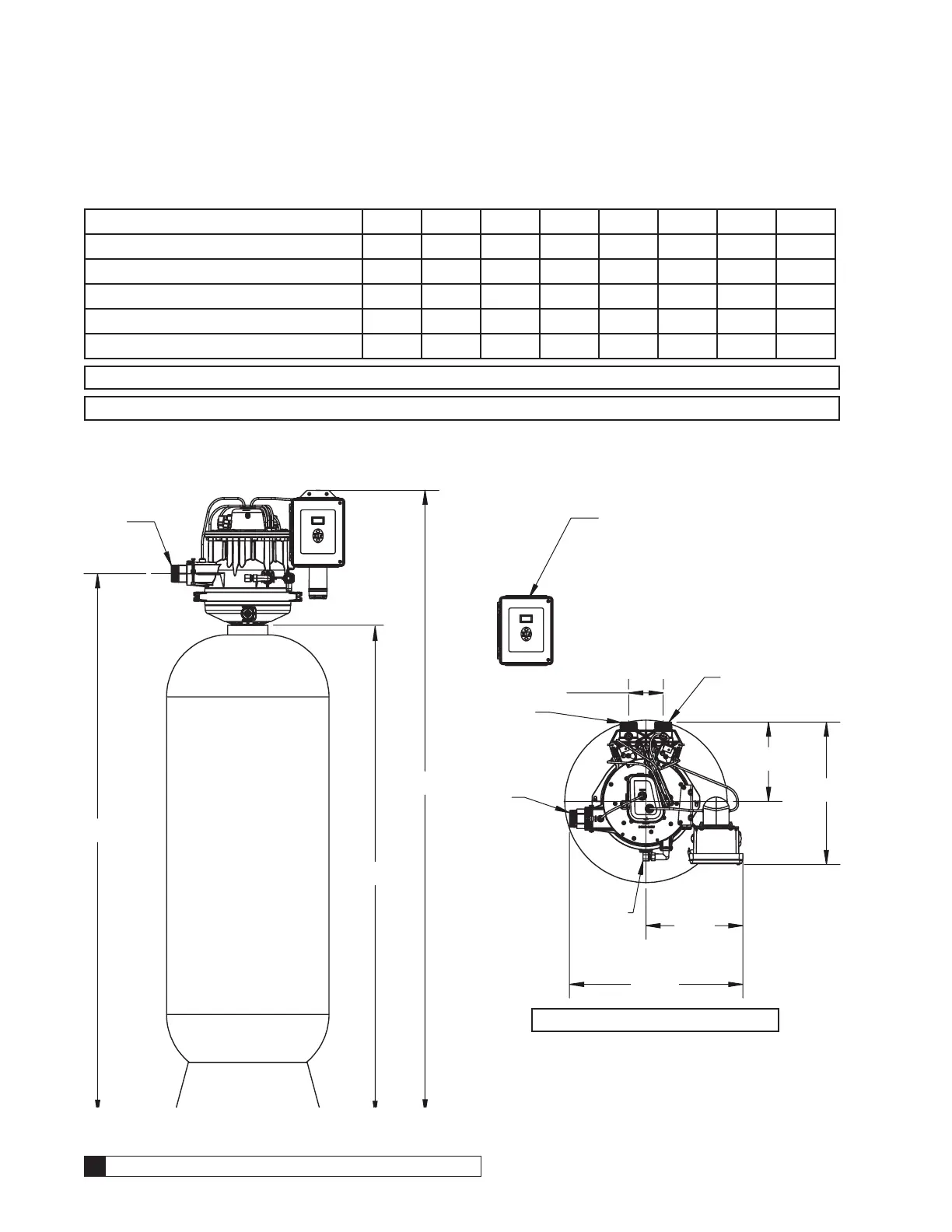

Figure 1. Overview
Controller can be wall mounted
Drain
A
Drain
B
C
Inlet
4.75”
Outlet
11”
19.6”
Brine
13.3”
23.8”
NOTE Dimensions for all models
