Installation 17
Cat. No. 01029401
Eductor Nozzle and Throat Replacement
Table 5. Eductors
Model
60K 90K 120K 150K 210K 300K 450K 600K
Throat
Blue #3 Blue #3 Blue #4* Blue #4* Blue #4* Blue #5 Blue #8 Blue #8
Nozzle
Black Black Violet* Violet* Red White Blue Beige
*Shipped assembled inside the control standard from factory
4

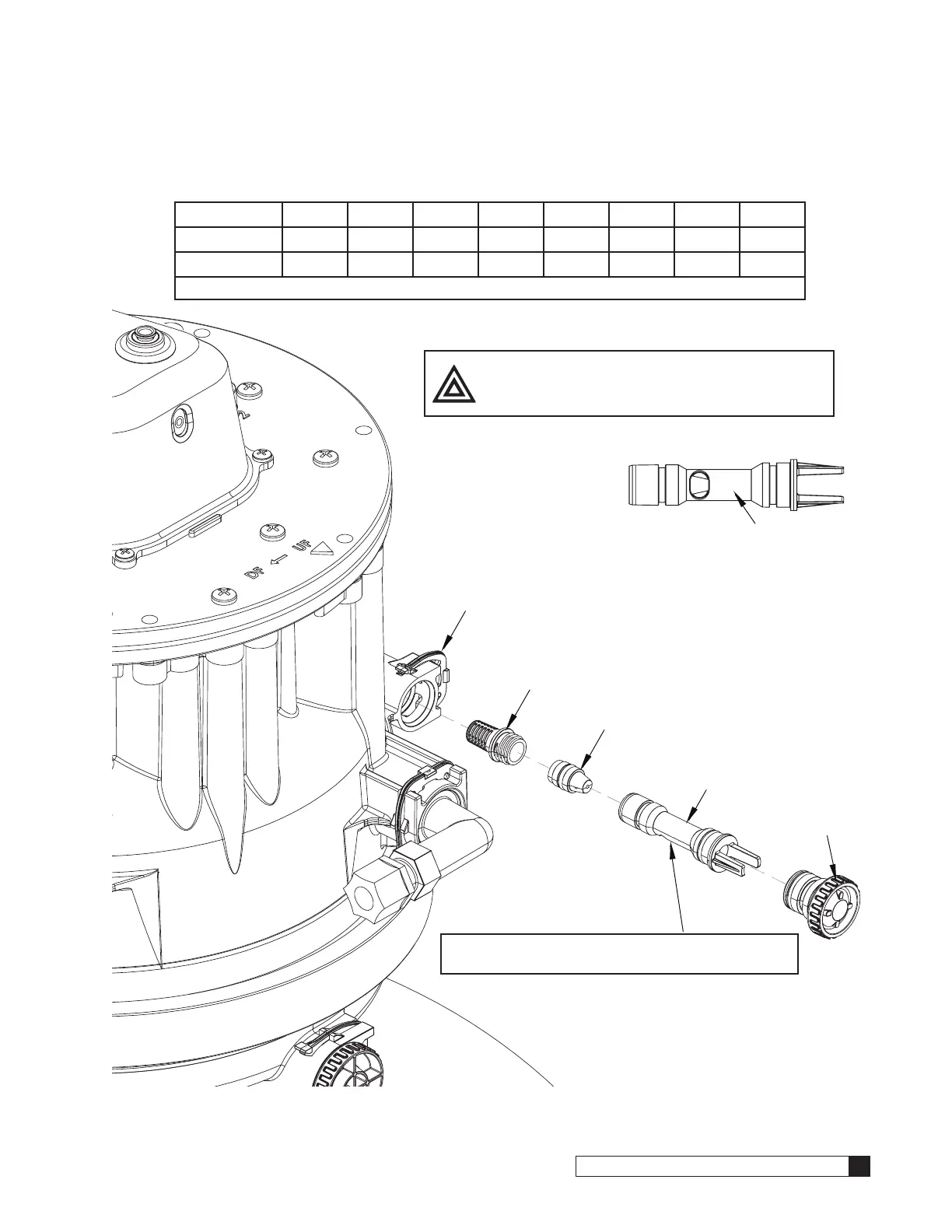

Figure 14.
NOTE Brine uptake is optimized when opening in
the eductor throat is facing down.
CAUTION! Clip was designed to stay attached
to the valve. Do NOT try to detach.
Pull to release plug
Push to secure
Twist off to access nozzle
Remove with pliers. See Table 5
for correct eductor nozzle
Remove with pliers. Lubricate
o-rings. See Table 5 for correct
eductor throat.
Lubricate o-rings.
Insert fully to
secure.
Eductor Throat Number Location
To Next Page
