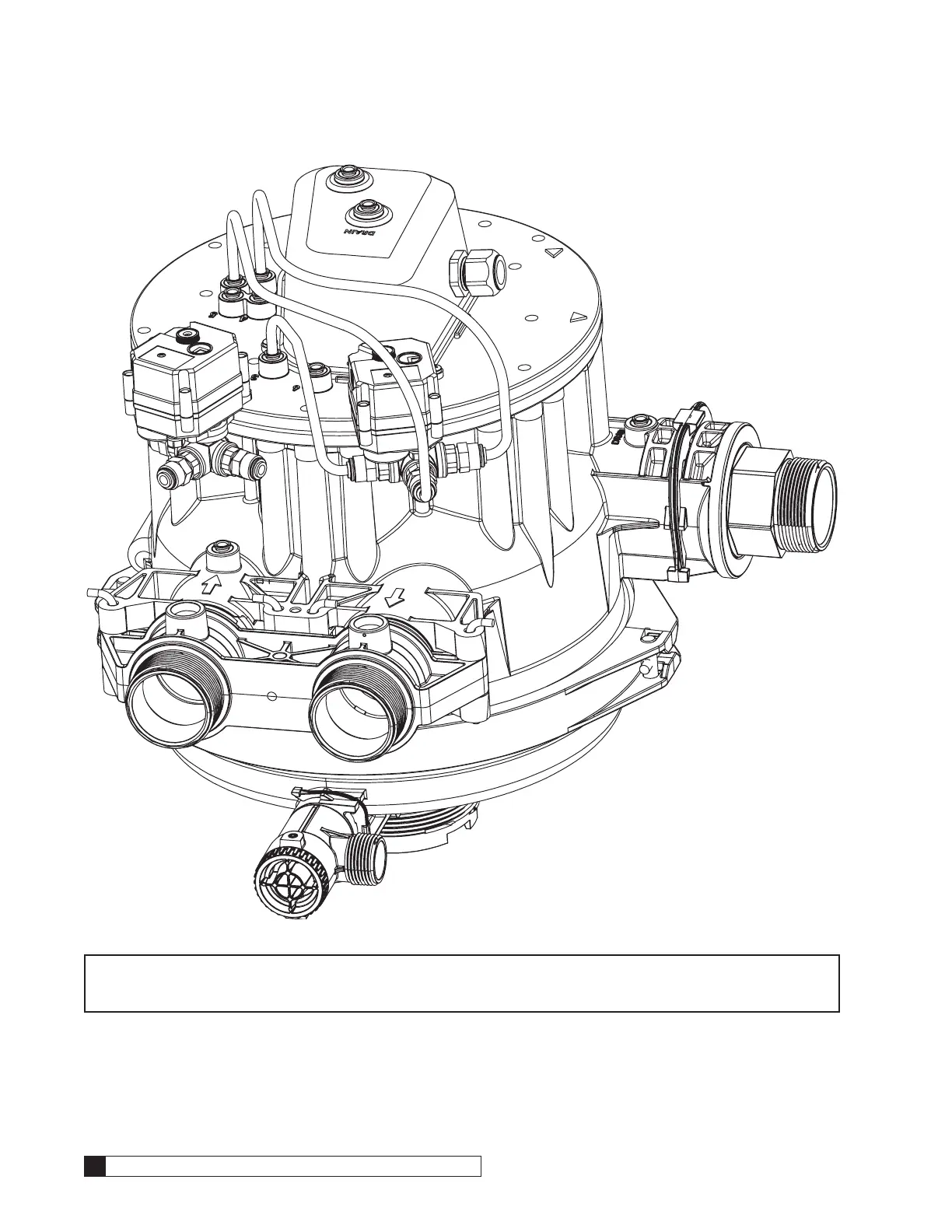

Figure 31. Tubing to Ball Valve #2 (Ports 1, 2, 3) (Multi-Tank Softeners Only)
NOTE At least 35 psi dynamic pressure must be maintained for the pilot to hold the proper piston position. If
the unit falls below this amount, even during the regeneration cycle of another unit, the system will not
operate as expected.
For the tubing connections, match up the
number ports. 1-1, 2-2, 3-3, etc...
3
4
Feed
5
6
3
5
2
1
Drain
1
2
4
6
