Service and Repair 57
Cat. No. 01029401
Reassemble Manifold

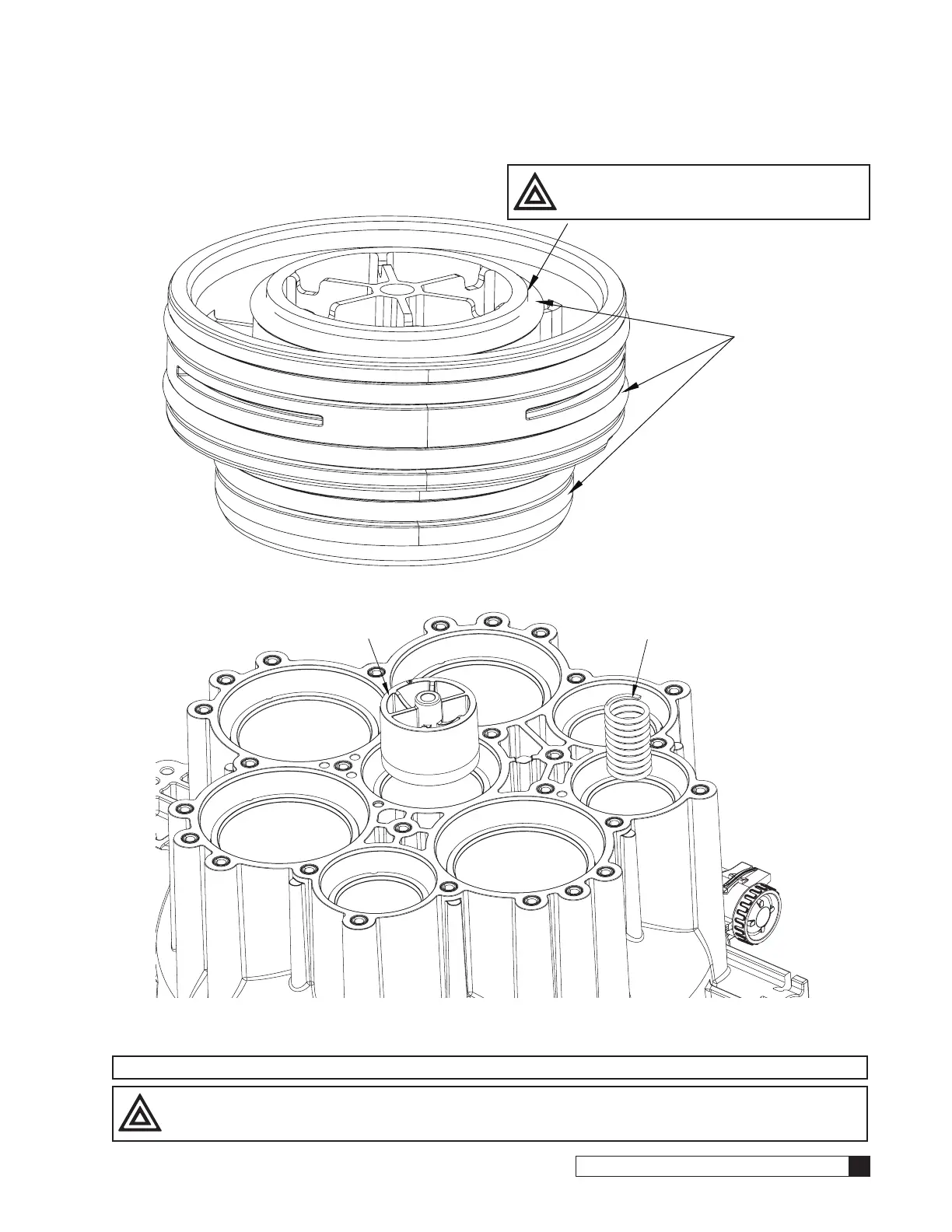

Esure all couplers are inserted in the top manifold
Figure 68.
Figure 69.
Secure top manifold assembly to valve body with 16 #3 screws
NOTE Screws will need to compress the top manifold to valve body with resistance from refill spring.
CAUTION! Do not overtighten the screws. It will not prevent a leak, but it could likely loosen the
imbedded insert.
CAUTION! Make sure, this o-ring is in
place and not on the top
manifold for all couplers (8)
Lubricate all o-rings
on all couplers (8)
Reinsert refill spring
Reinsert non-hardwater
bypass plug (if applicable)
To Next Page
