12 Culligan® Culligan Top Mount (CTM) Water Softeners
12 Cat. No. 01029401
Suggested Piping Installation
CAUTION! Make sure that the plumbing connections to the inlet and outlet are all securely fas-
tened using items, such as pipe hangers, clamp, etc, to prevent damage to the valve.
The plumbing connections should also allow for 1/4” of movement.
NOTE Interconnecting pipe and fittings, bypass valves and isolation valves are not supplied.

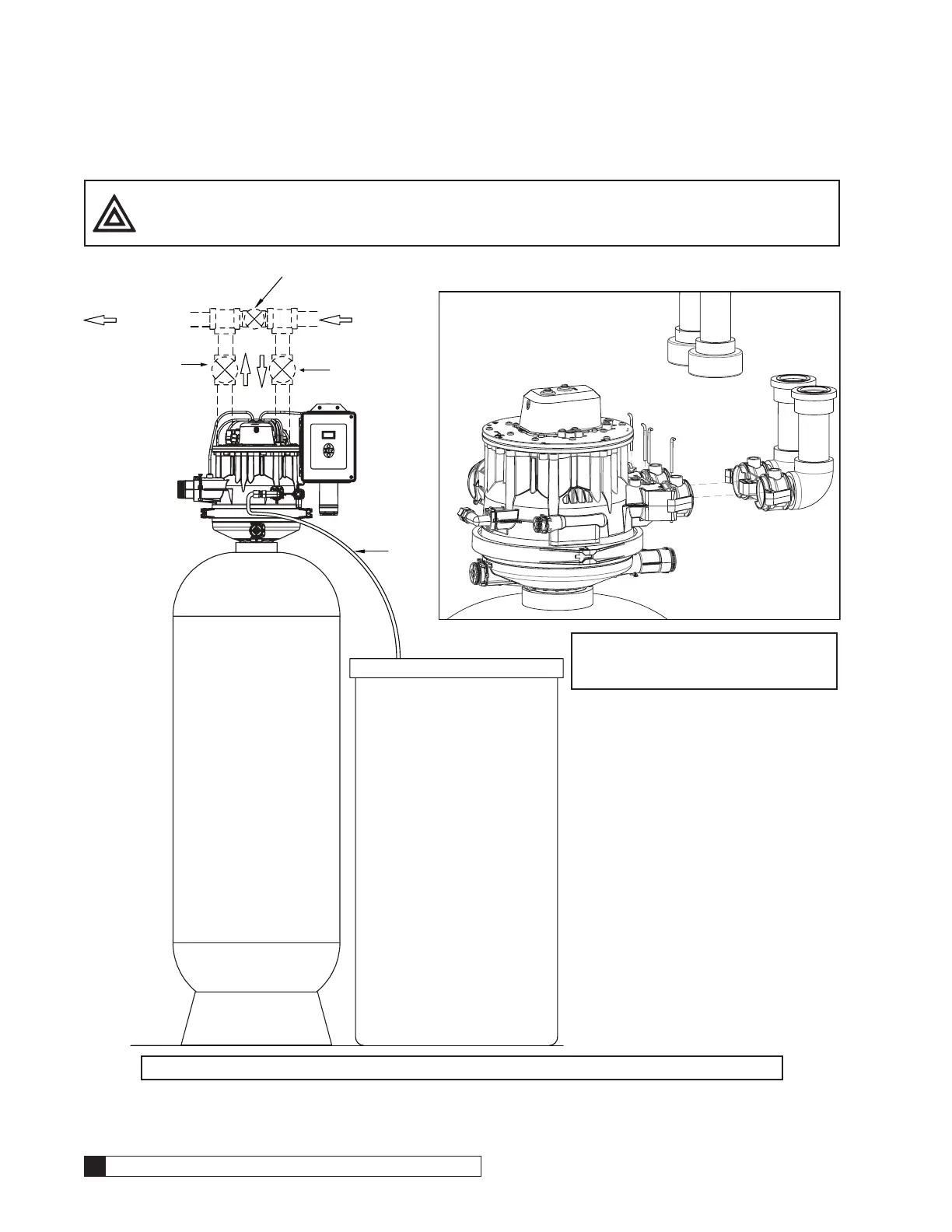

Figure 9. Three-Valve Bypass CTM Single Tank Piping.
Bypass Valve (Normally Closed)
Soft Water
Manual Outlet
Valve
Hard Water
Manual Inlet
Valve
1/2”
Brine
Line
Inlet/Outlet
NOTE Connecting piping must al-
low the valve to be removed
without interference
To Next Page
