Installing Accessories 29
Cat. No. 01029401

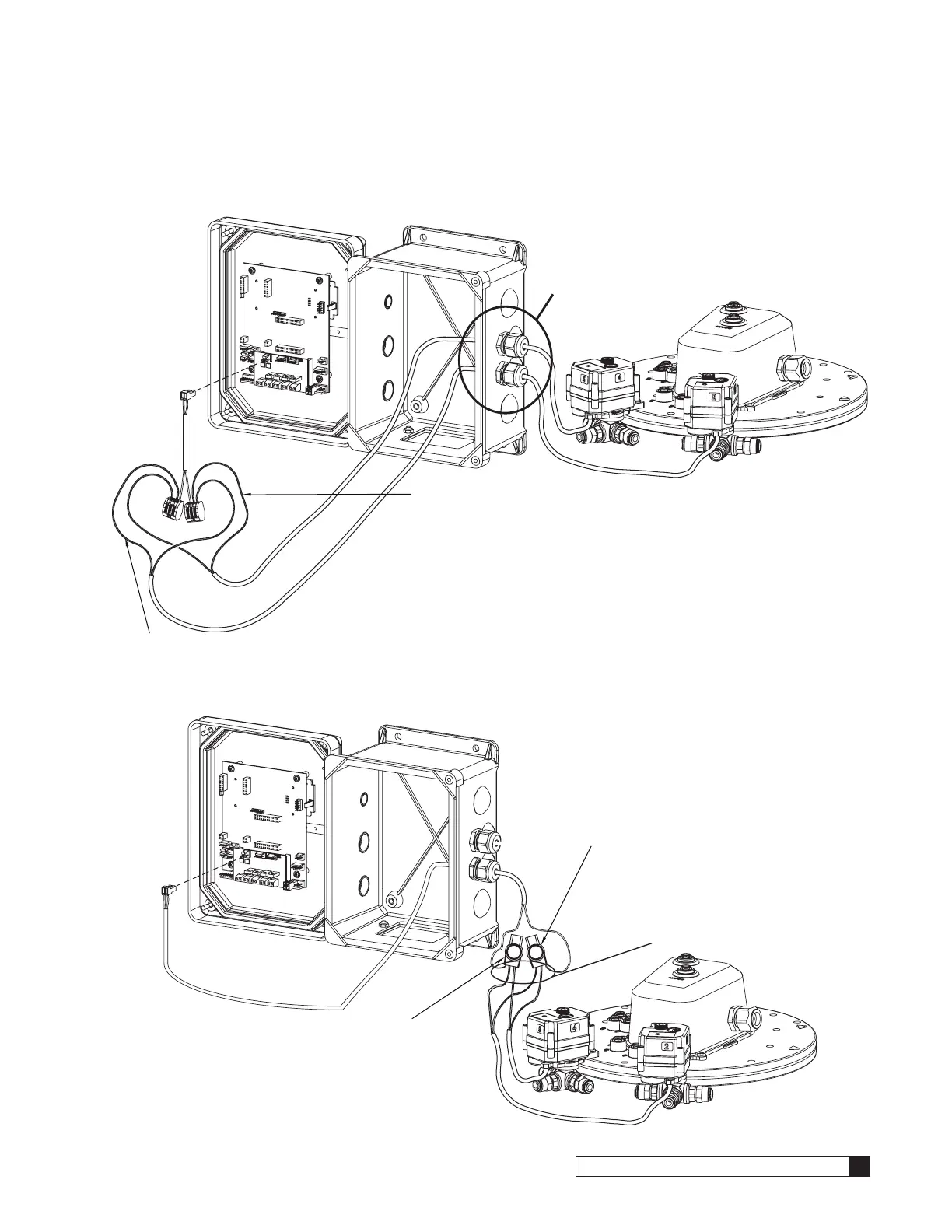

Wiring for Multi-Tank Systems
Motorized Ball Valves, Valve Mounted Controller
Figure 32. Ball Valve Wire Harness, Valve Mounted Controller
Motorized Ball Valves, Wall Mounted Controller (Optional, Two are included in 01030101)
Figure 33.
Black wires from both ball valves
go to the black wire from the harness.
Each ball valve cable should go
through its own cord grip
Red wires from both ball valves go
to the red wire from the harness.
Red wires from both ball valves go
to the red wire from the harness.
Clip off the stripped part of the wire
BEFORE inserting into the water tight
connector. Softly press the round center to
securely make the connection.
Black wires from both ball valves go to the black wire
from the harness.
To Next Page
